Metal Laser Cutting Service
Get custom laser‑cut parts with ultra‑fast turnaround, available in as little as 1 day. Standard 3‑day lead times are also offered to suit your project schedule.

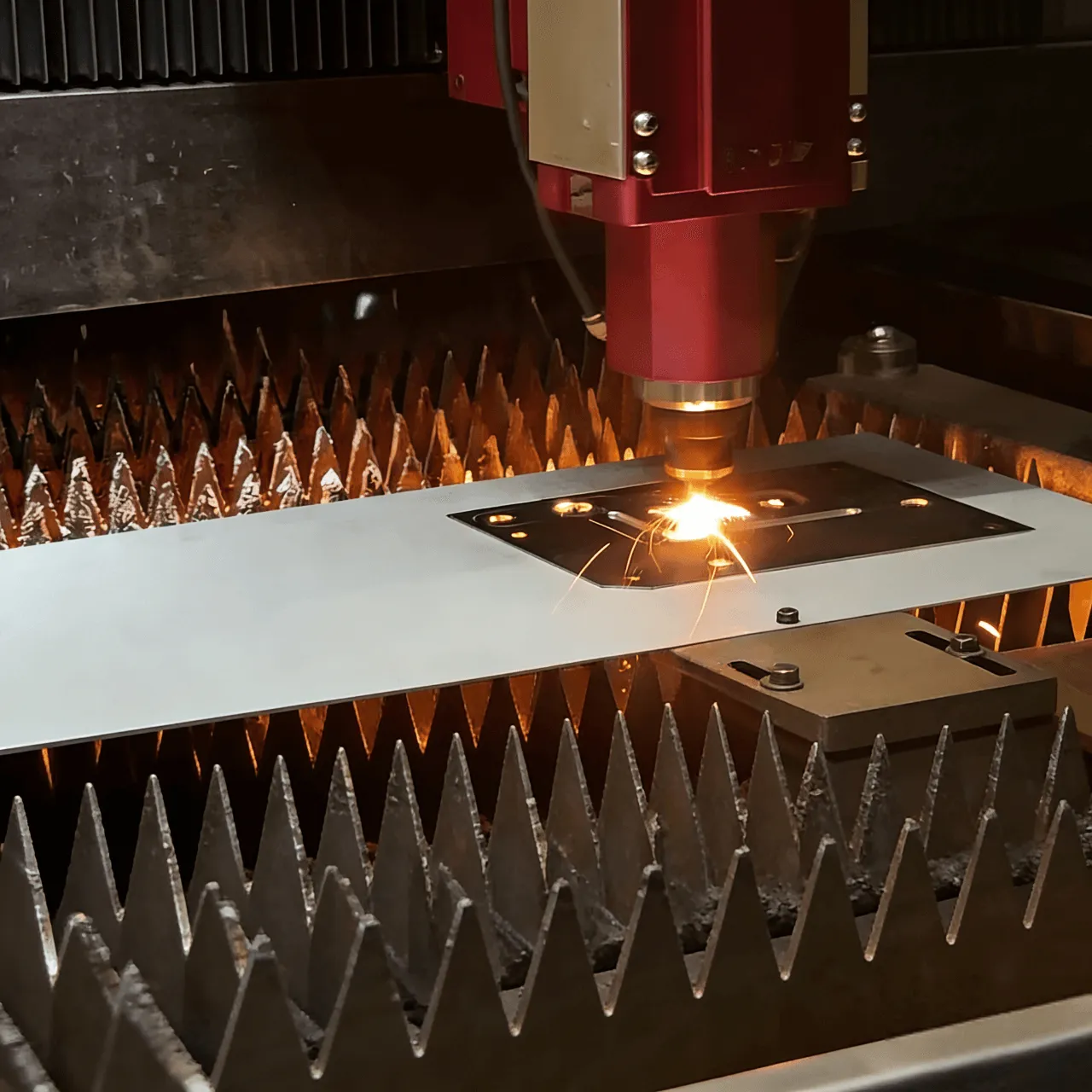

Laser cutting is a manufacturing process that uses a focused laser beam to cut through raw sheet materials, creating precise flat geometries. It supports a wide range of metals, making it suitable for components such as washers, mounts, brackets, and housings.
Laser cutting is commonly used for:
· prototyping designs or testing product requirements
· efficiencies of scale up to 50+ parts
· parts with standard connectivity features (USB, HDMI, ethernet ports)
Design Guidelines
| US | Metric | |||
| Maximum Size | Thickness 0.134 - 0.250 in.: 39 in. x 19 in. | Thickness 3.40mm - 6.35mm: 990.6mm x 482.6mm | ||
| Thickness 0.024 in - 0.134 in.: 39 in. x 47 in. | Thickness 0.61mm- 3.40mm: 990.6mm x 1,193.6mm | |||
| Minimum Part Size | 0.25 in. x 0.25 in. | 6.35mm x 6.35mm | ||
| Material Thicknesses | 0.024 in. - 0.250 in. | 0.61mm - 6.35mm | ||
| Tolerances | +/- 0.005 in. for all features (except for hardware holes) | +/- 0.127mm for all features (except for hardware holes) | ||
| +0.003/-0.000 in. on hardware insert holes to ensure correct seating of inserts | +0.076mm/-0.000mm on hardware insert holes to ensure correct seating of inserts | |||
Materials and Thicknesses
| Material | Material | Service | ||
| Aluminum | · 5052-H32 ·6061-T6 | 0.025 in. - 0.250 in. (0.635mm - 6.35mm) | ||
| Steel | ·CRS/HRPO ·Galvanneal ·Galvanized | 0.025 in. - 0.250 in. (0.635mm - 6.35mm) | ||
| Stainless Steel | ·304-2B ·304 #4 ·316-2B | 0.025 in. - 0.250 in. (0.635mm - 6.35mm) | ||
| Copper | ·C1010 ·C1100 | 0.025 in - 0.125 in. (0.635mm - 3.175) | ||
| Brass | ·C260 | 0.025 in. - 0.125 in. (0.635mm - 3.175) | ||
Our Ideas Have Helped Clients Bring Hundreds Of Products To Market
Applications for Laser Cut Parts
Laser cutting is a widely used manufacturing process across industries including energy storage, computer electronics, robotics, and aerospace. Typical parts produced via laser cutting include:
✔️ flat patterns
✔️ face plates
✔️ washers
✔️ mounting plates
✔️ panels
