Low-Volume Aluminum Prototypes With Production-Ready Planning

Fast Response For A European Client

A European client recently came to Mastars with a small batch of aluminum prototype parts. The request was straightforward: they needed the parts quickly, but they also needed the machining, anodizing, and inspection to be handled properly, so the project could move into the next validation stage without losing time.

On the surface, it was a prototype order. In practice, the parts were not simple. They had curved surfaces, bosses, threaded holes, internal cavities, and several machined openings. The key was not only to make the shape, but to keep the holes, threads, mating surfaces, and functional interfaces stable after CNC machining, anodizing, and assembly preparation.

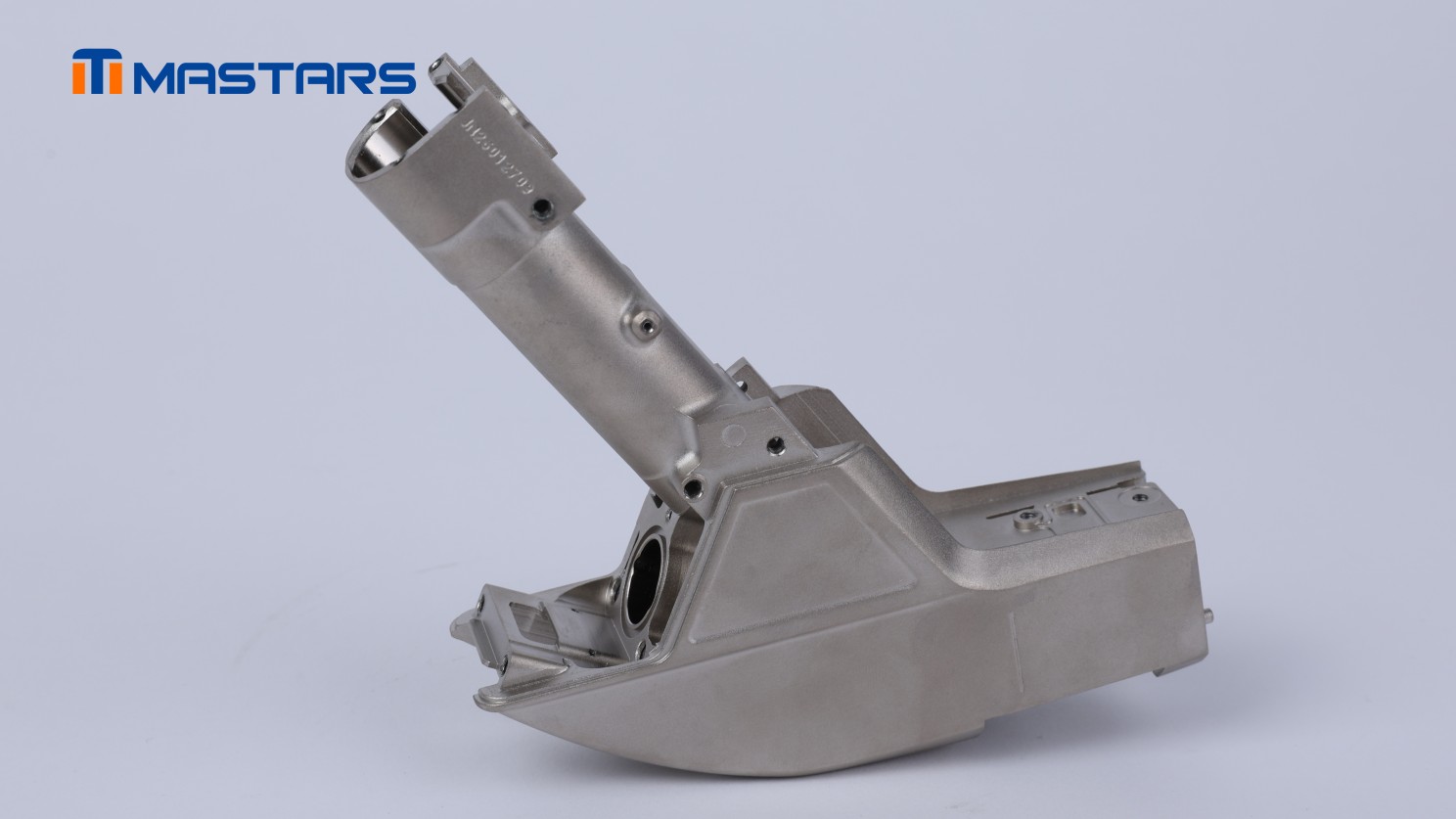

Side view showing integrated mounting slots and curved housing profile.

From DFM To Anodized Finish

Before cutting metal, Mastars reviewed the part with both short-term delivery and future production in mind. The team checked the machining datum, clamping direction, tool access, machining sequence, allowance, deburring areas, anodizing requirements, and inspection points. For this type of metal structure, one small choice in fixturing or machining order can affect how the part fits later.

The final route connected DFM review, CNC machining, deburring, surface preparation, anodizing, and inspection. CNC machining was used to control the key holes, threads, mating faces, and assembly datums. Anodizing helped create a more consistent surface finish and improve surface protection. Final inspection focused on dimensions, threaded features, appearance, and functional interfaces. This was not just about finishing one prototype batch. It was also about giving the client a cleaner path for later low-volume or production transfer.

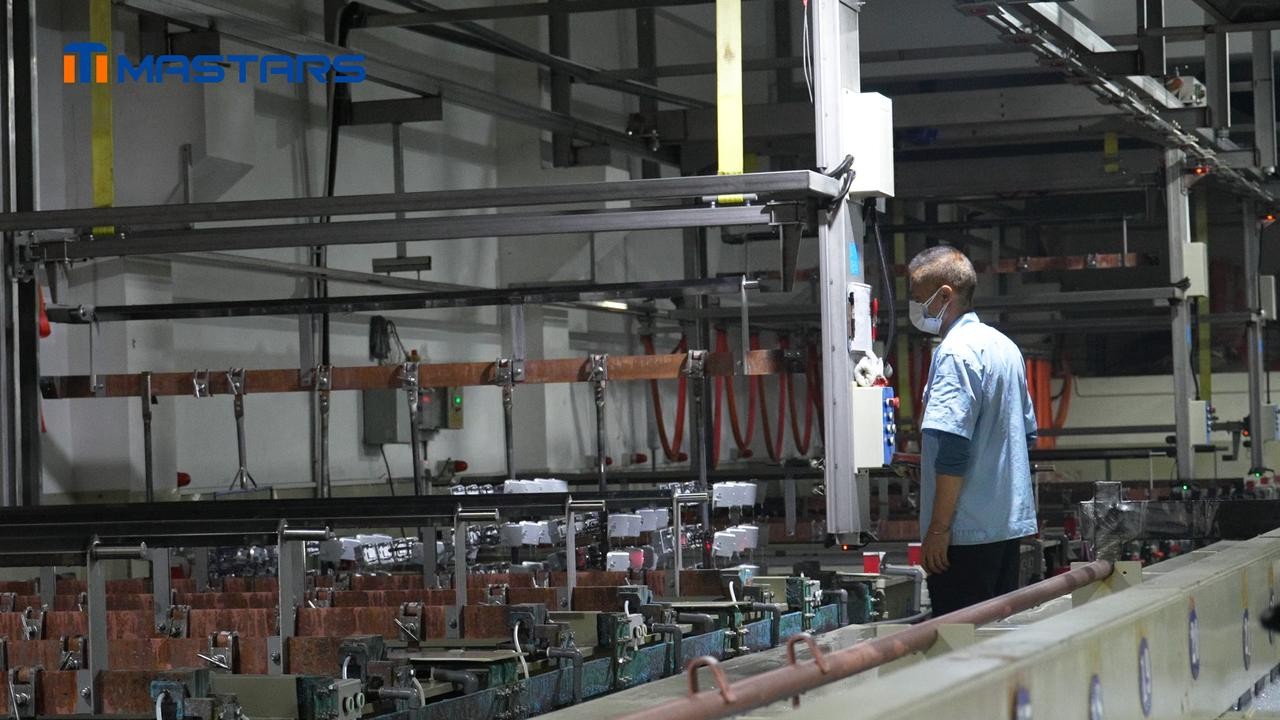

Operator monitoring automated aluminum surface finishing production line.

What This Changed For The Client

Client core value: Mastars helped the client finish the prototype batch faster while reducing uncertainty for the next production stage. Improvements in the following aspects can also be observed:

✅ Process preparation time was shortened by about 3 weeks.

✅ The first batch of 20 aluminum parts was completed within 7 working days.

✅ Selected machined interfaces were controlled within ±0.05 mm.

✅ The full 20-piece batch kept a consistent anodized finish.

✅ Coordinating machining, anodizing, and inspection together reduced communication workload by about 50%.

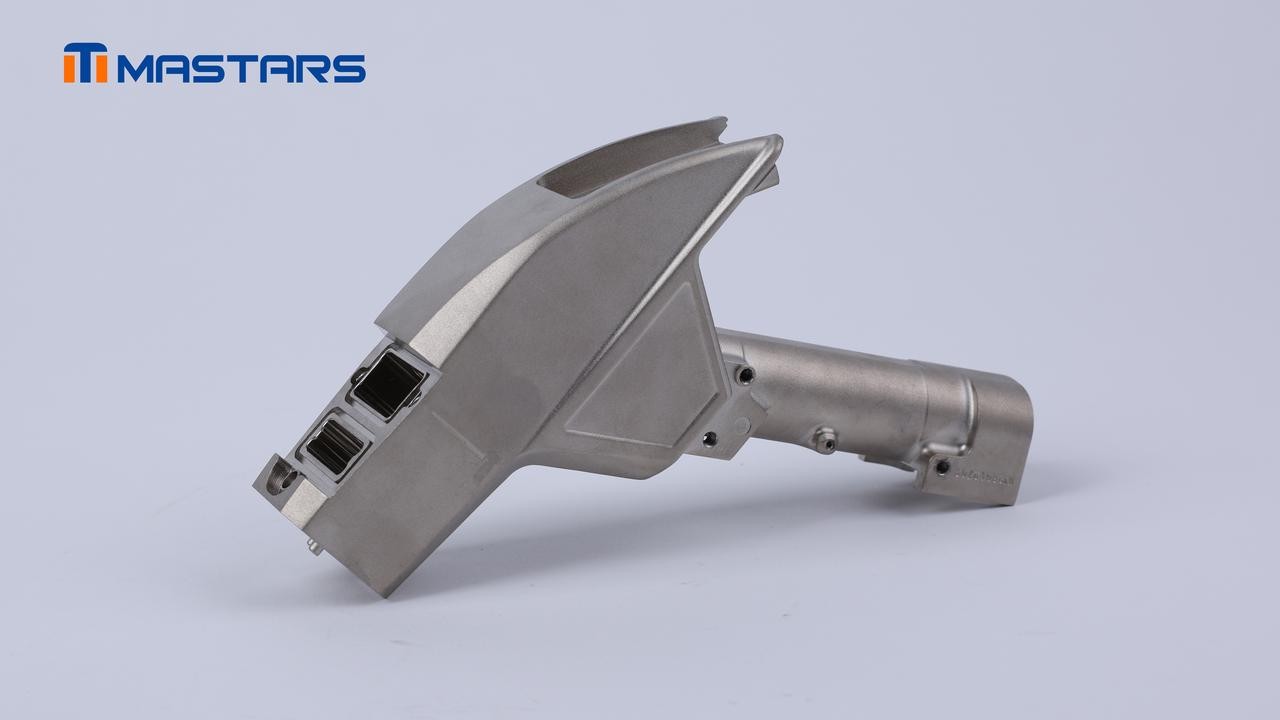

Complex aluminum prototype with precision-machined interfeaces and tubular.

Bring Similar Metal Parts Forward

This kind of challenge appears in many industries. A metal part may need to support structure, connect with other components, keep a clean surface finish, and still be ready for later production planning after the prototype stage.This manufacturing process is also applicable to:

• Robotics — actuator support housing
• Industrial equipment — sensor mounting body
• Mobility products — structural connector bracket
• Medical devices — instrument support frame
• Consumer electronics — internal metal carrier

Are you developing a metal housing, bracket, or structural part with complex geometry, CNC-machined interfaces, and anodized surface requirements? Send your drawings or early design files to Mastars. We can support DFM review, prototype machining, surface treatment coordination, inspection planning, and future production preparation.
