Zinc Die Casting
with Mastars
Custom high-precision Aluminum Die casting, Zinc Die Casting, Maganesium Die casting prototypes and parts, as fast as 7 days.

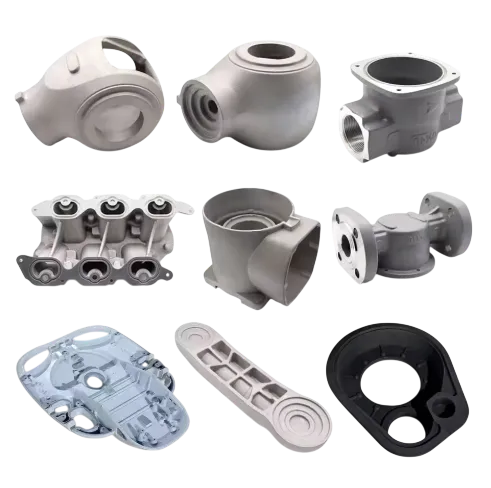

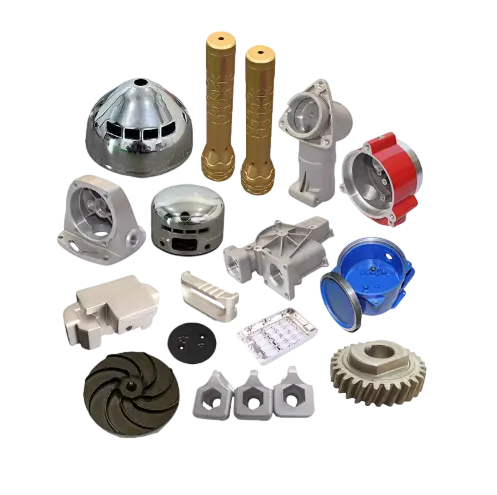

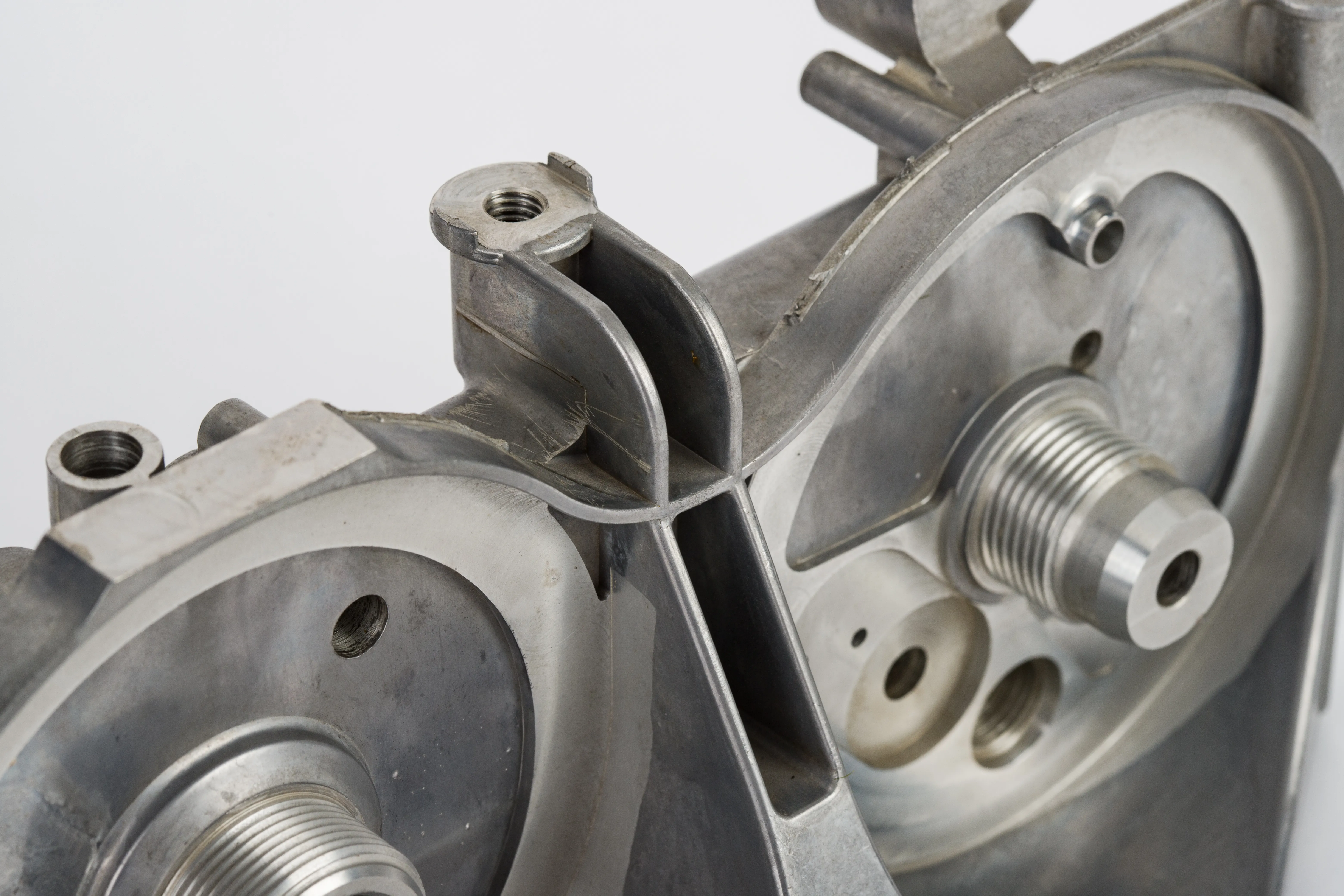

One-stop Zinc Die Casting Manufacturer
With 18 years of expertise in China’s zinc die casting sector, we provide full zinc alloy solutions including ZAMAK and ZA alloys. ZAMAK alloys excel in castability and cost efficiency for budget-sensitive projects, while ZA alloys offer superior strength and wear resistance for high-performance applications.

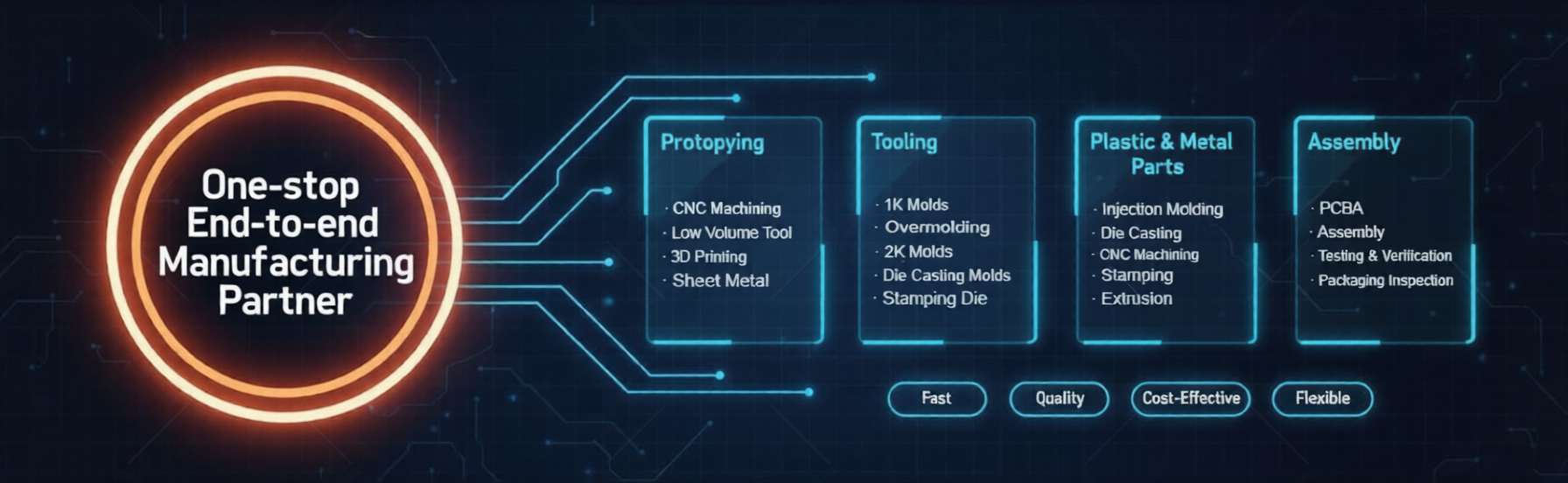

Our core advantage is one-stop end-to-end production—covering rapid prototyping, precision mold making, die casting and surface finishing. We also deliver tailored die casting solutions, fine-tuning every detail to meet clients’ exact functional and specification requirements.

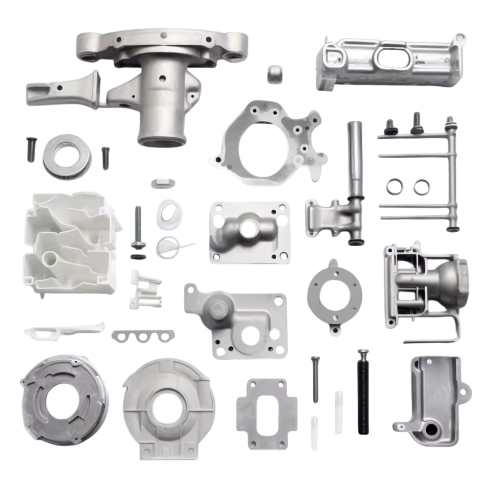

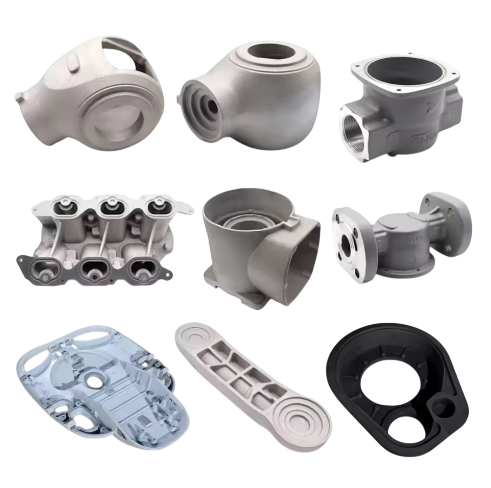

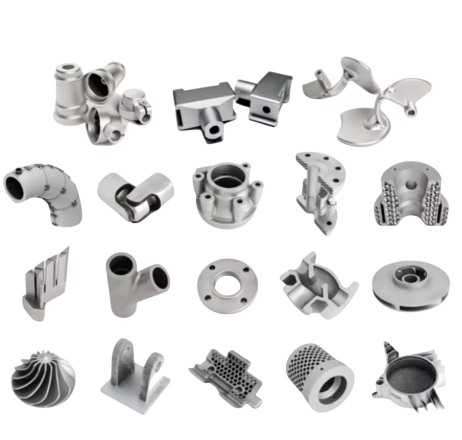

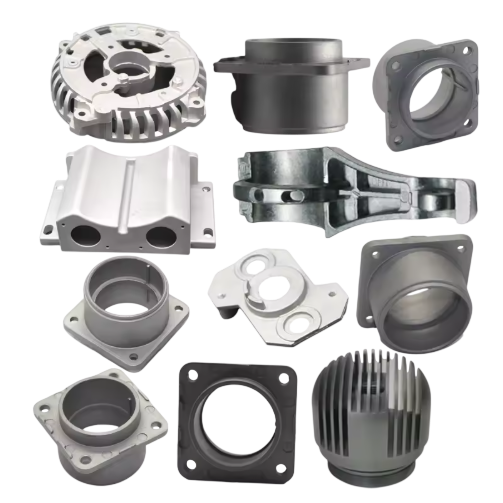

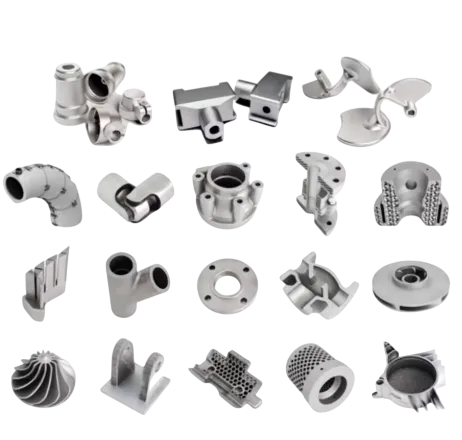

Applications of Zinc Die Casting

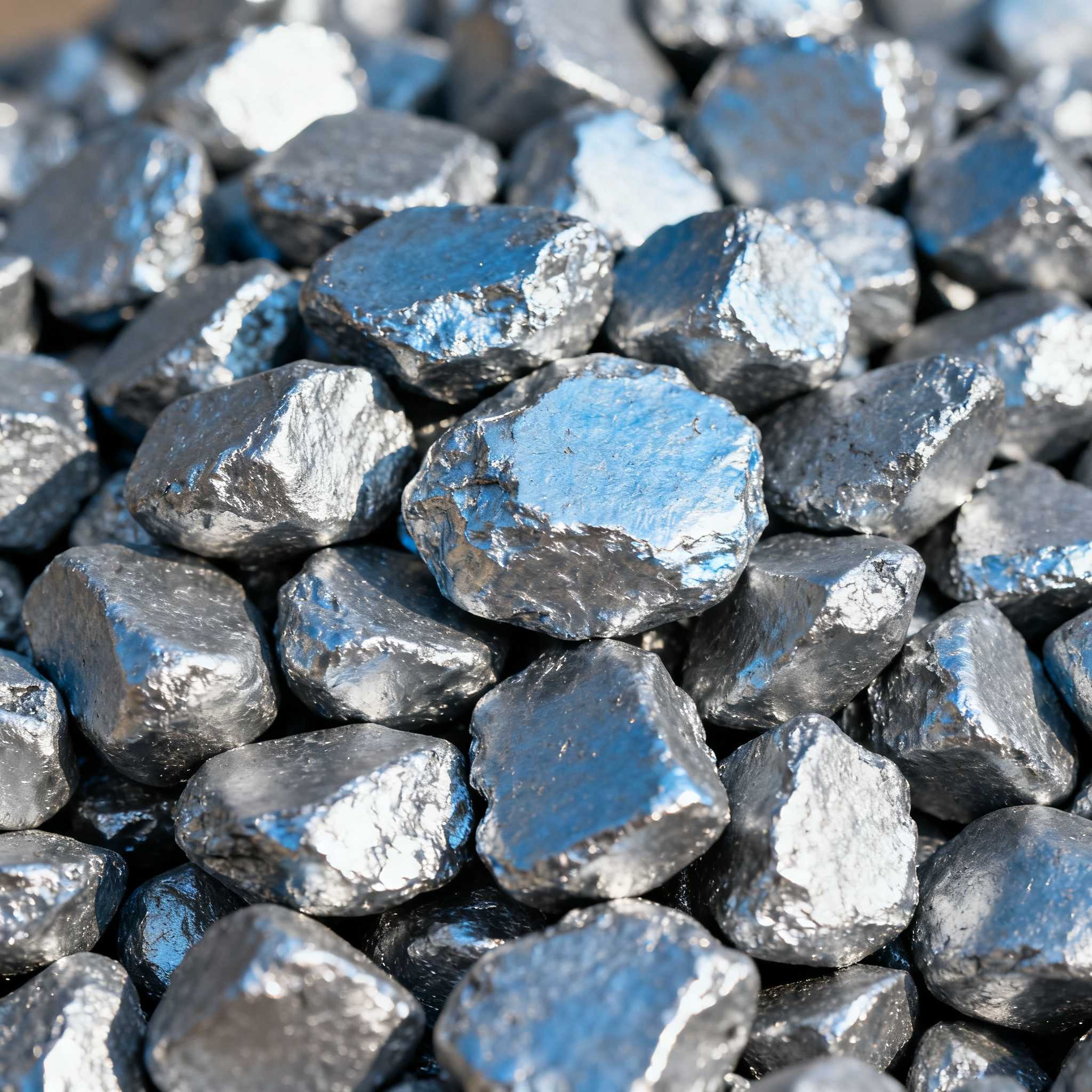

Typical Casting Zinc/Zamak Alloys
| Zinc/Zamak Alloys | Applications | Aliases | Tensile Strength (MPa) | Yield Strength (MPa) | Fatigue Strength (MPa) | Elongation (%) | Hardness (HB) | Density (g/cm³) |
| Zamak 3 | General-purpose die casting, automotive parts, hardware | ZA-3 (US), ZL3 (EU) | 260-310 | 200-240 | 100-150 | 1-3% | 80-100 | 6.60-6.70 |
| Zamak 5 | Electronics, automotive components, decorative parts | ZA-5 (US), ZL5 (EU) | 270-340 | 210-250 | 110-160 | 2-4% | 85-110 | 6.60-6.70 |
| Zamak 2 | High-strength applications, automotive parts, hardware | ZA-2 (US), ZL2 (EU) | 350-400 | 250-300 | 130-180 | 1-2% | 90-120 | 6.70-6.75 |
| Zamak 7 | Precision die casting, thin-walled parts | ZA-7 (US), ZL7 (EU) | 220-270 | 180-220 | 80-120 | 1-2% | 75-95 | 6.65-6.75 |
| Zamak 8 | High-performance applications, automotive, appliance parts | ZL8 (EU) | 240-300 | 190-230 | 100-140 | 2-3% | 80-100 | 6.60-6.70 |
| ZA-8 | High-strength structural components, automotive parts | ZL8 (EU) | 340-410 | 250-300 | 130-180 | 2-3% | 95-120 | 6.70-6.75 |
| Zamak 12 | Automotive, machinery, general-purpose parts | ZL12 (EU) | 240-300 | 190-230 | 100-140 | 2-3% | 85-100 | 6.60-6.70 |
| Zamak 27 | High-performance applications, industrial components | ZL27 (EU) | 340-380 | 250-300 | 130-180 | 3-4% | 90-120 | 6.65-6.70 |
| Zinc-Aluminum | Structural parts, industrial and automotive parts | ZAMAK 27A | 300-380 | 220-270 | 120-170 | 2-3% | 90-115 | 6.60-6.75 |

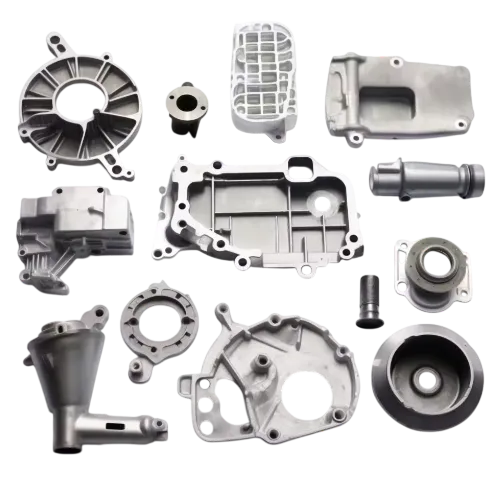

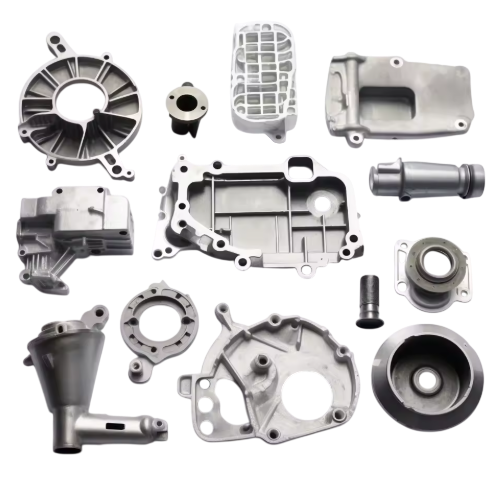

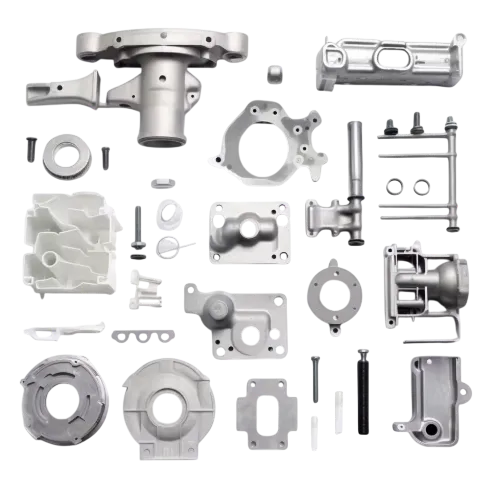

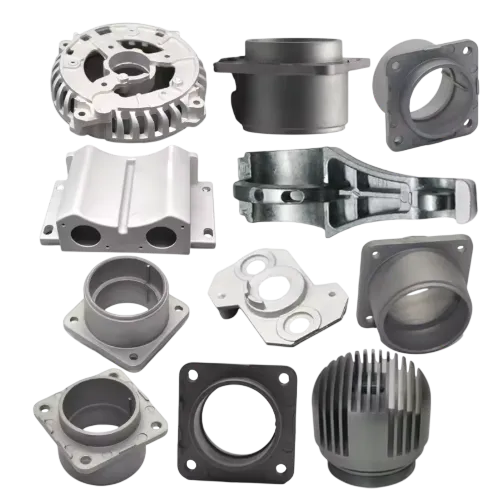

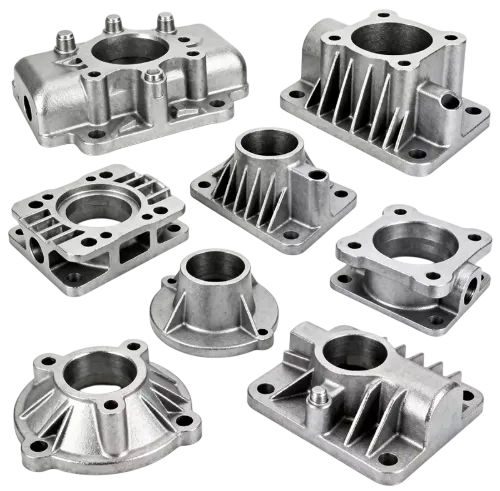

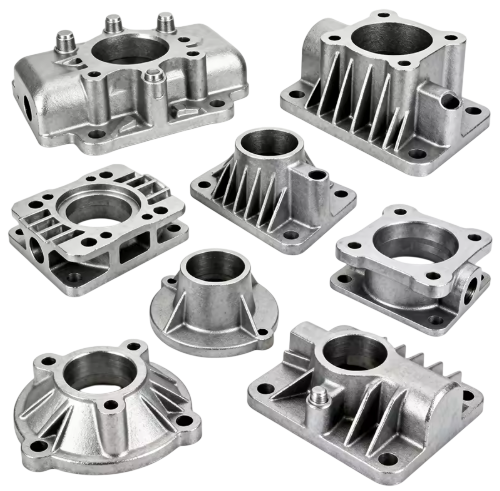

Zinc Die Casting Applications
✔️ Automotive Industry

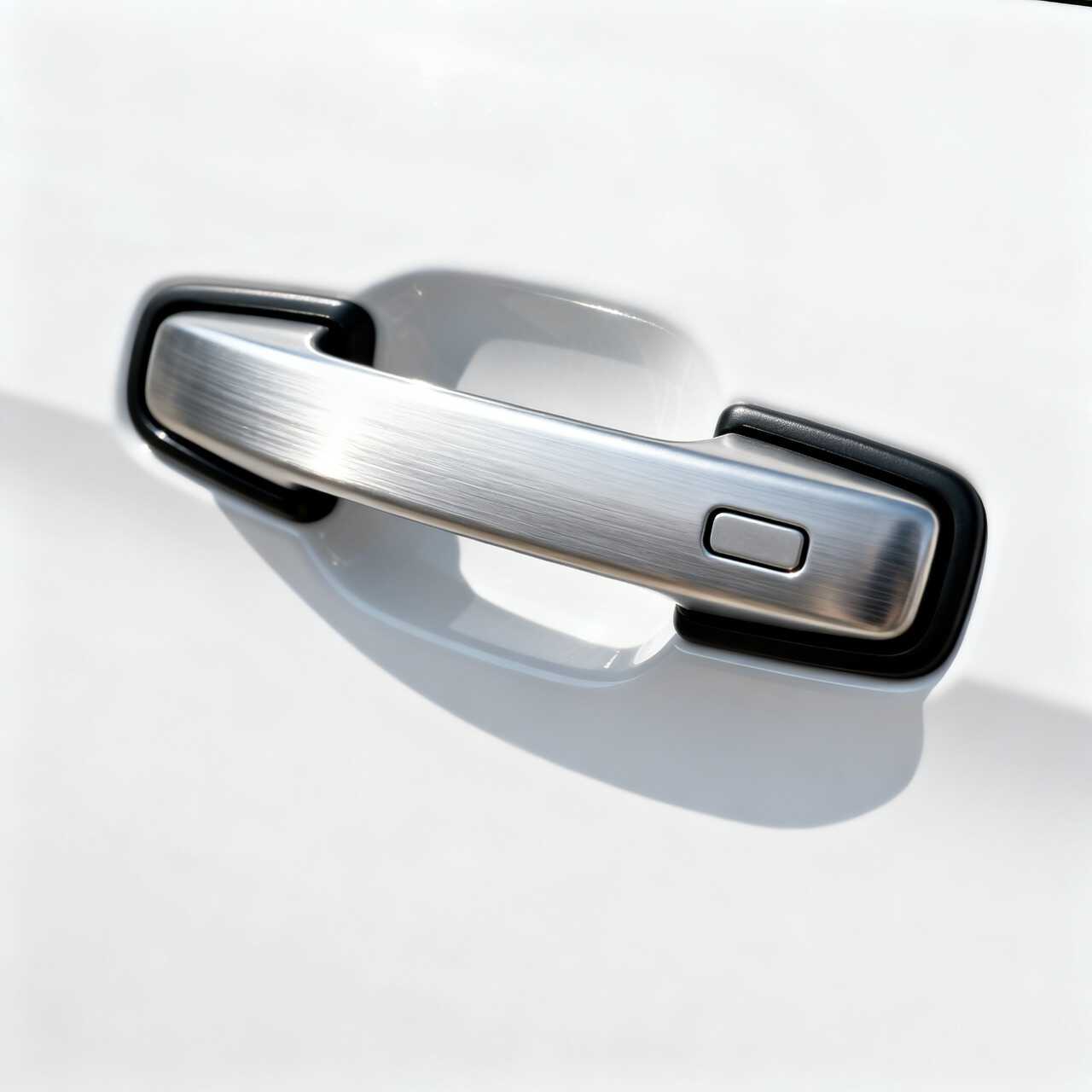

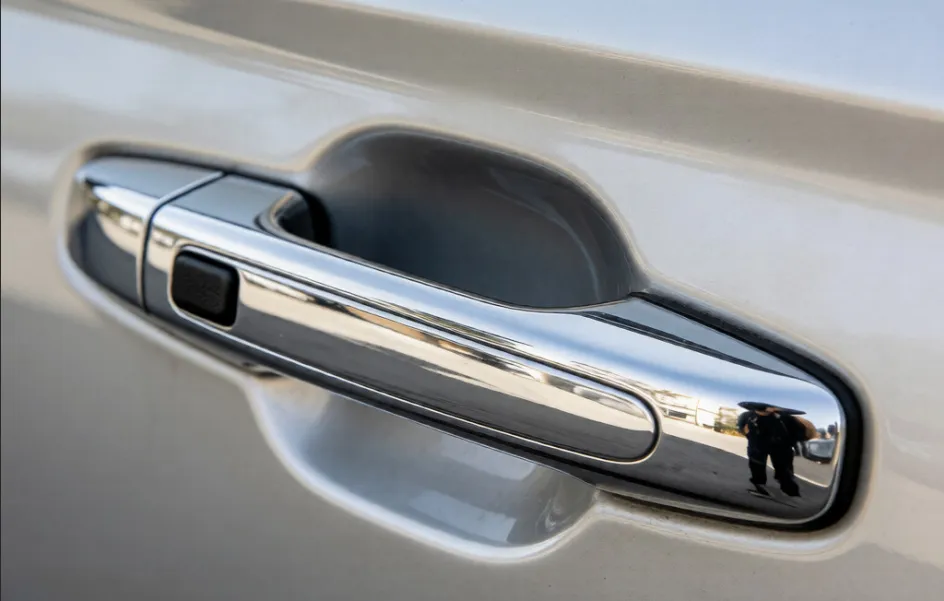

·Door handles ·Lock housings ·Carburetors ·Fuel system components ·Engine parts ·Brake parts ·Window cranks ·Decorative trim pieces
✔️ Electronics and Electrical Components
·Connector housings ·Heat sinks ·Switchgear components ·Electrical enclosures ·Casings for electrical devices ·LED lighting parts
✔️ Appliances
·Housings ·handles ·knobs ·structural components

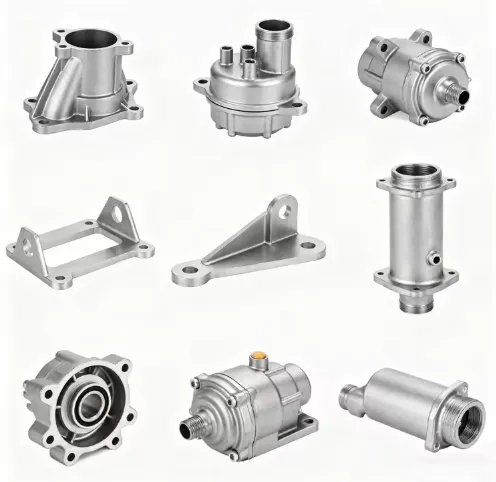

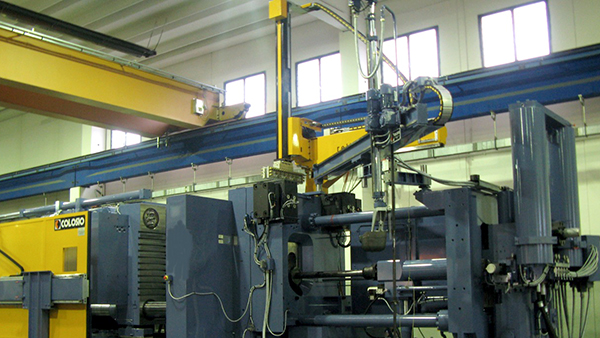

Zinc Die Casting Processes
We offer a variety of technologies for zinc die casting, including but not limited to:
✔️ Multi-Slide Die Casting
Featuring 5-15 average cycles per minute (CPM), up to 6 slides for complex geometries, hydraulic thrusters delivering up to 6 tons of locking force (A2 thruster & A206SIS only), flexible crosshead adaptor systems, and fast pneumatic injection systems.

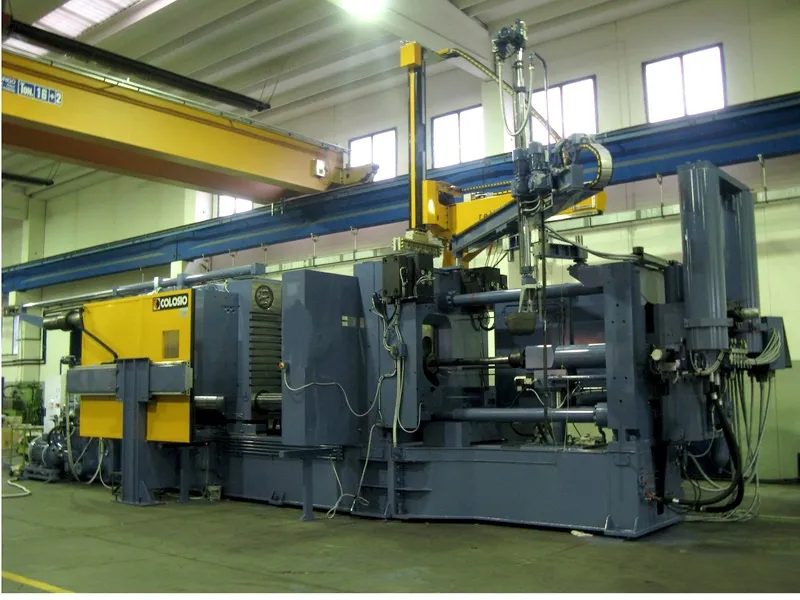

✔️ Hot Chamber Die Casting
Our automated multi-slide and conventional machines—featuring internal melting pots, aluminum hot chamber capability, and up to 6 slides for complex geometries—are ideal for low melting-point alloys.
✔️ Sub Assembly
Subassemblies join small metal components via insert moulding, overmolding, and similar techniques.
✔️ Overmolding
Overmolding materials enable complex, high-quality products across consumer, industrial, military, and medical sectors—enhancing grip, sealing, vibration/noise damping, impact resistance, and visual appeal while reducing labor, part count, and errors.
✔️ Insert Molding
Insert moulding involves placing metal components into a mould prior to injecting molten metal around them to form a finished part.
Zinc Die Castings Design Capabilities
| Design Elements | Specific Value/Range | |||
| Uniform Wall Thickness | Aim for wall thickness between 1.5mm to 4mm for optimal casting flow and to reduce material wastage. | |||
| Draft Angles | Use a 1° to 3° draft angle on vertical surfaces to ease part removal and prevent damage to the mold. | |||
| Radii and Fillets | Incorporate 2mm to 4mm radii at corners and edges to improve flow and reduce stress concentrations. | |||
| Avoid Sharp Corners | Sharp corners can cause stress and are difficult to cast. Use a minimum 2mm radius to improve moldability. | |||
| Incorporate Ribs and Bosses | Design ribs with a thickness of 0.5mm to 1mm and maintain proper spacing (2-3 times the thickness) for strength without adding excessive material. | |||
| Correct Gate Placement | Gates should be placed at the thickest sections, and the gate thickness should be about 1mm to 2mm to ensure even metal flow and avoid cold shuts. | |||
| Optimized Thickness for Strength | For balance, wall thickness should be between 1.5mm to 4mm, ensuring a lightweight and durable part. | |||
| Proper Tooling Design | Vents should be spaced about 30mm to 50mm apart, with runners about 5mm to 7mm wide to ensure proper air evacuation and metal flow. | |||
| Consider Post-Processing Needs | Allow for 0.1mm to 0.3mm tolerance for any CNC machining or secondary finishing, such as polishing or painting. | |||
| Avoid Deep Blind Holes | Avoid blind holes deeper than 2-3 times their diameter. If needed, use through holes to simplify casting. | |||
| Minimize Undercuts | Minimize undercuts in the design to reduce complexity in tooling. Consider using side-action tooling or simplifying the design. | |||

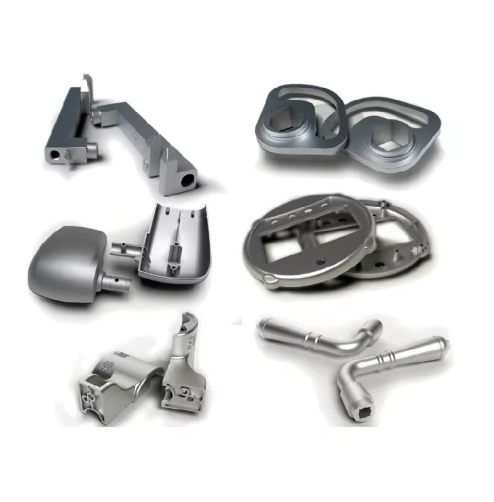

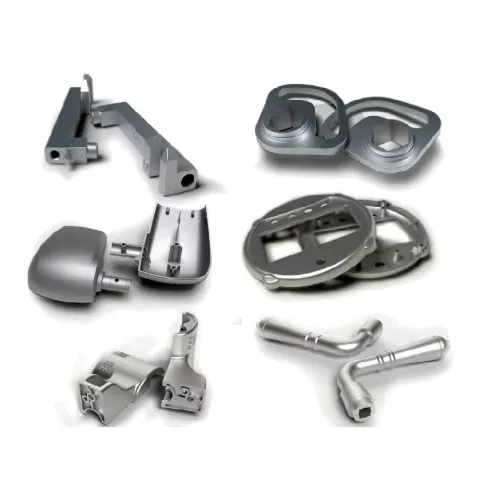

Why Choose Mastars for Zinc Alloy Die Casting Service
✔️ Strong Engineering Team Support
· 100+ engineers with 25+years experiences
· 7*24 hours professional technical support
✔️ Strict Quality Control
· ISO 9001,ISO 13485 IATF16949 Certifications
· In-house QC testing, continuous audits, and high-precision inspection equipment
✔️ Comprehensive In-House Tooling and Post-Casting Services
· One-stop production customization services
· From Rapid prototyping, mold, die casting, CNC machining, surface finishing treatment, to assembly
✔️ Strong Zinc Die Casting Capacity
· More than 10 Horizontal Hot Chamber Machines
· Capacities ranging from 88 to 800 tons, allowing for an annual zinc die casting capacity of over 12 million pounds

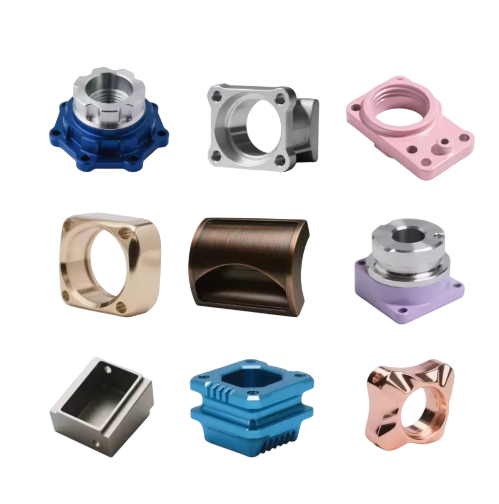

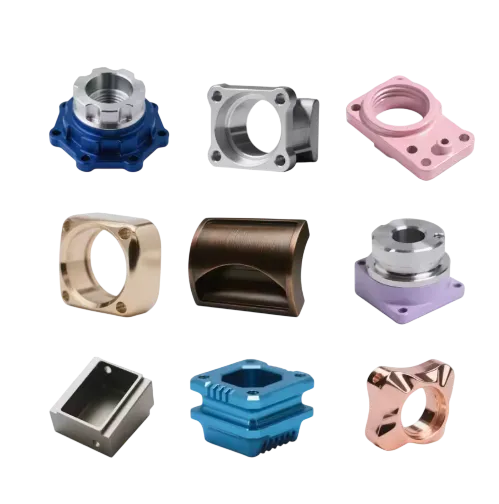

Surface Treatment
We don't have MOQ, only 1pcs is according to high standard to make, we pursuit the product is perfect to every customer, from 1pcs to million,we are glad to witness and grow together with our customers, that make us proud.
These processes enhance properties such as corrosion resistance, surface hardness, appearance, and strength, while also improving durability and performance in industrial applications.
| Surface Treatment | Description | Purpose/Benefit | Applications |
| Chromate Conversion Coating | A chemical treatment that creates a protective layer on the zinc surface. | Provides corrosion resistance and improves paint adhesion. | Automotive, electrical components, military, and industrial equipment. |
| Powder Coating | A dry finishing process where a powdered coating is applied and then cured under heat. | Enhances corrosion resistance, improves aesthetics, and offers durable finishes. | Automotive parts, household appliances, furniture, outdoor equipment. |
| Electroplating (Nickel, Zinc, etc.) | The process of depositing a metal layer onto the zinc surface through electrochemical means. | Improves corrosion resistance and surface hardness, and enhances appearance. | Automotive, electrical components, hardware, decorative items. |
| Painting | Application of liquid paints for decorative and protective purposes. | Offers color, increased durability, and corrosion resistance. | Consumer products, automotive, machinery, outdoor products, furniture. |
| Polishing | Mechanical or chemical polishing to create a smooth, shiny surface. | Improves surface finish and aesthetic appeal, often used for decorative purposes. | Jewelry, automotive, consumer electronics, decorative architectural elements. |
| Shot Blasting | High-pressure blasting of abrasive particles onto the surface to clean or texture it. | Improves surface texture, removes casting defects, and enhances paint adhesion. | Metalworking, automotive, aerospace, construction, foundries. |
| Vibratory Finishing | Using abrasive media in a vibrating machine to smooth surfaces. | Reduces surface roughness and deburrs parts. | Automotive, aerospace, medical device manufacturing, jewelry finishing. |
| Chemical Etching | Use of chemicals to etch away unwanted material from the surface. | Provides fine surface finishes, often used for engraving or creating textured finishes. | Electronics, signage, jewelry, precision machining, aerospace. |
| Clear Coating | Application of a transparent coating to preserve the natural finish of zinc. | Provides UV and corrosion resistance while maintaining the metallic look. | Automotive, electronics, marine, architectural, jewelry. |
| PVD Process | Physical Vapor Deposition process that applies thin metallic coatings to the zinc surface. | Provides superior wear resistance, hardness, and enhanced aesthetics with metallic finishes. | Electronics, automotive, decorative hardware, medical devices, aerospace. |
Certificates
Choose Mastars, You'll Gain
We don't have MOQ, only 1pcs is according to high standard to make, we pursuit the product is perfect to every customer, from 1pcs to million,we are glad to witness and grow together with our customers, that make us proud.
Download Our Manufacturing Equipments List
We offer a one-stop processing service from prototypes and molds to machining and assembly, and are equipped with various models of processing equipments from major domestic and international companies, for CNC machining, injection molding, mold making, and sheet metal manufacturing. Download Now！

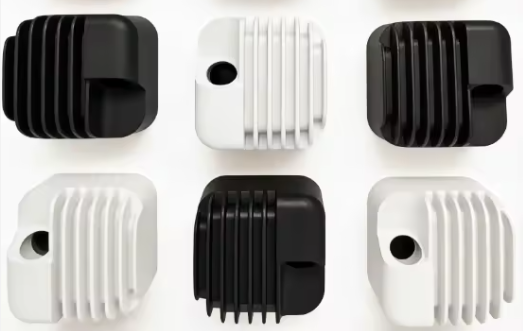

Our Production Capability
✔️Able to achieve complex structures and tight tolerances
✔️Short molding cycle, suitable for high-volume manufacturing
✔️Excellent surface quality

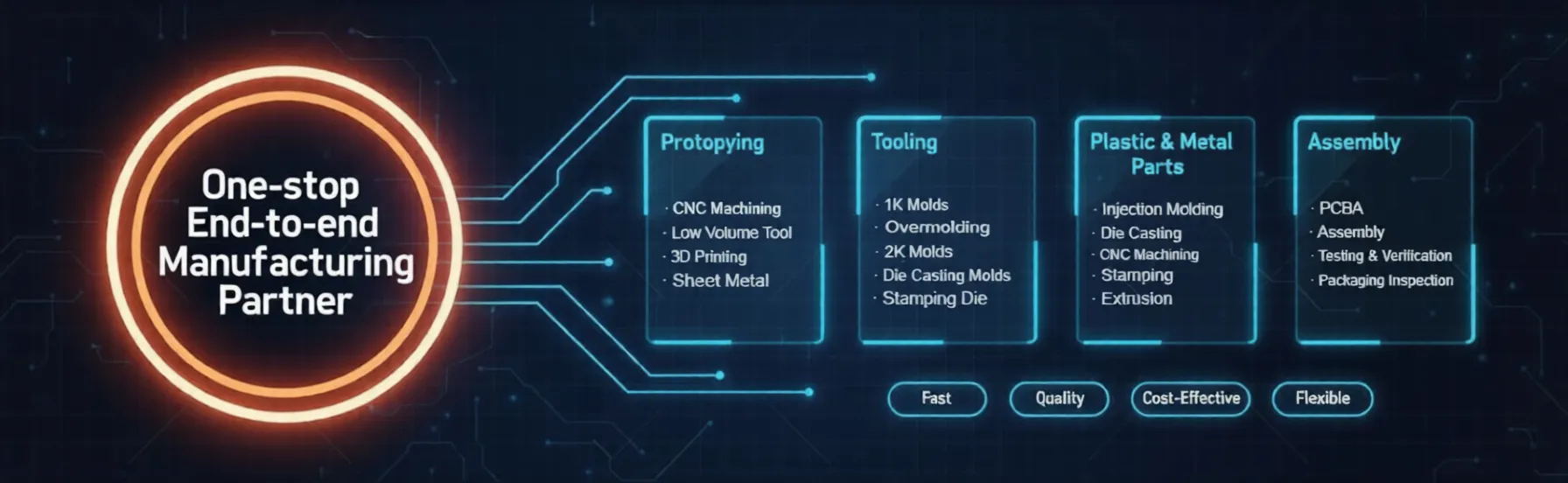

Our Services
We don't have MOQ, only 1pcs is according to high standard to make, we pursuit the product is perfect to every customer, from 1pcs to million,we are glad to witness and grow together with our customers, that make us proud.
Industries We Serve
We don't have MOQ, only 1pcs is according to high standard to make, we pursuit the product is perfect to every customer, from 1pcs to million,we are glad to witness and grow together with our customers, that make us proud.
