Liquid Silicone Rubber Molding: Design, Process Optimization and Industrial Application Strategy

In actual mass production, manufacturers frequently encounter common defects including incomplete cavity filling, air entrapment, flow mark, uneven cross-linking curing, warpage deformation and dimensional deviation. Most traditional production optimization methods rely on empirical trial-and-error, which is time-consuming, high-cost and difficult to form a standardized and replicable technical system. This article systematically elaborates the logical design thinking based on structural geometric decomposition, multi-physics engineering mechanism analysis and multi-objective process iteration optimization. It comprehensively discusses part structure design principles, mold system layout, material mixing and rheological characteristics, injection and curing parameter matching, as well as industrial case verification. Meanwhile, it analyzes existing production bottlenecks and future development trends of LSR molding, providing systematic theoretical support and practical guidelines for product design, mold development and mass production quality control in the liquid silicone rubber molding industry.

1. Introduction

Liquid silicone rubber is a two-component platinum-catalyzed elastomer material, composed of vinyl-terminated polysiloxane base material, platinum catalyst, hydride cross-linking agent and functional additives. Different from solid silicone rubber, LSR maintains low viscosity fluid state at room temperature, which enables automatic metering, continuous mixing and high-precision injection molding. The molding process of LSR is essentially a thermoset cross-linking reaction: the mixed raw material keeps low temperature liquidity in the runner system, and completes rapid thermal curing cross-linking after entering the high-temperature mold cavity.

The uniqueness of LSR molding lies in the strong coupling relationship between product geometric structure, mold flow channel layout, heat transfer condition and reaction kinetics. Any unreasonable structural mutation, uneven wall thickness, inappropriate gate position or mismatched injection speed will directly induce flow stagnation, air trapping and inconsistent curing. In industrial manufacturing, small-batch trial production and empirical parameter adjustment can no longer meet the requirements of high precision, high yield and low cycle time. It is necessary to adopt a systematic design logic that starts from geometric feature analysis, combines fluid flow and heat transfer engineering mechanism, and carries out multi-index balanced optimization, so as to realize front-end defect prevention and standardized process solidification.

This paper starts from the basic material characteristics of LSR, analyzes the key points of product structural design and mold geometric design, expounds the internal mechanism of filling flow, heat conduction and curing reaction, optimizes the matching rules of injection pressure, injection speed, mold temperature and holding time, and verifies the optimization effect through practical industrial cases. Finally, it summarizes the existing technical difficulties and future intelligent development direction of LSR precision molding.

2. Fundamental Characteristics of Liquid Silicone Rubber and Molding Mechanism

2.1 Material Composition and Rheological Properties

Commercial LSR products are supplied in A and B two-component form with a standard mixing ratio of 1:1 by volume or weight. Component A contains base silicone oil and platinum catalyst, while Component B contains cross-linking agent and reaction inhibitor. The inhibitor can effectively delay the cross-linking reaction at room temperature and low runner temperature, avoiding premature curing before entering the mold cavity.

LSR belongs to typical non-Newtonian fluid, with viscosity ranging from 1000 cP to 10000 cP under normal processing temperature. Its viscosity is highly sensitive to shear rate and ambient temperature: the higher the shear rate during injection, the lower the apparent viscosity; the temperature rise will also significantly reduce fluid viscosity and improve filling flowability. Such rheological characteristics determine that LSR filling balance cannot be simply adjusted by single injection parameter, but must be matched with structural geometry and runner layout.

2.2 Cold-Injection and Hot-Curing Molding Principle

The core mechanism of LSR molding can be summarized as cold injection and hot curing, which is completely opposite to the molding logic of thermoplastic materials. The whole process can be divided into five core stages:

First, precision metering and static mixing. The dosing unit accurately delivers Component A and Component B according to the fixed ratio, and the two raw materials are homogenized through a high-precision static mixer to ensure no component segregation and uniform catalytic distribution.

Second, low-temperature runner conveying. The runner and injection barrel are controlled at 5–30 ℃ to maintain the fluid state of LSR and restrain the activation of platinum catalyst, preventing pre-curing in the runner.

Third, high-pressure cavity filling. The low-viscosity mixed material is injected into the closed high-temperature mold cavity under set pressure and speed. The mold temperature is usually controlled between 140 ℃ and 220 ℃, providing thermal conditions for cross-linking reaction.

Fourth, thermal cross-linking and curing. Under high mold temperature, the hydrosilylation cross-linking reaction is rapidly activated, forming a stable three-dimensional network molecular structure from linear silicone macromolecules, and the material completes the transformation from fluid to elastic solid.

Fifth, demolding and post-curing. After complete curing, the elastic part is ejected automatically. For medical and high-temperature resistant parts, secondary post-curing is adopted to remove small molecule volatile substances and further stabilize mechanical and dimensional performance.

3. Geometric Structural Design Optimization for LSR Molding

The geometric feature of product and mold is the primary factor determining filling path, flow front stability, air discharge efficiency and curing uniformity. Reasonable structural design can eliminate potential molding defects at the initial design stage and reduce subsequent process adjustment cost.

3.1 Product Wall Thickness Design

Uniform wall thickness is the core principle of LSR part design. Excessive wall thickness difference will cause unbalanced flow front: the thin wall area is filled first and cools rapidly, while the thick wall area accumulates material and heat, resulting in over-curing, internal shrinkage and residual stress. In actual design, the wall thickness variation should be controlled within 20% of the basic thickness, and abrupt thickness transition is strictly avoided. For conventional LSR precision parts, the recommended wall thickness range is 0.5 mm to 5 mm. When thick and thin structures must coexist, smooth fillet transition must be set to ease flow resistance and heat transfer difference.

3.2 Fillet, Draft Angle and Local Feature Design

Sharp corners in structural design will cause flow dead zone, air accumulation and stress concentration. It is necessary to set transition fillets at all inner and outer corners, with the minimum fillet radius not less than 0.3 mm. Different from hard plastic parts, LSR has excellent elasticity and demolding performance, so the draft angle can be appropriately reduced, usually controlled between 0.5° and 1°, which can meet demolding requirements without obvious deformation.

For micro-grooves, thin-walled ribs and special sealing structures, the structural layout should follow the principle of gradual transition, avoid enclosed blind cavities, and reserve natural exhaust channels at the terminal filling position, so that the trapped air can be discharged smoothly with the flow front.

3.3 Mold Geometry and Gating System Layout

The gate position directly determines the filling sequence and pressure distribution of the cavity. For LSR molding, the optimal gate position is arranged at the thickest position of the product, which ensures radial outward balanced filling and avoids flow hesitation caused by feeding from thin wall. Point gate and submerged gate are the most commonly used types, with the gate diameter controlled from 0.8 mm to 1.5 mm, which can balance filling speed and avoid excessive shear heat.

Runner cross-section adopts circular or trapezoidal design to ensure uniform flow velocity and minimize material residue. The layout of multi-cavity mold adopts balanced runner layout to ensure consistent filling time and pressure of each cavity, reducing batch dimensional difference.

3.4 Venting System Structural Design

Low-viscosity LSR flows fast and easily wraps air in the filling process. Reasonable venting groove design is essential to eliminate air voids and burning marks. The venting groove is mainly arranged at the last filling position, parting surface and rib terminal. The conventional main vent width is 1–2 mm, and the depth is strictly controlled at 0.01–0.02 mm, which can discharge air without material overflow. For ultra-thin wall and complex special-shaped parts, vacuum auxiliary exhaust system is configured to extract cavity air in advance, effectively solving the air entrapment problem of complex geometric structures.

4. Engineering Mechanism Analysis of Filling, Heat Transfer and Curing

On the basis of geometric structure design, it is necessary to analyze the internal engineering mechanism of fluid flow, transient heat transfer and curing reaction kinetics, clarify the coupling law of each physical field, and provide theoretical basis for process parameter optimization.

4.1 Fluid Flow Mechanism in Cavity

LSR filling belongs to unsteady non-Newtonian fluid flow. The flow front shape, pressure drop and shear rate distribution are affected by geometric structure, injection speed and material viscosity. Excessively high injection speed will cause jetting phenomenon, making the material directly impact the cavity wall and form chaotic flow lines; excessively low speed will lead to flow front stagnation, increasing the risk of cold material joint line.

Multi-stage speed injection is the mainstream optimization method: low speed to stabilize the flow front when approaching the gate, medium speed for main cavity filling, and low speed again at the end of filling to facilitate air discharge and reduce residual pressure. Through flow field mechanism analysis, the optimal speed interval can be matched for different structural parts, avoiding empirical blind adjustment.

4.2 Transient Heat Transfer Mechanism

Mold temperature, LSR material temperature and curing reaction exothermic effect together form a complex transient heat transfer system. The heat transferred from the high-temperature mold heats the LSR material, activates the catalyst, and the cross-linking reaction will release additional heat, further changing the local temperature field.

Uneven temperature distribution in the cavity will lead to asynchronous curing: high-temperature area completes cross-linking first, while low-temperature area cures lagging, resulting in internal residual stress and post-molding warpage. By optimizing the layout of mold heating channels, the temperature difference of each cavity surface can be controlled within ±1 ℃, realizing synchronous heat transfer and consistent curing degree.

4.3 Curing Reaction Kinetics

The cross-linking curing rate of LSR follows the Arrhenius reaction law. The reaction constant increases exponentially with the rise of temperature. Under the same wall thickness condition, every 10 ℃ increase of mold temperature will approximately shorten the curing time by half. Excessively high temperature will cause surface scorching and internal incomplete curing; excessively low temperature will prolong cycle time and reduce production efficiency.

The curing time must be matched according to wall thickness and mold temperature: for 1 mm standard wall thickness, the reasonable curing time is about 30 seconds; for 2 mm wall thickness, it is about 40 seconds; for thick structure above 5 mm, the curing time needs to be extended to more than 60 seconds to ensure complete cross-linking inside the material.

5. Multi-Objective Process Parameter Optimization and Production Iteration

LSR molding involves multiple coupled process parameters, including injection pressure, multi-stage injection speed, mold temperature, curing time, holding pressure and material mixing ratio. These parameters restrict and influence each other, and cannot pursue single index optimization alone. It is necessary to balance dimensional accuracy, surface quality, production cycle and manufacturing cost to form the optimal parameter combination.

5.1 Optimization Objectives and Constraint Conditions

The core optimization objectives of LSR molding include three dimensions: quality index, efficiency index and cost index.

Quality indicators require minimizing warpage deformation, eliminating internal air voids and surface flow marks, and controlling dimensional tolerance within ±0.025 mm to meet assembly and sealing requirements. Efficiency indicators focus on shortening molding cycle time, improving cavity utilization and increasing production yield above 98%. Cost indicators include reducing runner material waste, lowering mold heating energy consumption and cutting trial production loss.

Constraint conditions are derived from product geometric structure limit, material temperature resistance range and equipment output capacity, which restrict the adjustable range of each process parameter and avoid unreasonable parameter setting beyond physical mechanism allowable range.

5.2 Process Parameter Matching Principles

Injection pressure is usually controlled between 5 MPa and 30 MPa, matching the structural complexity and flow resistance of the part. Complex thin-walled parts need higher injection pressure to ensure full filling; regular simple structural parts can adopt medium and low pressure to reduce residual stress.

Mold temperature for conventional general-grade LSR is set at 160–190 ℃; for over-molding on heat-sensitive plastic substrates, the mold temperature needs to be reduced to 150–160 ℃ to avoid substrate thermal deformation.

Through simulation analysis and small-batch trial production, the parameter combination is continuously adjusted and verified, and the optimal process window is screened out, so that multiple objectives of quality, efficiency and cost can reach the balanced optimal state.

5.3 Closed-Loop Iteration and Mass Production Stability

After the optimal parameters are determined in trial production, real-time production data such as actual dimensional detection, defect rate, cavity temperature and injection pressure curve are collected to compare with theoretical simulation results. If there is deviation between actual warpage, void rate and theoretical prediction, the geometric structure details and process parameter values are fine-tuned to realize closed-loop iteration optimization.

In mass production, real-time monitoring of process parameters is carried out to track the performance changes of material batch difference, mixer wear and mold heating aging, and timely adjust the parameter window to maintain long-term stable yield and consistent product quality.

6. Industrial Case Optimization Verification

A medical device manufacturer produces LSR catheter sealing parts, with a wall thickness of 1.5 mm and complex micro-groove features. In the initial production stage, the scrap rate reached 15%, with frequent defects such as internal air voids, local warpage and inconsistent curing.

According to the systematic design logic of geometric structure optimization, flow heat transfer mechanism analysis and process multi-objective optimization, the improvement measures are formulated as follows: optimizing fillet transition of micro-groove structure, adjusting gate layout to the thickest section of the part, designing precision venting groove and matching vacuum exhaust system; setting multi-stage injection speed, optimizing mold temperature to 175 ℃ and matching curing time to 35 seconds.

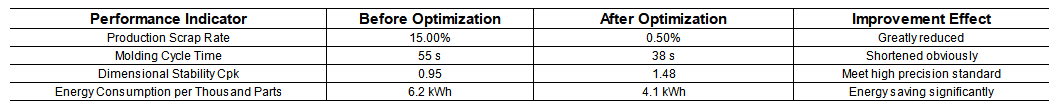

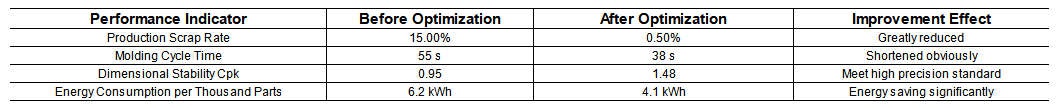

After optimization, the production performance is significantly improved, and the comparison of key indicators is shown in the table below:

The case proves that relying on systematic structural design, engineering mechanism analysis and balanced process optimization can effectively solve typical defects of LSR precision parts, realize high yield and high efficiency production, and have strong popularization value in the industry.

7. Current Challenges and Future Development Trends

7.1 Existing Technical Challenges

At present, LSR molding still faces multiple bottlenecks in industrial application. The rheological and curing characteristics of different batches and different suppliers of LSR materials have slight differences, which require frequent debugging of process parameters and increase the difficulty of standardized production. Ultra-thin wall parts below 0.5 mm and micro-nano special-shaped features have complex flow and heat transfer laws, and the traditional empirical design is difficult to accurately control molding quality. In addition, multi-physics simulation and precise mechanism modeling rely on professional software and technical experience, which limits the popularization in small and medium-sized processing factories.

7.2 Future Development Trends

With the development of intelligent manufacturing and digital simulation technology, LSR molding will gradually move towards digital twin and intelligent parameter self-optimization. Machine learning algorithms will be combined with molding production data to automatically identify the correlation between geometric features, process parameters and defect types, realizing intelligent early warning and automatic parameter adjustment.

Conformal heating mold structure will be more widely used to further optimize cavity temperature uniformity and shorten curing cycle. At the same time, green and low-carbon manufacturing will become an important development direction, optimizing material utilization rate and energy consumption in the whole molding process, and reducing carbon emission of LSR precision manufacturing.

8. Conclusion

Liquid Silicone Rubber molding is a manufacturing technology controlled by the coupling of geometric structure, fluid mechanics, heat transfer and reaction kinetics. The traditional empirical trial-and-error method is difficult to adapt to the current requirements of high precision, high yield and mass standardized production. Starting from product and mold geometric structure design, optimizing wall thickness, fillet, gate and venting layout can eliminate inherent defect risks from the source. Analyzing the engineering mechanism of filling flow, transient heat transfer and curing kinetics can clarify the internal change law of the molding process. Carrying out multi-objective balanced optimization of process parameters and closed-loop production iteration can realize the simultaneous improvement of product quality, production efficiency and manufacturing cost.

With the continuous upgrading of industrial demand for medical, automotive and electronic precision silicone parts, the systematic design and optimization method of LSR molding will become the mainstream technical standard in the industry. Combined with digital simulation and intelligent manufacturing technology, it will further break through the bottlenecks of micro-precision molding and batch stability control, and promote the high-quality development of the liquid silicone rubber processing industry.

References

1. Rosato, D. V., & Rosato, M. G. (2019). Injection Molding Handbook. Springer, New York.

2. Kirchberg, S., & Rudolph, N. (2020). Rheological Behavior and Curing Kinetics of Liquid Silicone Rubber for Injection Molding. Polymer Engineering & Science, 60(8), 1872–1881.

3. Zhang, L., & Wang, H. (2021). Mold Design Optimization and Flow Simulation of LSR Precision Molding Parts. Journal of Manufacturing Processes, 68, 512–520.

4. Mennig, G., & Woebcken, W. (2018). Elastomer Molding Technology: Rubber and Silicone Processing. Hanser Publishers.

5. Chen, Y., & Liu, J. (2022). Multi-objective Optimization of Process Parameters for Liquid Silicone Rubber Injection Molding. Materials, 15(12), 4289.

6. Trappe, V. (2019). Curing Reaction and Thermal Stability of Platinum-Catalyzed Liquid Silicone Rubber. Polymers, 11(5), 896.
