Deep Mold Detail Control With Mastars EDM Planning

Can this kind of deep, polished, fine-rib steel geometry stay consistent once conventional milling reaches its limit? Based on the visible features, the part reads as insert-style mold detail geometry, common in tooling that must reproduce narrow channels, blended corners, and controlled internal surfaces.

This kind of work is not driven by shape alone. The real engineering target is repeatable corner definition, surface consistency, fit and alignment, and traceable cavity detail transfer.

For startup teams, the problem is often bigger than steel itself. Many do not get real DFM support from their manufacturing partner early enough, so tooling risks stay hidden until geometry is already frozen, schedules are compressed, and revisions become expensive. In projects like this, the absence of manufacturing feedback from day 1 usually shows up later as avoidable rework, slower mold trials, and unstable delivery timing.

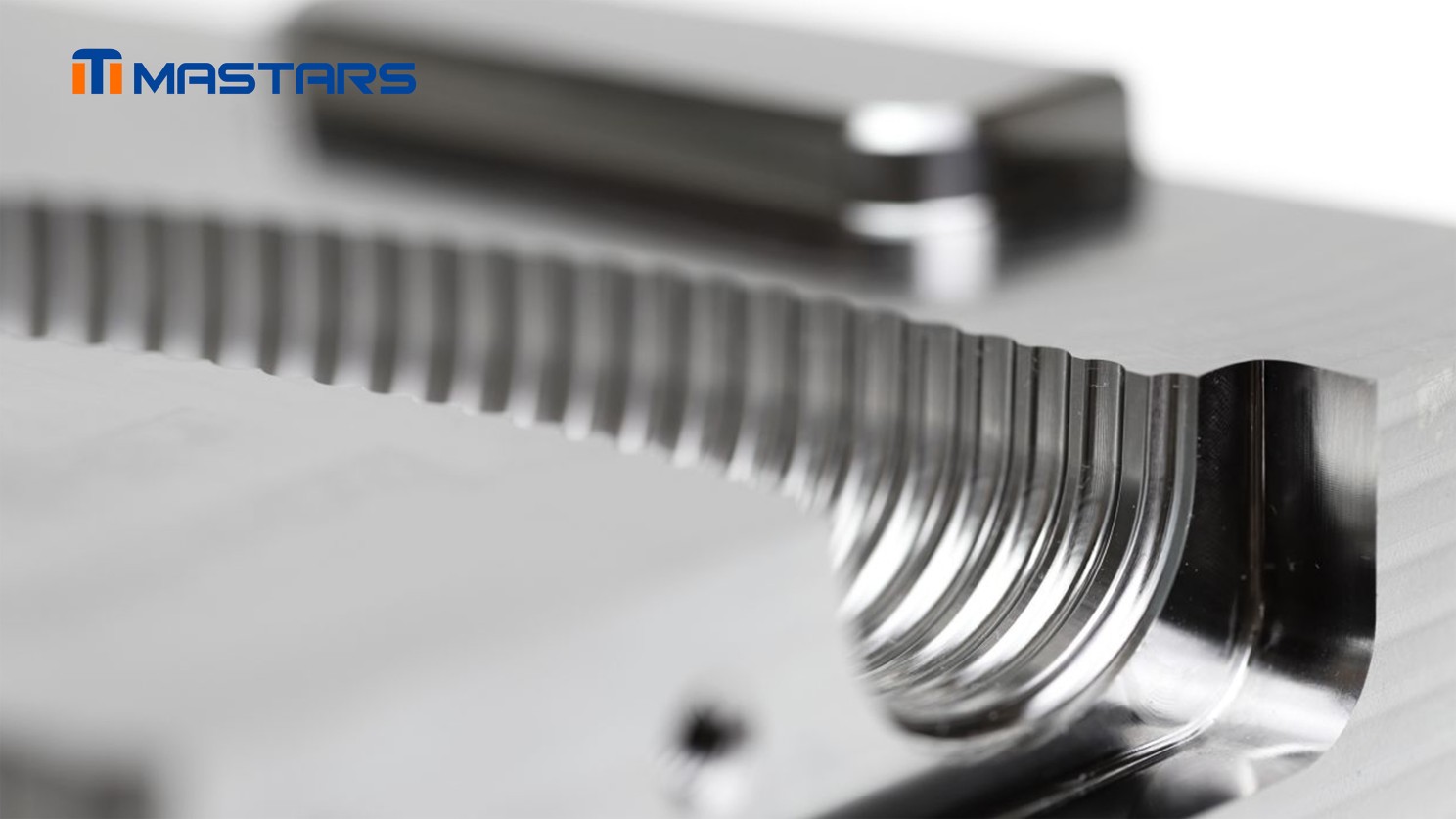

Precision mold cavity detail with deeep ribs and polished internal geometry, illustrating why EDM is critical for complext tooling features.

Where Mastars EDM Comes In

The visible risk sits in the deep ribs, narrow slots, blended bottoms, and polished internal corners where reach, flushing, and feature control compete with each other. Once the open surfaces are pre-machined, the difficult work shifts to how the hidden detail is formed and held consistently.

For work with this kind of geometry, Mastars can apply its own shop-floor EDM cells as part of a controlled tooling route. The route typically combines DFM review, fixture and datum planning, pre-machining of accessible areas, electrode planning for burn direction and flushing, sinker EDM on Mastars equipment, and inspection of critical surfaces, alignment references, and repeatable cavity geometry with traceable records.

For early-stage customers, especially, this creates a clear opportunity. From day 1, Mastars can bring an experienced engineering team into the discussion, work deeply with the customer on geometry, manufacturability, tooling logic, and risk points, and keep the program moving with more stable lead times. Instead of waiting for downstream problems to surface, the process is shaped earlier around what the mold detail actually needs.

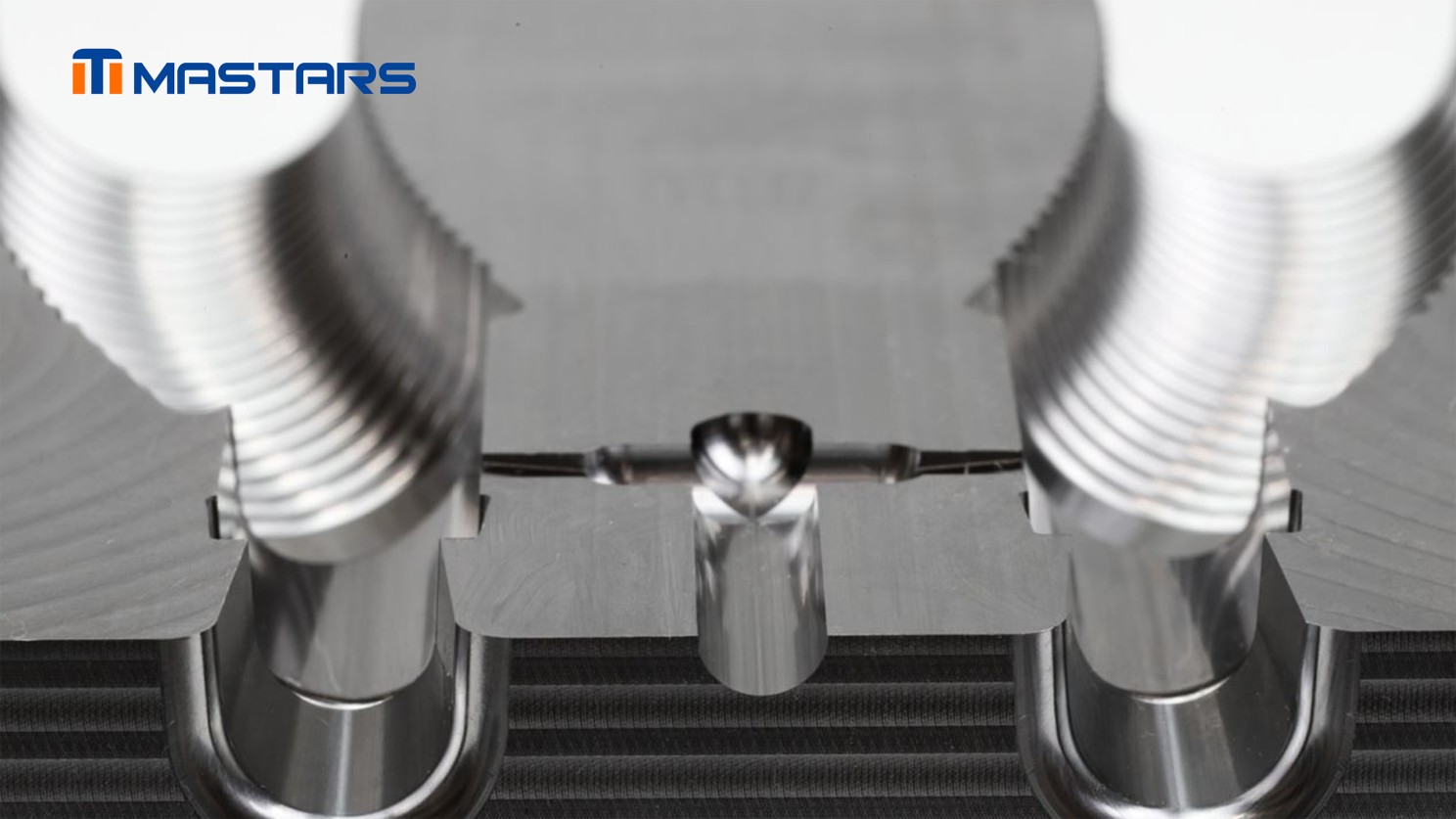

Close-up of fine cavity surfaces and blended internal corners, where controlled EDM finishing surpports consistency beyond milling limits.

What The Client Actually Gains

What can our client get from Mastrs? A steadier route from difficult mold detail to repeatable insert execution and cleaner trial readiness.

• First-pass acceptance on fine detail areas can improve by 15%–25%
• Bench fitting and polishing efforts can drop by around 10%–20%
• Rework risk across insert finishing can drop by roughly 12%–18%
• Earlier DFM participation helps reduce late-stage design surprises for startup teams
• A more coordinated engineering route supports more stable lead-time performance from kickoff through trial preparation

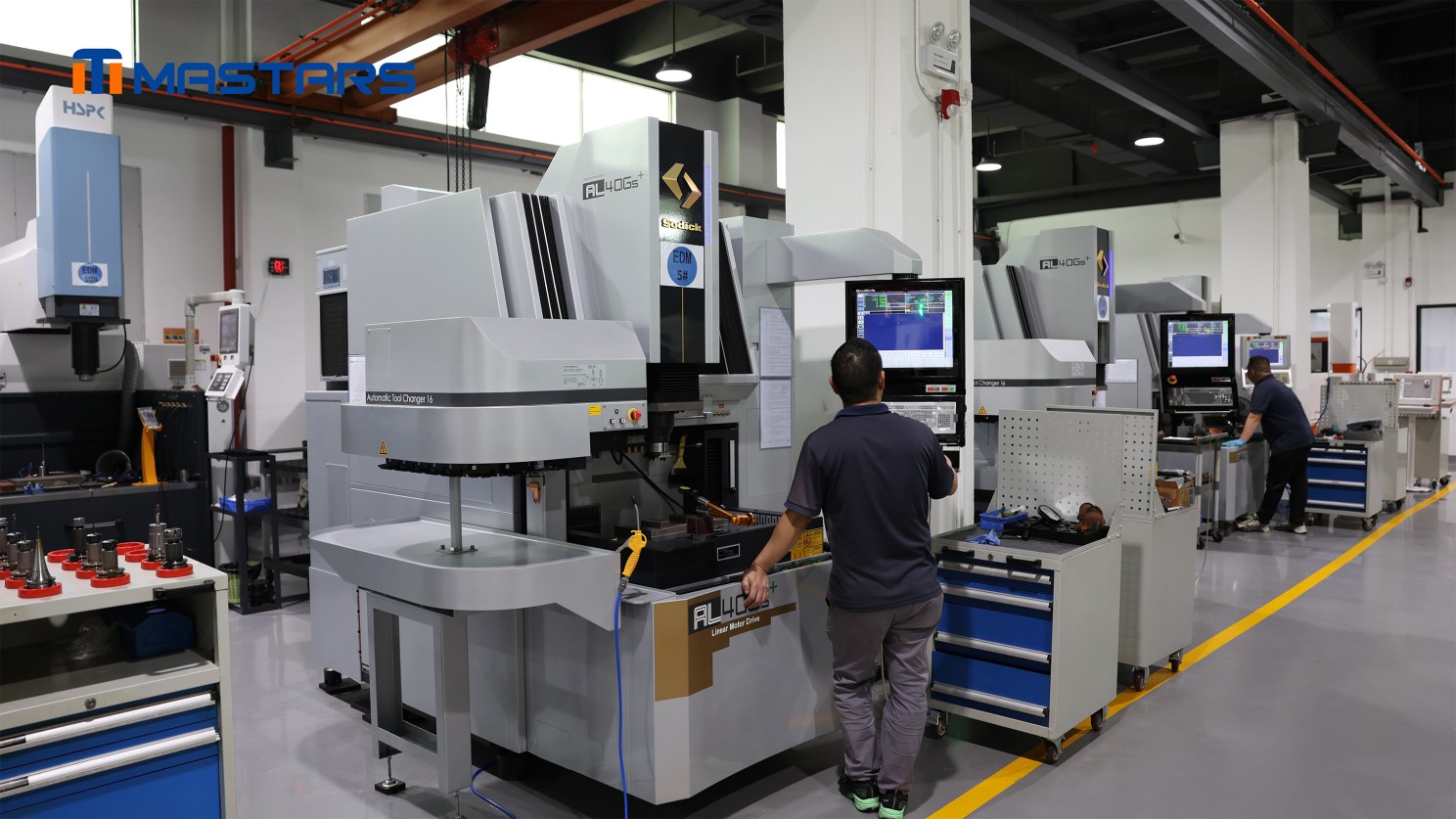

Mastars EDM shop floor, where engineers surppot DFM from day one and help keep mold scheduels on track.

Where Similar Needs Also Appear

Even if your end product is not a mold insert, the same manufacturing knot appears whenever deep, narrow, finish-sensitive geometry must survive multiple process handoffs. This is why mold-detail logic often matters in electronics, automotive, medical, and industrial tooling work alike.

• Consumer electronics - cosmetic housing inserts
• Automotive - connector mold details
• Medical devices - precision enclosure tooling
• Industrial equipment - fine cavity inserts

Where are deep ribs, polished corners, or hard-to-reach cavity bottoms slowing your current tooling plan? Bring the geometry to Mastars and discuss an EDM-centered route that fits your next program.
