Tesla Vehicle Interior Cup Holder Module with Sliding Mechanism

Engineers Designing Automotive Interior Mechanisms

This case involves a project for Tesla, a United States-based automotive and energy technology company known for its electric vehicles and sustainable energy solutions. The component developed in this project is a vehicle interior cup holder module integrated into the center console, designed to support daily use within the passenger compartment.

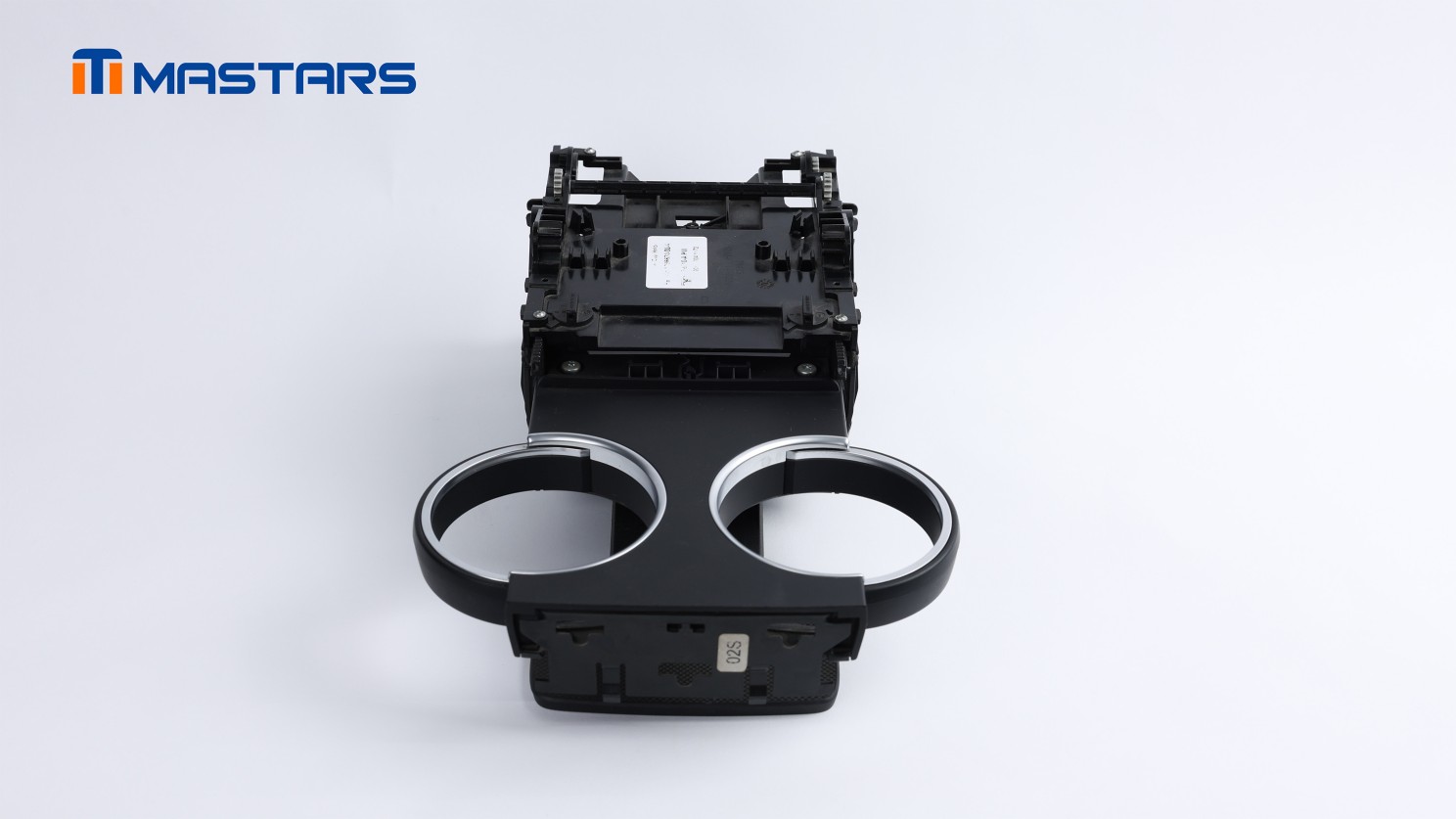

The images show a plastic interior module integrating two circular cup holder openings within a structural housing. The underside reveals ribbed reinforcement structures, assembly features, and a rack-and-gear sliding mechanism that guides the movement of the component. Such interior modules typically require fit and alignment, repeatable motion performance, and appearance consistency inside compact vehicle interior assemblies.

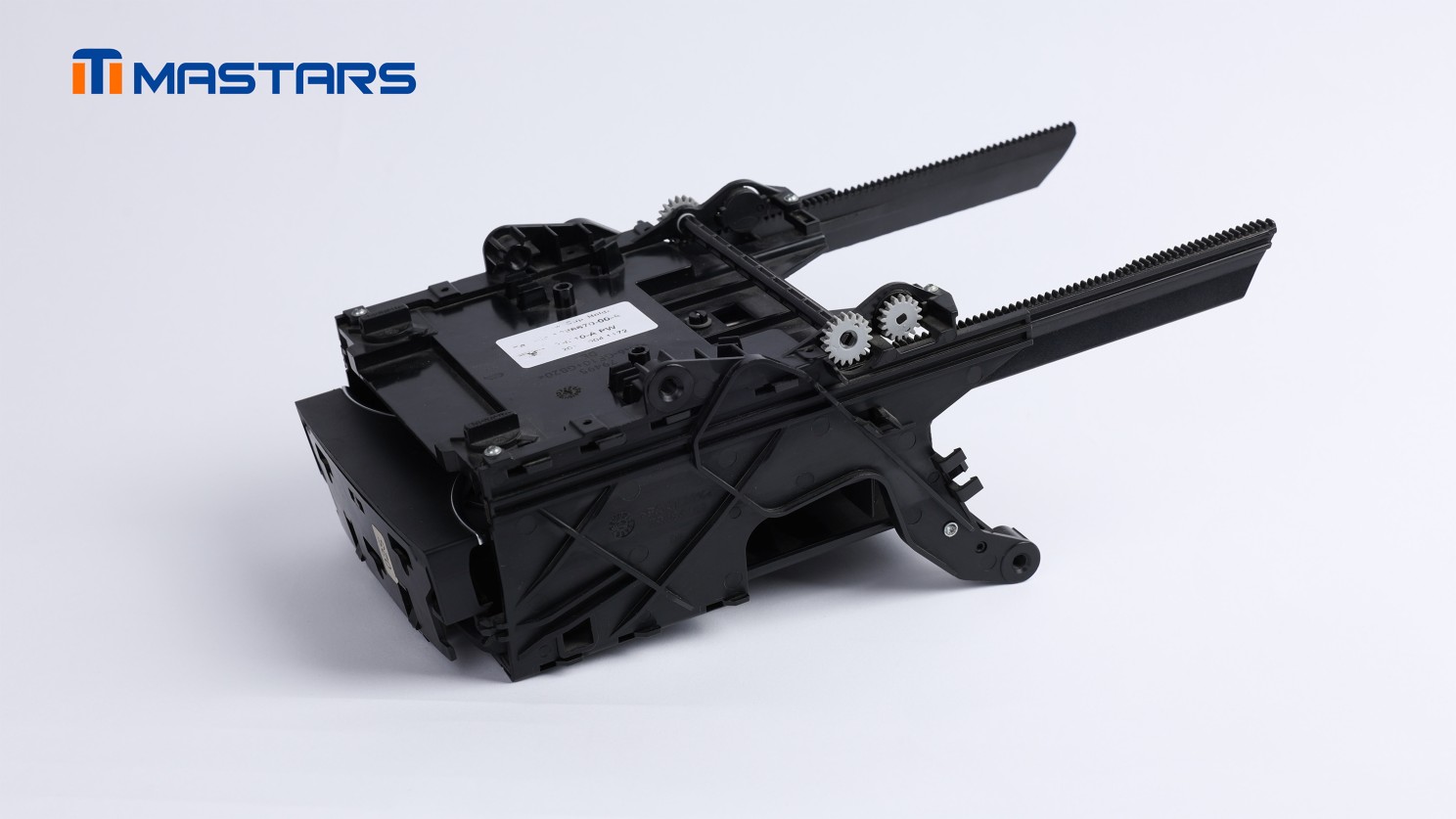

Rear-side structure of the automotive cup holder assembly, showing fuctional geometry and integrated molding details.

Engineering Integration for Functional Plastic Assemblies

Automotive interior components often integrate structural and motion features. Combining racks, gears, and plastic structures in one module significantly increases manufacturing complexity, with the core challenge in matching molded precision with mechanical engagement.

In this cup holder module, cumulative tolerance between the rack and gear may cause variation in meshing clearance, affecting sliding smoothness and user feel. In mass production, dimensional variation further impacts motion resistance and consistency.

To address this, Mastars ensures tight control of molded accuracy and assembly deviation, enabling stable and repeatable motion performance. The module is produced using injection molding with automotive-grade plastics, integrating ribs, bosses, and snap-fit features for structural stability.

Through optimized tooling precision, process control, and strict quality management, Mastars achieves consistent assembly performance and reliable mass production.

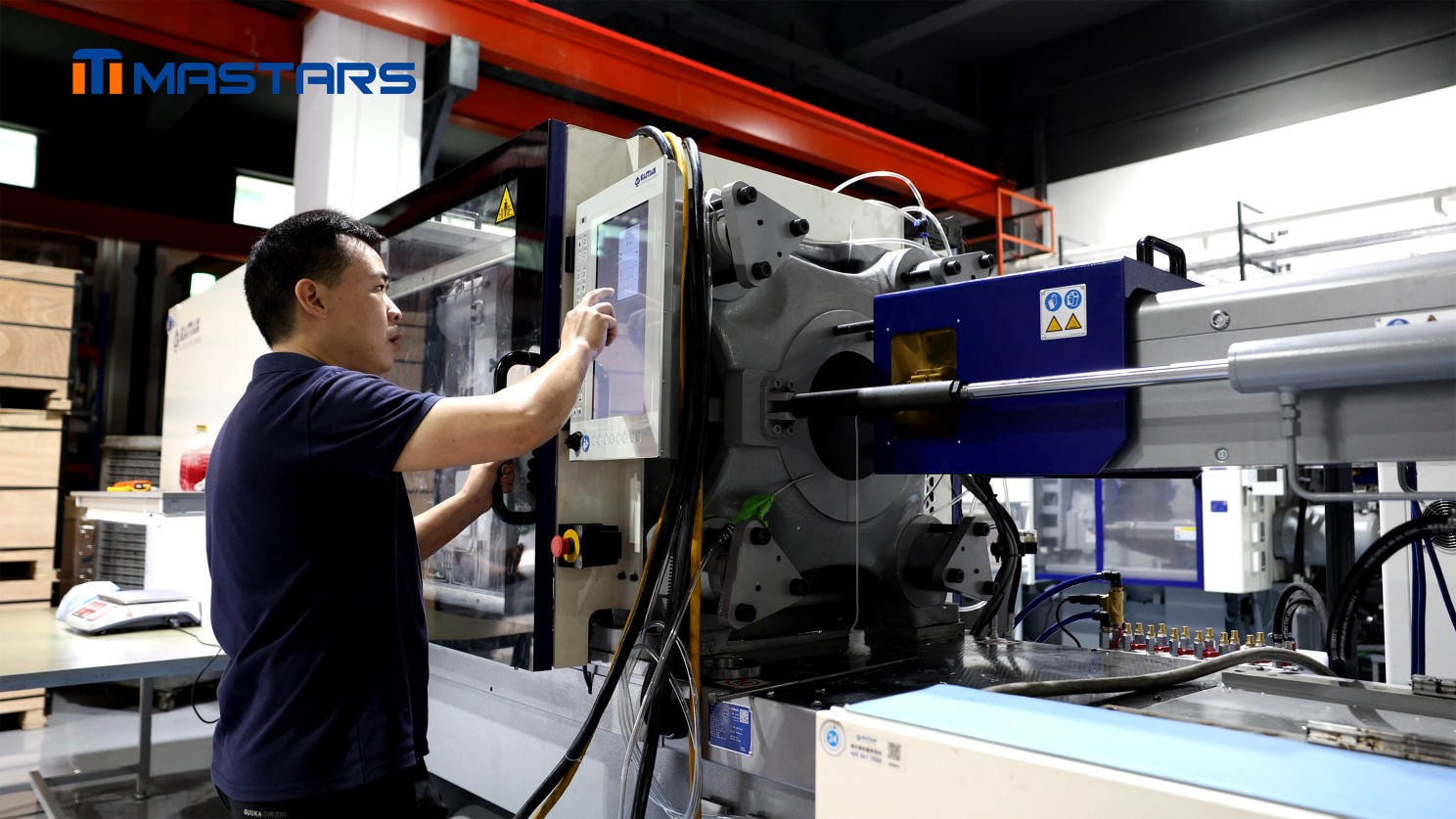

Injection molding prodution for automotive cup holder componets, ensuring stable quality and efficent batch manufacturing.

Reliable Manufacturing for Functional Interior Modules

Client core value: Stable tooling foundation supporting repeatable automotive interior manufacturing.

✅ Maintains consistent alignment between structural housing and sliding mechanism features

✅ Supports smooth and repeatable motion during regular vehicle use

✅ Reduces mold adjustment cycles during product validation by about 20%

✅ Improves manufacturing stability for complex interior functional assemblies

✅ Supports a stable transition from mold trials to production readiness, reducing project ramp-up time by 30 days

Internal mechanism of the cup holder assembly, revealing sliding structure and molded features for functional movement.

Supporting Product Development Across Multiple Applications

These engineering challenges are not limited to automotive interiors. When plastic components combine visible surfaces, motion mechanisms, and assembly requirements, complexity increases rapidly, making development more difficult to control.

• Automotive — center console cup holder modules

• Smart home — thermostat and control panel housings

• Industrial control — button interfaces and controller enclosures

• Consumer electronics — handheld remote housings

In your next project, is assembly tolerance affecting motion performance, or are design and appearance constraints limiting each other?

Share your drawings or samples with Mastars — we can help define a more controlled tooling and molding pathway.
