Injection Molded Security Keypad Housing for Cosmetic Consistency and Assembly Fit

Where Cosmetic Control Gets Hard

How do you mold a security keypad housing with a large display window, many button openings, and wrapped side walls without losing cosmetic consistency or assembly fit? In this case, the customer was Inner Range, a security solutions manufacturer founded in Melbourne, Australia, and the molded part was for its PrismaX Colour LCD keypad product. The housing combines a visible front frame, a rear cover, a wide screen opening, and a dense keypad layout.

For teams developing this kind of user-facing access control housing, the pressure is not only getting the shape out of steel. The front appearance, opening positions, snap alignment, and repeatable assembly all have to stay under control at the same time.

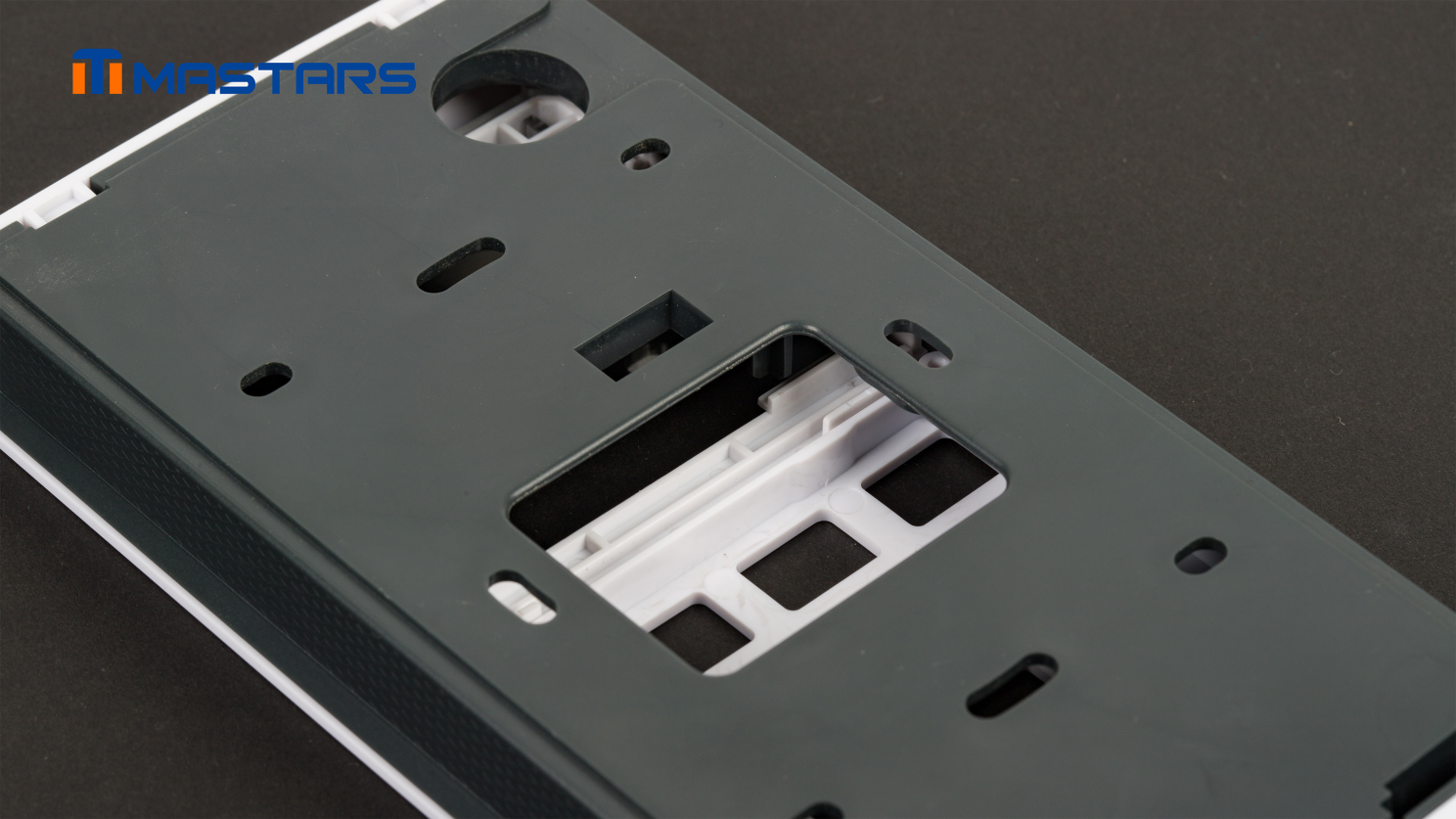

Rear hosuign detail shwoing controlled openiongs, assembly interfaces, and stable fit between molded parts in the keypad enclosure.

What Keeps Molding Predictable Here

A housing like this is difficult because the screen window, repeated key apertures, edge wrap, and mating features all sit on a highly visible part. A typical risk here is warp, flash around openings, a mismatch between front and rear parts, or visible marks that show up immediately during handling and assembly review.

Mastars can support this kind of program through DFM feedback, mold structure review, gate and ejection planning, molding trial follow-up, and inspection focused on opening geometry, cosmetic face quality, and assembly interfaces. Mastars also runs dozens of EDM machines for moldmaking; the AP450L fine-wire EDM is described as suitable for parts requiring cutting accuracy of 2 microns, while the AL40G series shown in the workshop emphasizes a 10-year positioning accuracy guarantee. That matters when narrow slots, insert details, and fit-critical openings must stay stable from toolmaking to molded parts.

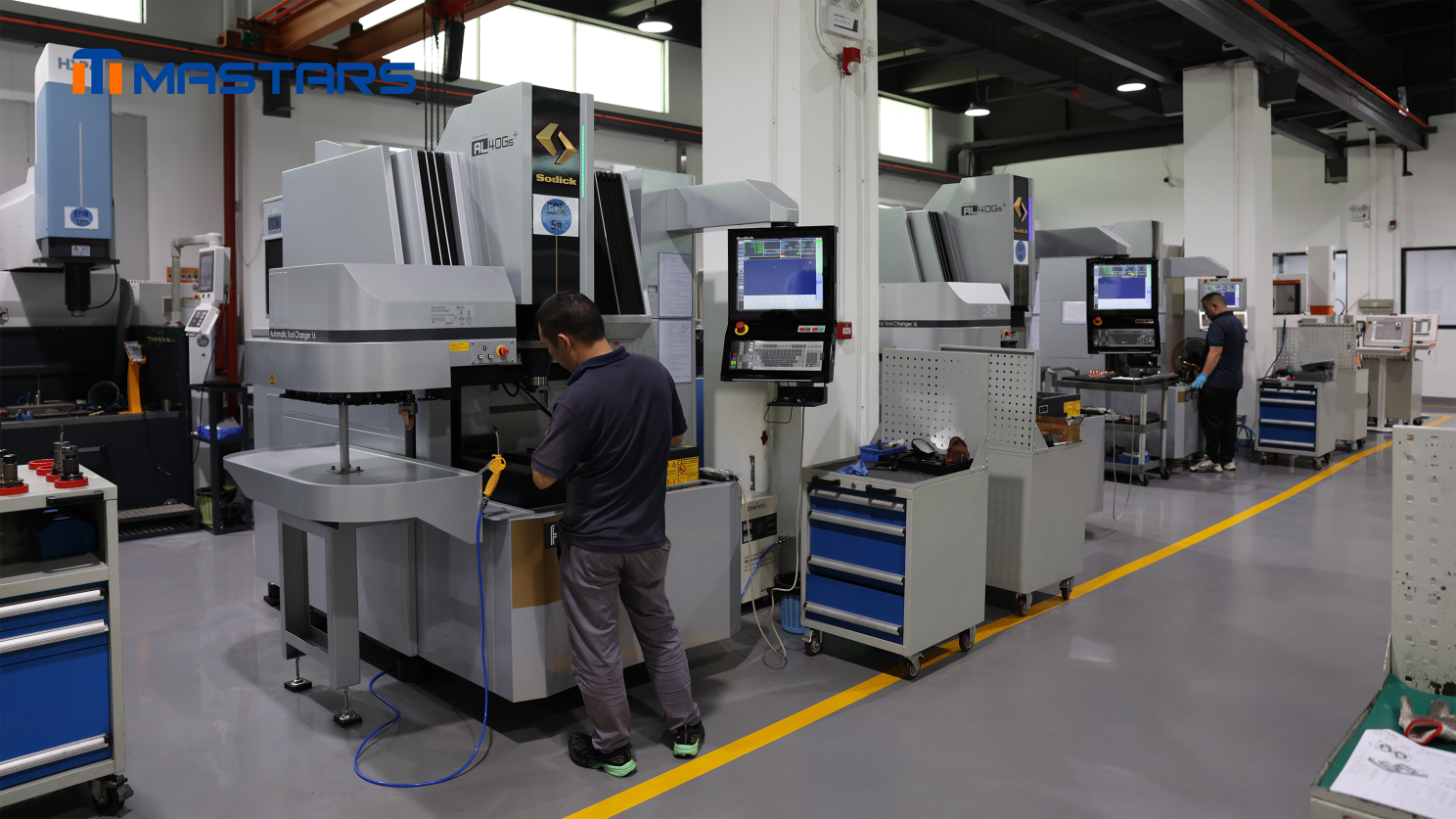

Mastars EDM workshop with multipl;e Sodick machines supporting precise mold details, narrow slots, and fit-critical opening control.

What Buyers Receive At Handover

Client core value: A small molded enclosure moves faster when tooling, parts, and inspection stay aligned on visible and fit-critical features.

✅ Providing plastic injection molding precision to the 2um, all the way to microns level

✅ Product qualification rate up to 99%, 15% better than our competitors

✅ More stable fit between the front frame and rear cover

✅ Lower rework risk before assembly review and customer approval stages

✅ Clearer inspection records for sourcing, engineering, and launch team coordination

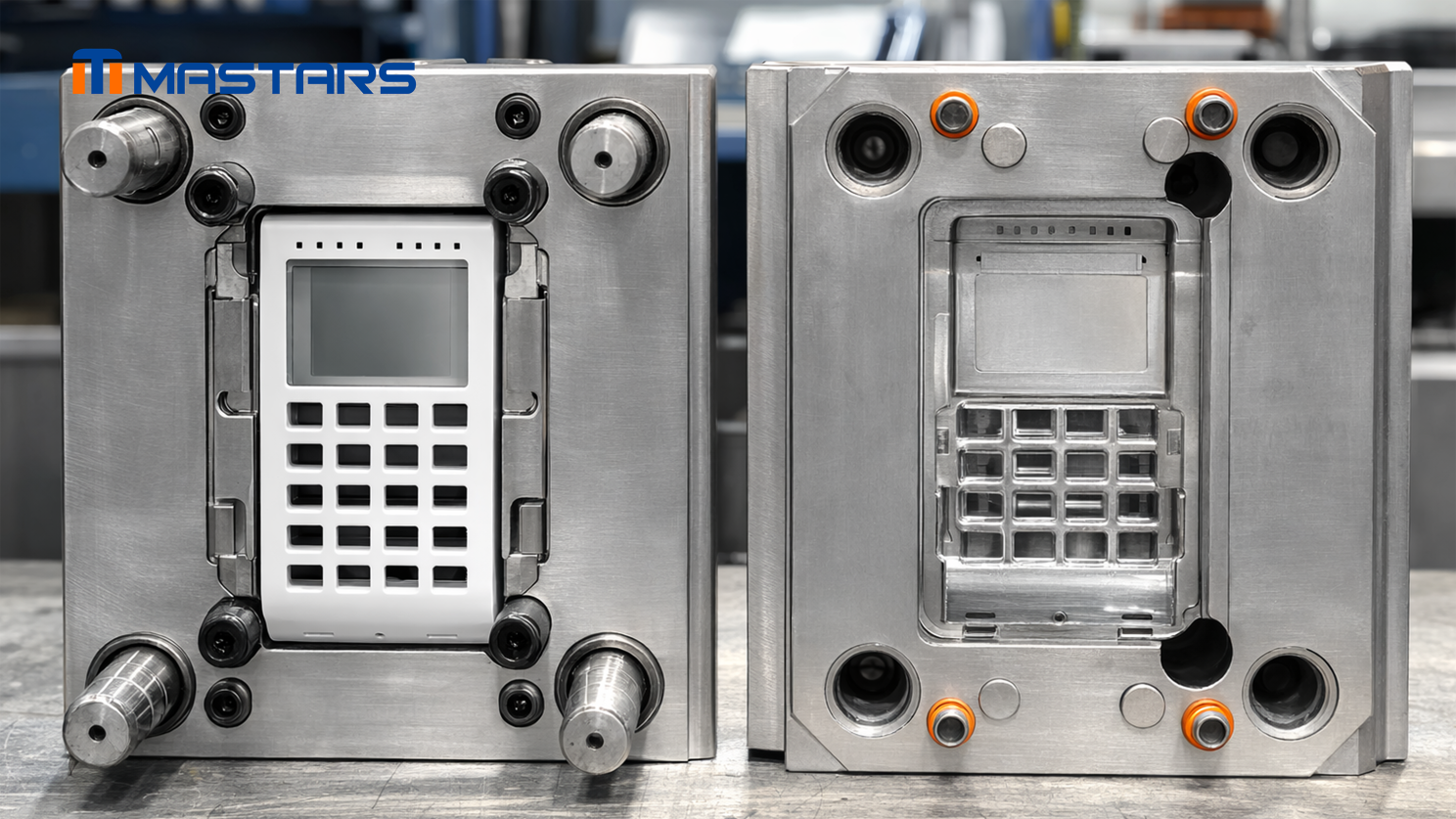

Precision mold for the Inner Range prismaX keypad housing, controlling display window, keypad openings, and cosmetic front-face geometry.

Why Other Products Face This

This type of housing challenge is not limited to security keypads. Any small plastic enclosure with visible surfaces, dense openings, and mating parts can slow down once cosmetic quality and assembly fit have to move together.

• Medical devices — handheld monitor shell
• Smart home devices — thermostat front enclosure
• Industrial controls — keypad controller housing
• Consumer electronics — handheld remote casing

What kind of window opening, button layout, or enclosure fit is slowing your next molded housing program? Bring the drawings or sample photos to Mastars, and we can review a practical tooling and molding route with you.
