Precision Manufactured Pump Housings for Industrial Fluid Systems

Project Background & Core Challenges

This precision manufactured metal pump housing is a custom order from an Australian client, designed for industrial fluid handling systems where dimensional accuracy, material stability, and delivery speed are critical to the client’s project progress. How can manufacturers quickly respond to custom orders, overcome complex processing difficulties, and deliver high-quality parts on time while ensuring material performance and precision consistency across low-volume production runs?

The client’s core demands include strict assembly alignment, stable surface uniformity, long-term mechanical durability, and rapid delivery to avoid delaying their project schedule. The pump housing’s complex volute geometry and strict material requirements (17-4 PH stainless steel) also bring great challenges to the processing efficiency and precision control—especially for achieving the H900 hardness standard required by the client.

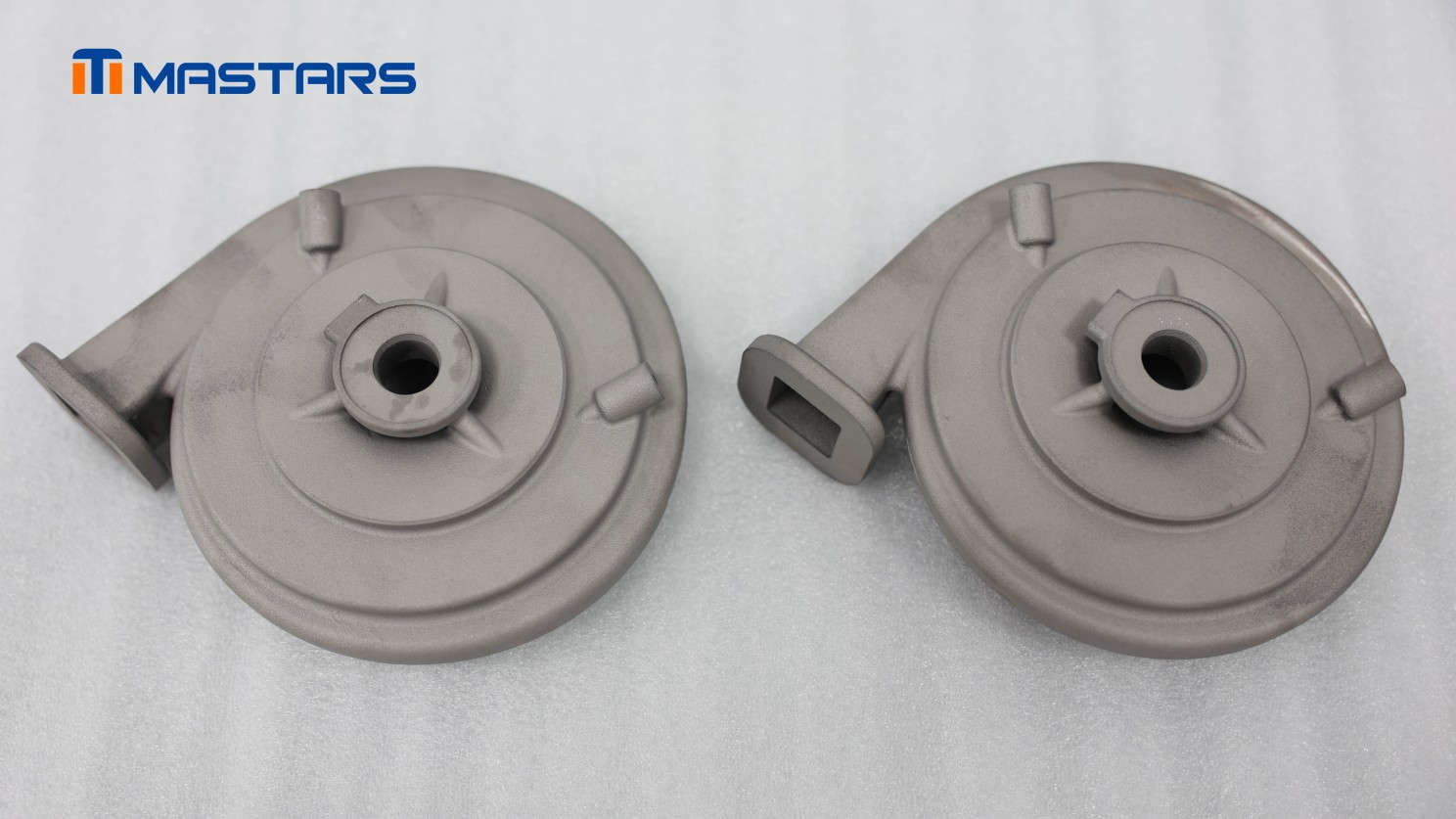

Pump housing prototype showcasing preciese structural details.

Mastars Manufacturing Approach

Facing the Australian client’s custom needs and urgent delivery requirements, Mastars’ prototype department demonstrated exceptional rapid response capability: upon receiving the client’s drawings, our team completed process evaluation and launched production within 24 hours, fully solving the client’s pain point of tight delivery time. The entire processing process is strictly controlled to ensure both efficiency and quality, with clear and standardized steps that prioritize precision and performance alignment.

First, we use 17-4 PH stainless steel (a precipitation-hardened alloy ideal for high-precision components) for 3D printing to form the rough outline of the pump housing, laying a solid foundation for subsequent precision processing; then, we perform precision heat treatment on the printed part, strictly controlling the temperature between 35°—45° to achieve the client-specified H900 hardness standard, ensuring the material’s hardness and structural stability to avoid deformation during CNC machining; next, we conduct high-precision CNC machining on the part, focusing on the key structures such as the volute casing, central bore, and mounting lugs, with a machining tolerance controlled within ±0.01mm to meet strict dimensional requirements; after machining, professional full-process detection and evaluation are carried out to eliminate any defects affecting performance, with a 100% qualification rate for critical dimensions, and finally, the product is packaged and shipped, delivering the high-quality custom pump housing to the Australian client at the fastest pace.

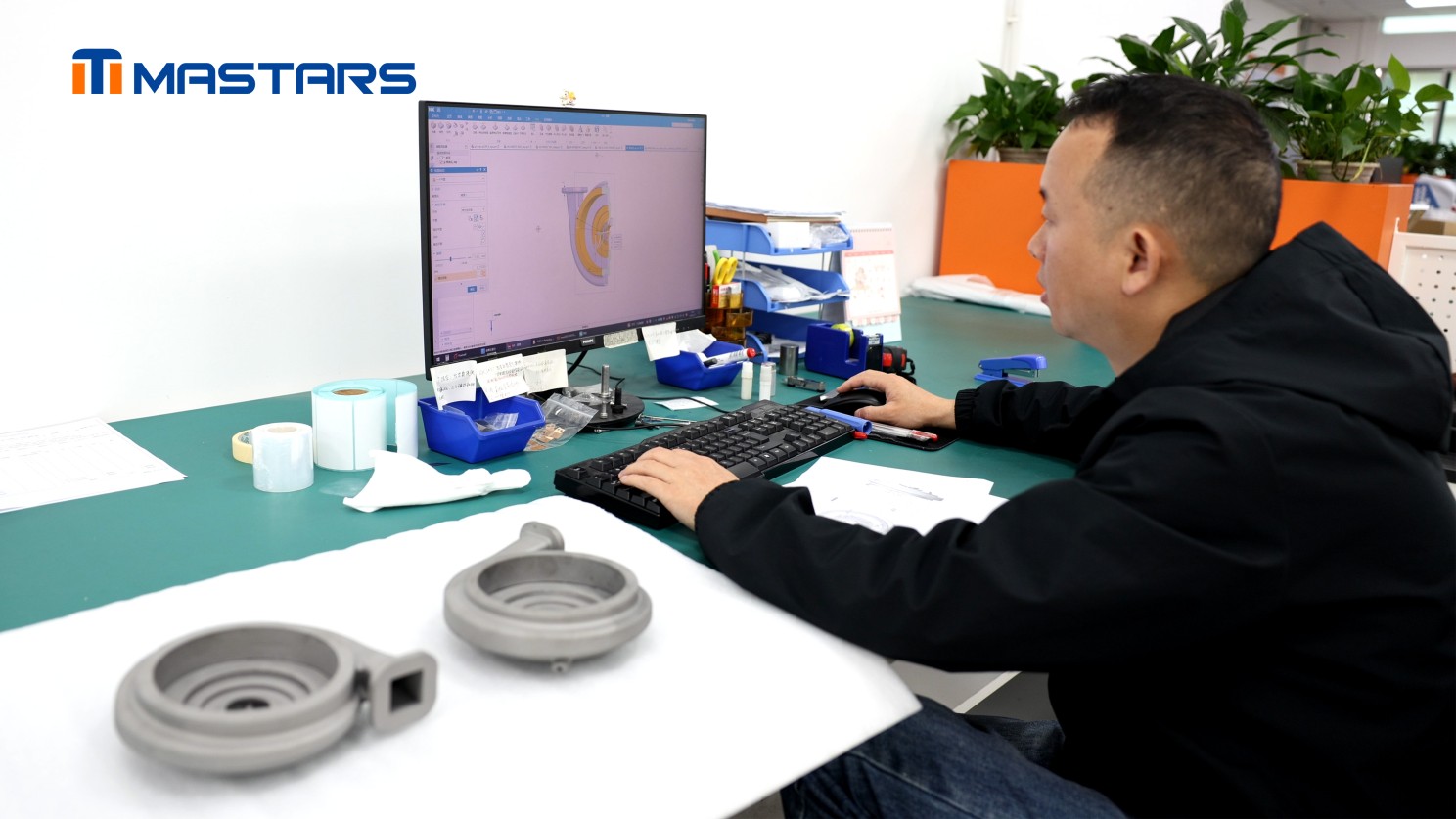

Engineering review supporets faster prototype optimazation.

Client Core Value

Client core value: Rapid response to custom orders, high-precision and high-quality pump housings that meet 17-4 PH stainless steel material requirements and H900 hardness standard, ensuring on-time delivery to support the client’s project progress.

✅ 24-hour rapid response to drawings, realizing fast order launch and delivery

✅ 17-4 PH stainless steel + precision heat treatment (35°—45°), achieving client-specified H900 hardness

✅ CNC machining with ±0.01mm tolerance, ensuring dimensional accuracy and assembly alignment

✅ 100% qualification rate via full-process detection, eliminating defects and ensuring product reliability

✅ Fastest shipping rhythm, avoiding delay of the client’s project schedule

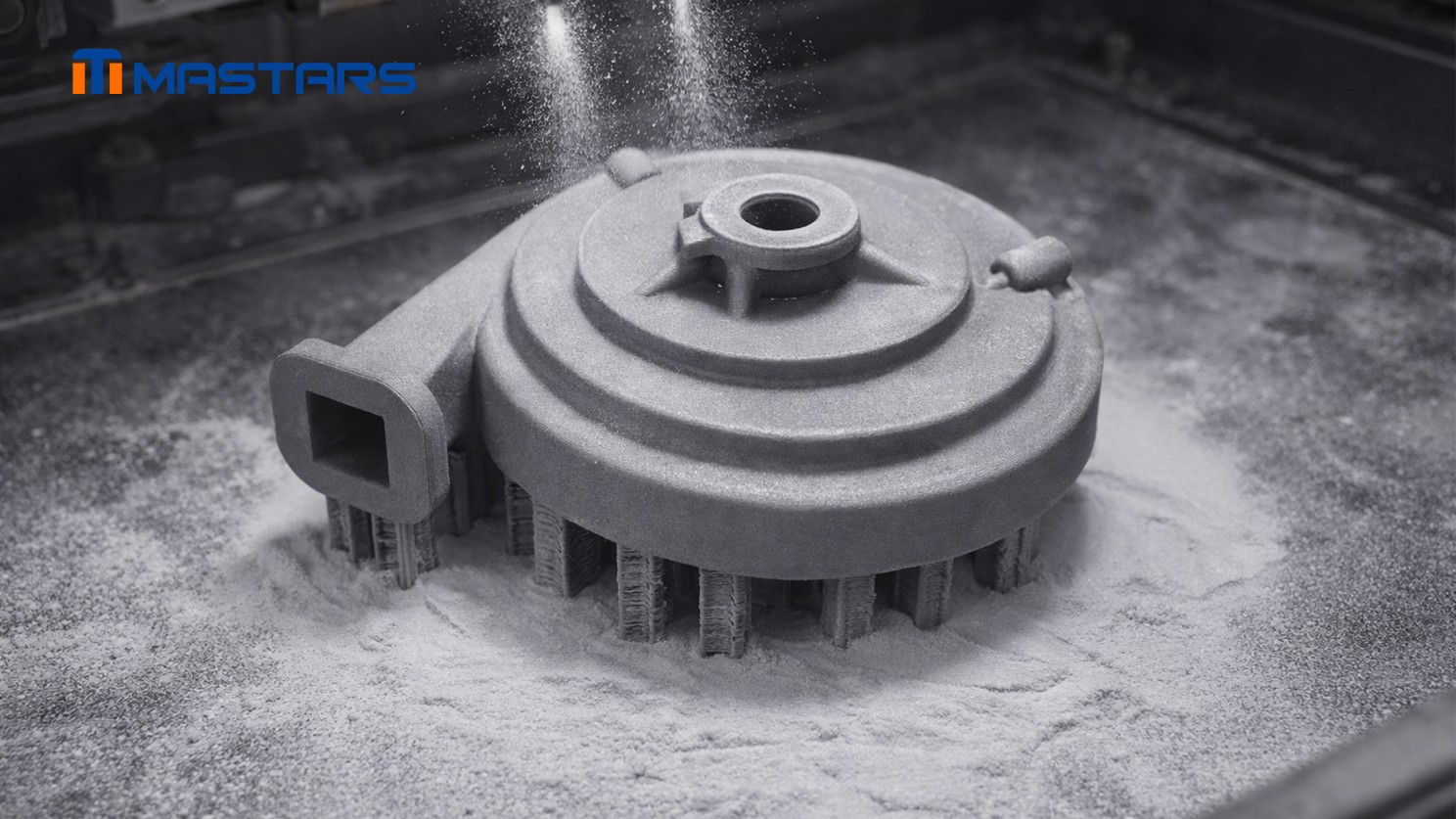

3D pringting for rapid validation of complex geometry.

Next Steps for Collaboration

Custom precision components like this Australian client’s pump housing often face dual pain points: complex processing technology and urgent delivery time, which are common challenges across multiple industrial sectors.

• Industrial pumps — custom volute casings and impeller housings
• Compressor systems — precision inlet and outlet manifolds
• Fluid transfer equipment — custom valve bodies and ported housings
• Hydraulic systems — high-precision pressure vessel components

If your custom project also faces difficulties in material selection, complex processing, or urgent delivery, what specific requirements do you have for material performance, processing precision, or delivery time? Reach out to Mastars, and our prototype department’s rapid response capability and professional processing technology will help you solve these pain points and achieve project goals smoothly.
