Large Injection Mold for Automotive Grille with Diamond Pattern Cavity

Engineering Teams Handling Large Mold Structures

A European automotive industry client approached Mastars during the transition from product development to mass production. Their existing tooling struggled to maintain stable molding performance, creating risks for production readiness.

The images show a large injection mold designed for a grille-style plastic component with a repeating diamond lattice pattern. The wide cavity surface and dense geometry introduce engineering complexity in machining, alignment, and structural stability across the mold plate.

Such tooling requires careful planning to maintain consistent positioning and appearance across the molded part. The visible geometry suggests typical demands such as fit and alignment control, appearance consistency, and repeatable manufacturing performance across a large cavity surface.

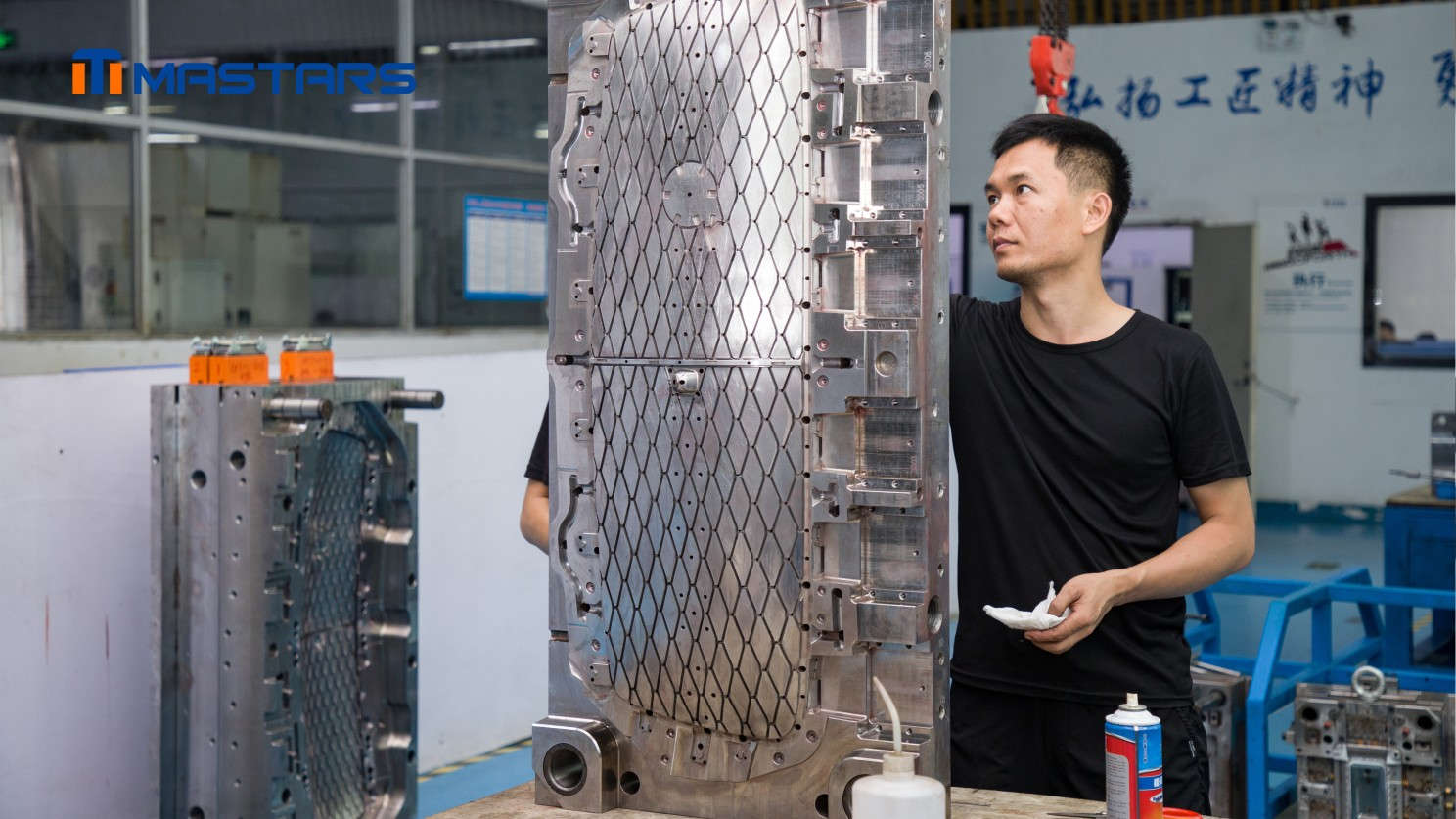

Large diamond-pattern mold inspection during precision mold manufacturing and dimensional verification.

Structured Mold Engineering Workflow

Large mold manufacturing involves more than machining capability. Maintaining dimensional stability across a large mold plate while preserving dense cavity geometry is a demanding engineering task.

To address this challenge, Mastars developed a structured manufacturing workflow. The process moves through mold design, mold steel preparation with heat treatment, CNC rough machining, semi-finishing, EDM and wire EDM for detailed geometry, finishing and surface treatment, mold assembly, and mold trial validation.

Mastars applies an integrated engineering approach combining DFM review, staged machining strategy, fixture planning, and inspection checkpoints throughout the mold build process. With more than 20 years of mold manufacturing experience, Mastars supports customers in developing customized tooling solutions that help stabilize product development and support production launch.

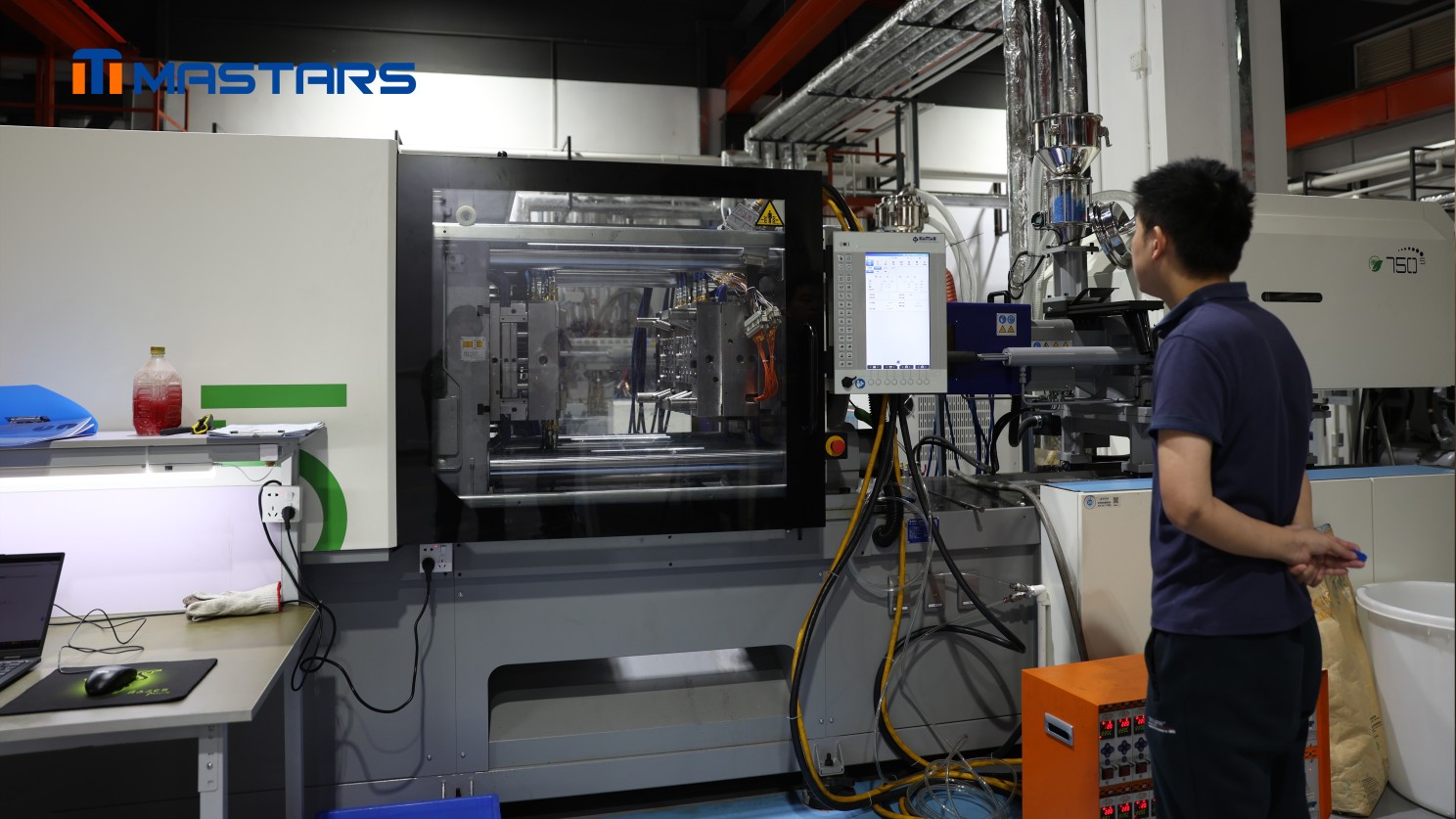

Injection mold trial validating cavity aligment, molding stability, and repearable production performance.

Reliable Tooling Supporting Product Manufacturing

Client core value: Stable tooling foundations enabling reliable product manufacturing.

✅ Ensures stable alignment across large cavity surfaces and complex patterned geometry

✅ Supports repeatable molding performance through controlled machining and inspection planning

✅ Helps maintain appearance consistency for grille or lattice-style molded components

✅ Reduces manufacturing risks during mold trial and early validation stages

✅ Enables smoother transition from tooling completion to production readiness

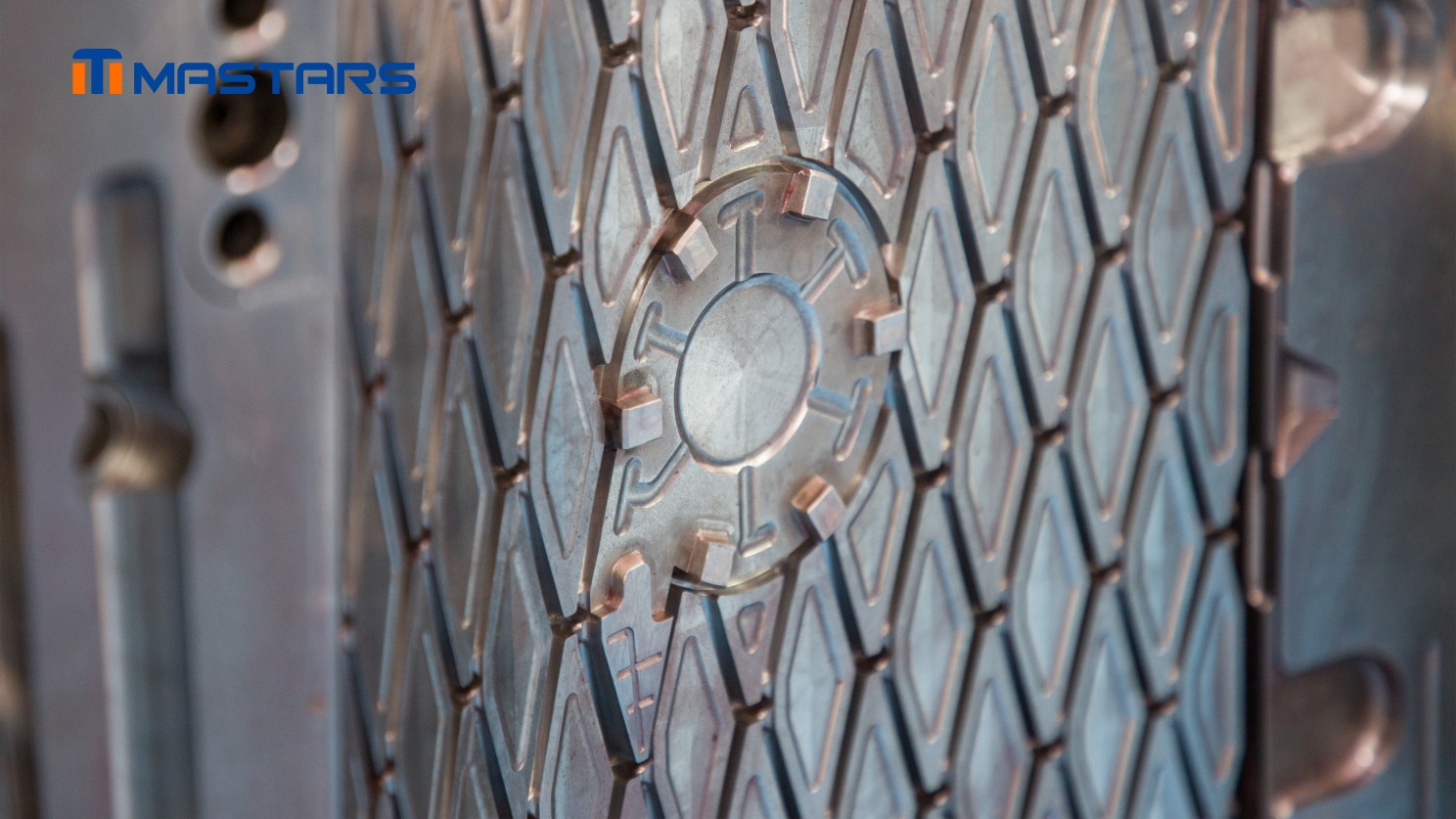

Precision CNC-machined cavity surface showing controlled toolpaths and uniform diamond-pattern geometry.

Tooling Discipline Across Industries

If you are developing large structural plastic components in other industries, similar tooling discipline applies.

Industries and core products that benefit include:

• Automotive interior structural panels
• Appliance exterior housings
• Industrial equipment enclosures
• Outdoor infrastructure casings

Are you planning a tooling program requiring structural rigidity and repeat alignment control? Talk to Mastars about your next precision mold manufacturing and validation project.
