Solving Insert Molding Control Challenges for Water Treatment Impellers

Hidden Requirements in Water Treatment Operation

Why does the center thread of an insert-molded impeller still need close attention after the first sample is approved?

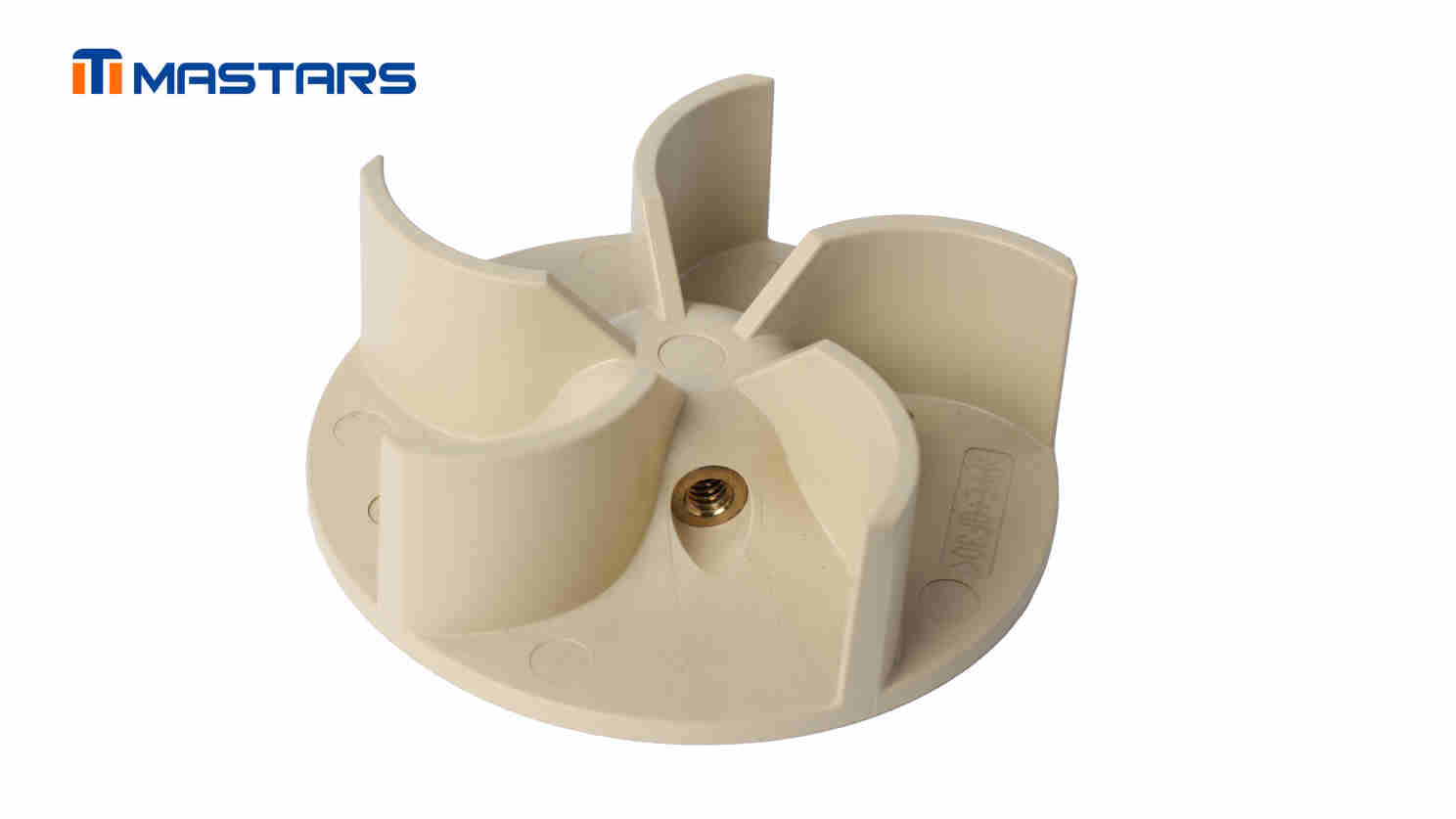

For pump, filtration, and water treatment equipment manufacturers, this PPE+GF30 centrifugal impeller is more than a molded plastic part. Its curved vanes, circular base, and center threaded brass insert must remain stable when the impeller is locked to the motor shaft and used in a wet operating environment.

Once a low-volume order begins, the pressure is no longer just about whether the shape can be molded, but whether the center insert stays aligned, whether the thread can withstand repeated locking, and whether the reinforced plastic body can maintain dimensional stability after wet operation.

For the equipment supplier, these details can affect project approval, assembly consistency, and later rework risks. That is why Mastars reviews insert positioning, material behavior, and molding control points before the part moves further into production.

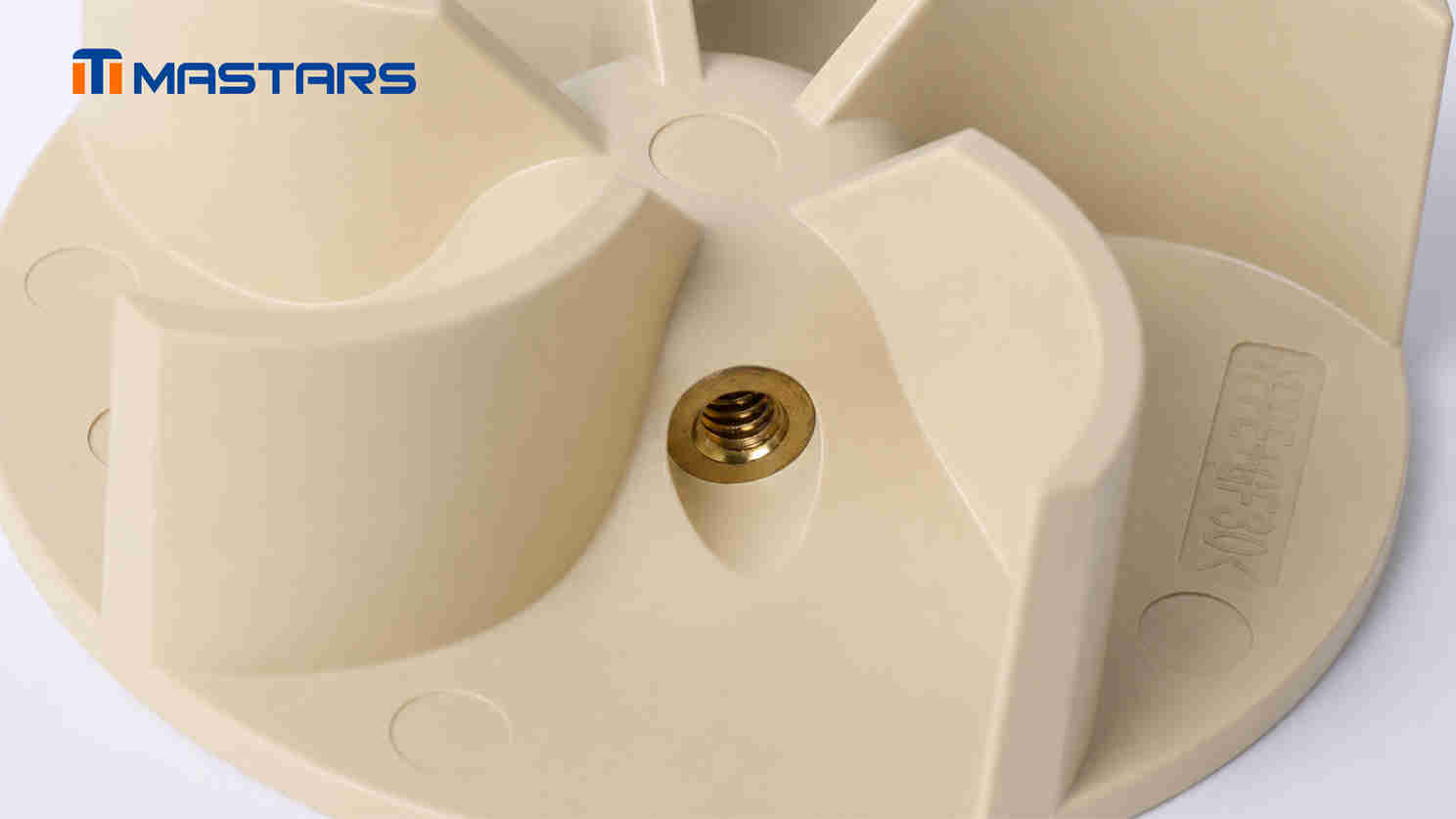

Center brass threaded insert detail.

Center Insert Control Before Molding

If the metal insert shifts, the thread area wears too early, or the molded plastic around the hub is not stable enough, the center area can become the weak point of the impeller. The key risks are insert misalignment, repeated locking wear, wet-condition dimensional change, and unstable assembly feedback. If these points are not controlled before molding, the part may look acceptable, but still create problems during assembly or later use.

At Mastars, the center brass threaded insert is pre-positioned on the mold core before mold closing, and molten PPE+GF30 wraps the metal insert during injection molding. Mastars connects DFM review, mold planning, insert positioning, material behavior, critical feature control points, and traceable inspection records. This turns the insert molding process from a single molding step into a more controlled delivery route for the customer.

An engineer checks the impeller for detail accuracy.

Customer Gains at the Delivery Level

Mastars helps water treatment customers improve the impeller’s center connection, threaded locking, and wet-condition stability through insert molding with a center threaded brass insert and PPE with 30% glass fiber reinforcement.

For this impeller, the value becomes clearer in several delivery points:

✅ 30% glass fiber reinforcement, with a typical tensile modulus around 8500 MPa, improves structural rigidity.

✅ Around 0.1% water absorption helps reduce wet-condition dimensional change.

✅ A typical HDT of around 137°C at 1.8 MPa supports stability under temperature rise.

✅ The center threaded brass insert supports motor-shaft locking and repeated assembly.

✅ Insert molding makes center positioning and inspection records clearer.

Center brass threaded insert detail.

From Impellers To Similar Programs

This pressure is not limited to one water treatment impeller. Whenever a part combines metal threads, reinforced plastics, repeated assembly, dimensional stability, and wet or rotating use, the same engineering questions appear. The customer needs a part that can be approved, assembled, and produced again with fewer hidden risks. That is why similar control logic can be applied across more product categories.

Similar engineering requirements often appear in these areas:

• Water treatment — pump impellers and dosing pump rotors

• Home appliances — pump hubs and fan wheels

• Industrial equipment — reinforced plastic rotors with metal inserts

• Fluid control — valve handles and threaded flow component

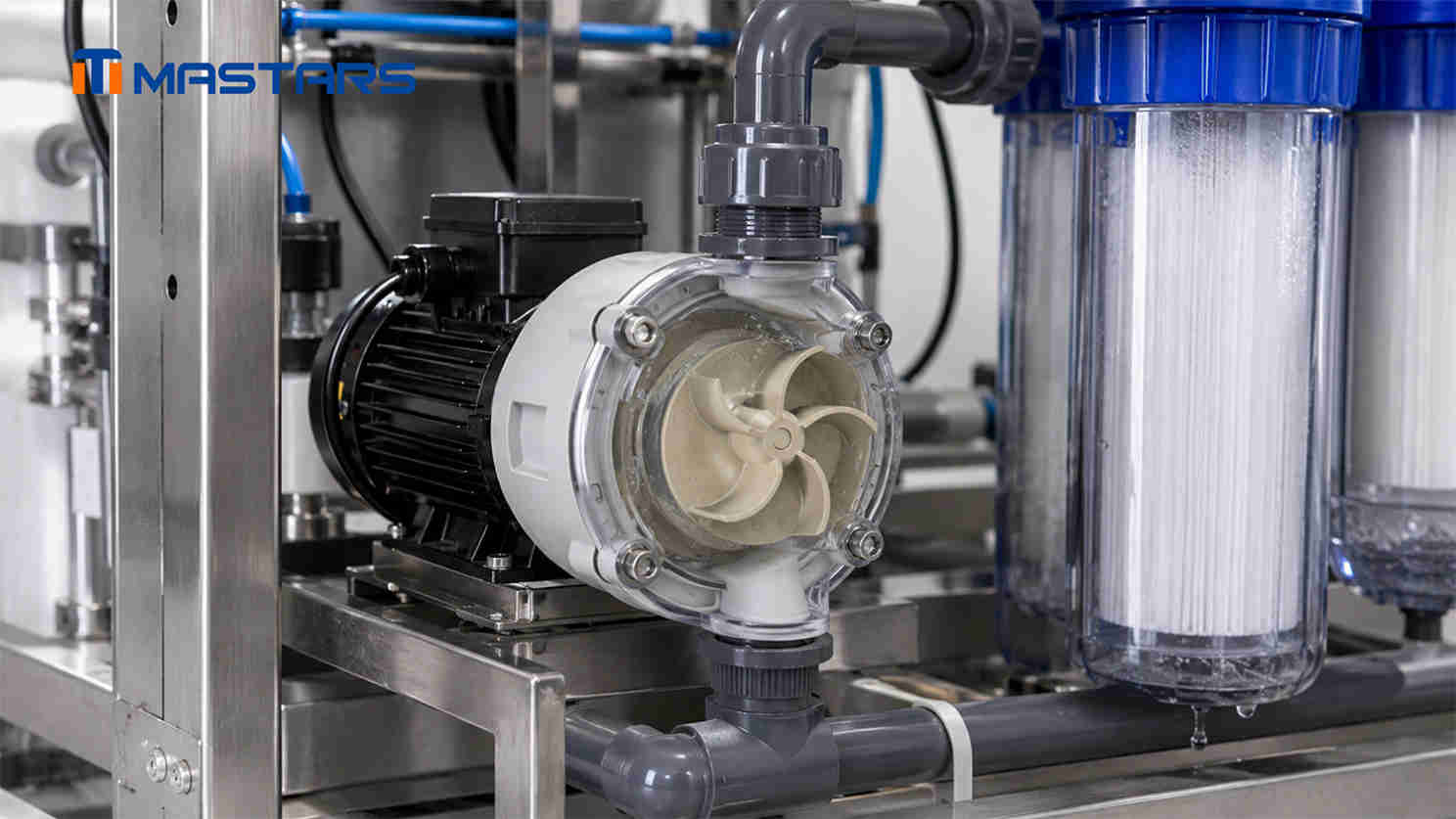

A conceptual view of the impeller in a water treatment pump system.

If your project involves insert molding, reinforced engineering plastics, threaded locking, or wet-condition use, the right discussion should start before tooling and molding decisions are fixed. What connection, thread, material, or inspection requirement are you trying to control? Contact Mastars to review your part structure and low-volume production plan.
