Modular SheetMetal Plastic Rack Manufacturing for Compact Personal AI Servers

Cooling and Alignment Questions for AI Racks

How do you build a personal AI server rack that safely supports high‑power GPUs while keeping the system cool and easy to maintain? This modular frame we build for an European client, combining sheet‑metal panels and polymer inserts provides a compact housing for home AI clusters or research desktops. These racks are common in personal AI setups where you need to fit multiple GPUs, route cables neatly, and shield sensitive electronics.

The housing shows a combination of bent steel plates with punched ventilation slots, circular openings and flanges, together with injection‑moulded inserts containing ribs and bosses. Primary requirements include precise fit and alignment for boards and GPUs, effective thermal management through vents and slots, and durable materials and surfaces that are safe to handle.

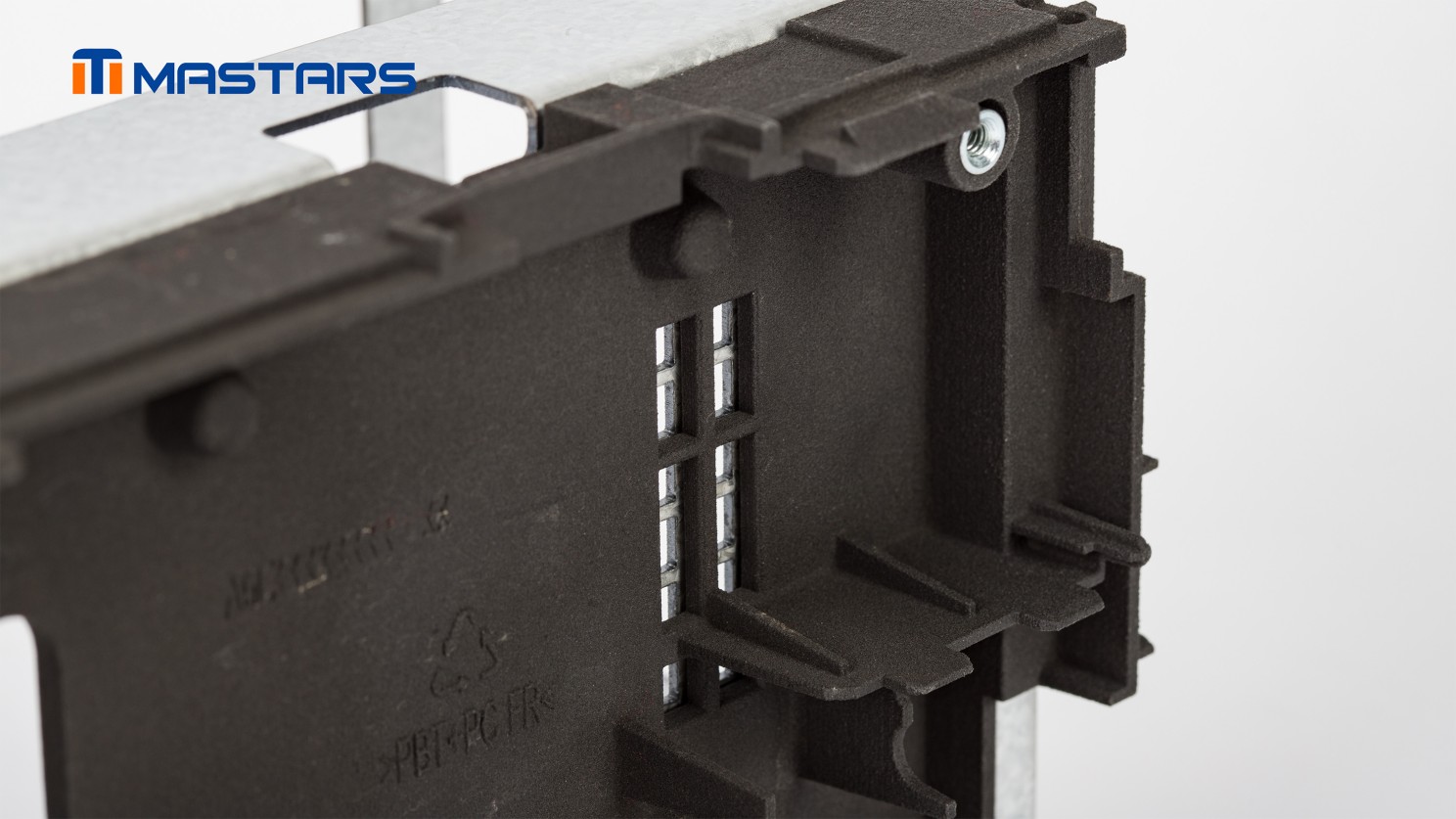

Molded plastic inner frame with reinforcing ribs and bosses provides aligment and rigidity.

Design Controls for Sheet‑Metal AI Racks

What makes this rack different is the way Mastars balances structure and ventilation. Keeping GPUs aligned while letting heat escape requires precision sheet‑metal forming and polymer moulding. Our engineers jump in early with design‑for‑manufacturability suggestions on slot patterns, hole sizes and rib spacing. We start by laser cutting and bending the steel plates; then we stamp ventilation slots and circular openings. Injection‑moulded inserts with ribs and bosses snap into the frame.

During assembly, fixtures align metal and plastic parts, and gauges and coordinate‑measuring machines verify flatness and hole positions. Every build is documented for traceability.

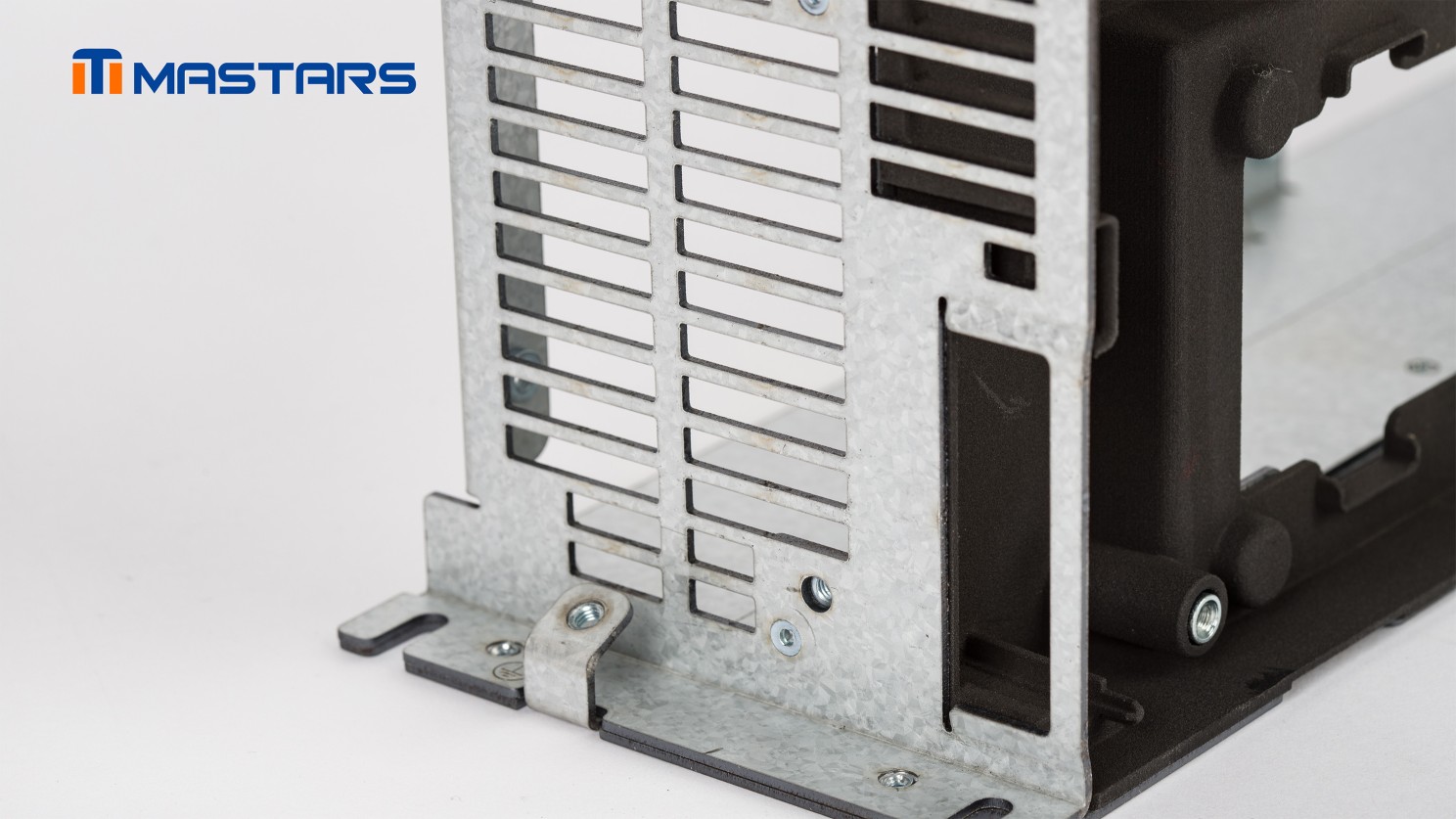

Metal panel with punched ventilation slots and plastic support showing airflow and assembly detail.

Results for Home AI Systems

Your payoff: a small rack that keeps highpower GPUs cool and aligned.

•  Balanced ventilation keeps GPUs and CPUs within safe temperatures

•  Precise mounting features eliminate stress on boards

•  Modular design lets you upgrade without tools

•  Smooth edges reduce noise and protect cables

•  Documented builds ensure repeatability across units

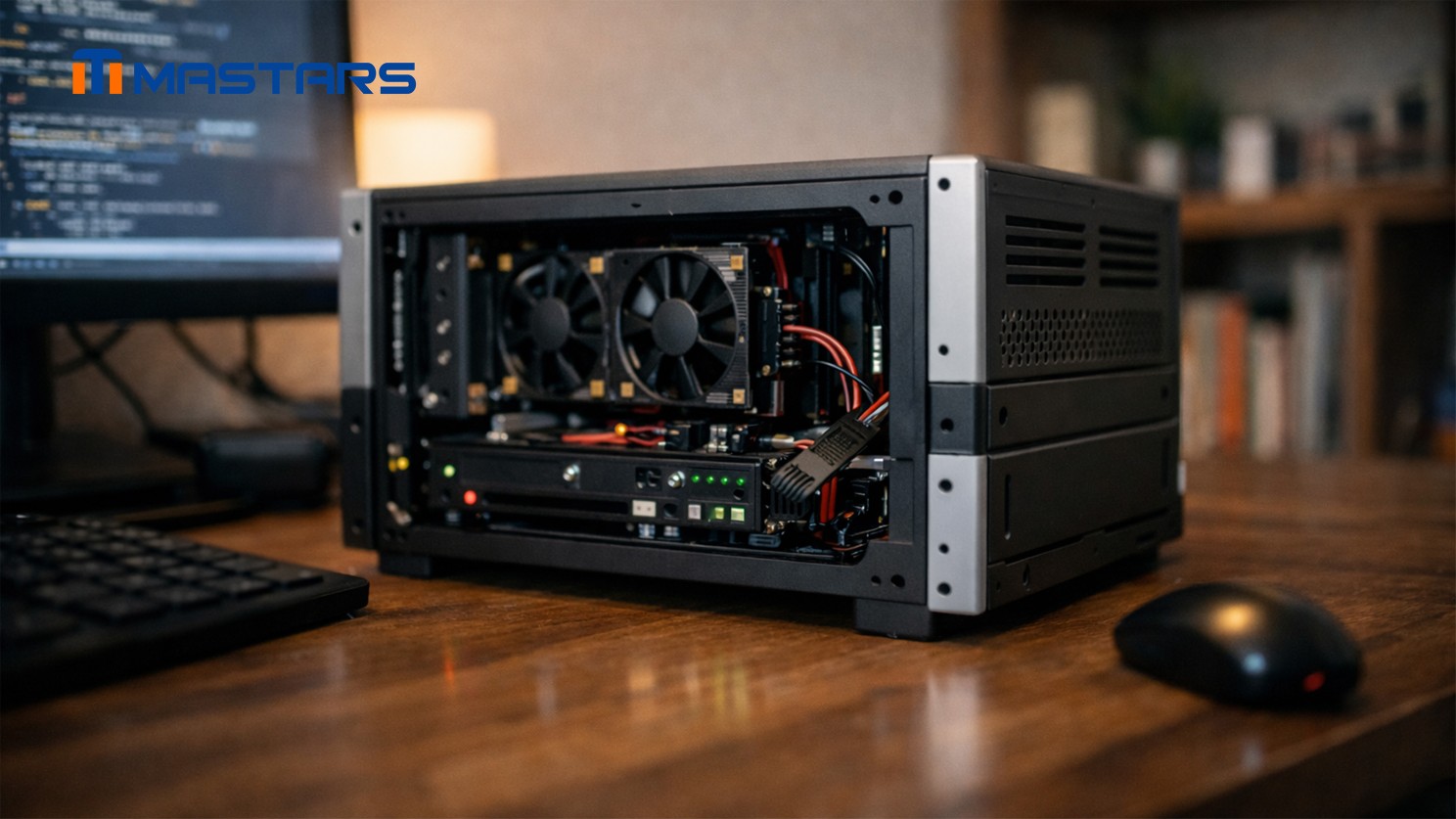

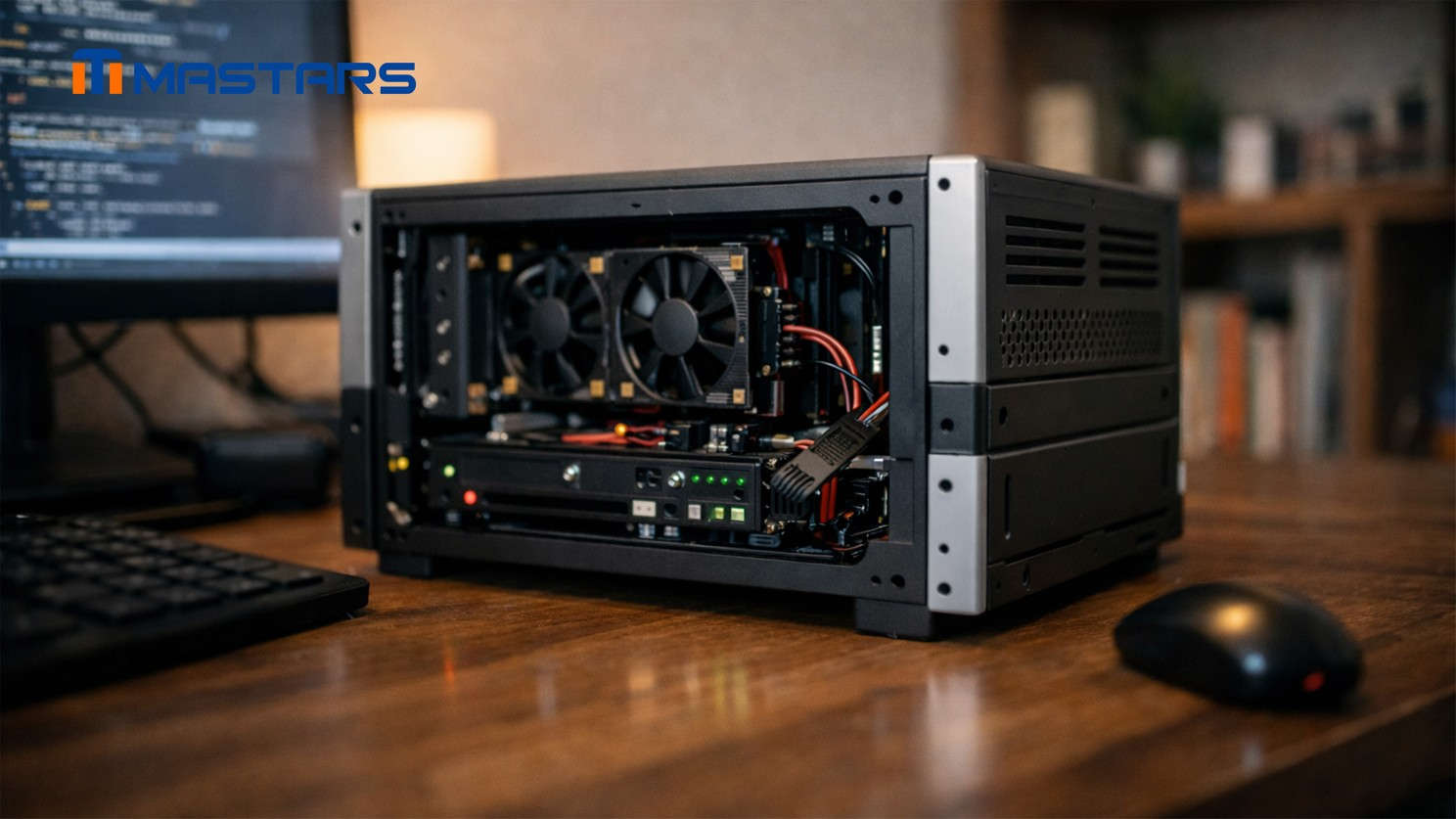

Compact AI server rack in a home office powering GPUs, keeping coponets cool beside monitor and keyboard.

Design Lessons Across Many Industries

This challenge isnt unique to personal AI Anytime you house electronics in a tight space you must juggle support cooling and access Whether your gear sits at home in a factory or in a lab the same principles apply.

• AI research labs  desktop GPU clusters

• Gaming rigs  multiGPU frames

• Media production  portable render boxes

• Educational makerspaces  compute modules

• Robotics startups  embedded AI controllers

Are you working on a compact AI rack or electronics enclosure Share your requirements and see how Mastars can help.
