Mastars Custom-Manufactures Insulated Busbars for a U.S. Customer, From Prototype Validation to Stable Mass Production

From Prototype To Production

These orange insulated busbars were custom-manufactured by Mastars for a U.S. customer. The project started with prototype validation, but the real goal was never just to make one successful sample. It was to move the part into stable production with repeatable bending accuracy, controlled insulation coverage, and reliable assembly performance.

For the customer, the pressure came after the first samples were approved. Each batch had to keep the same metal forming profile, exposed contact areas, hole positions, and insulation boundaries. If one detail shifted, the part could still look acceptable, but create problems during installation, electrical connection, or final assembly.

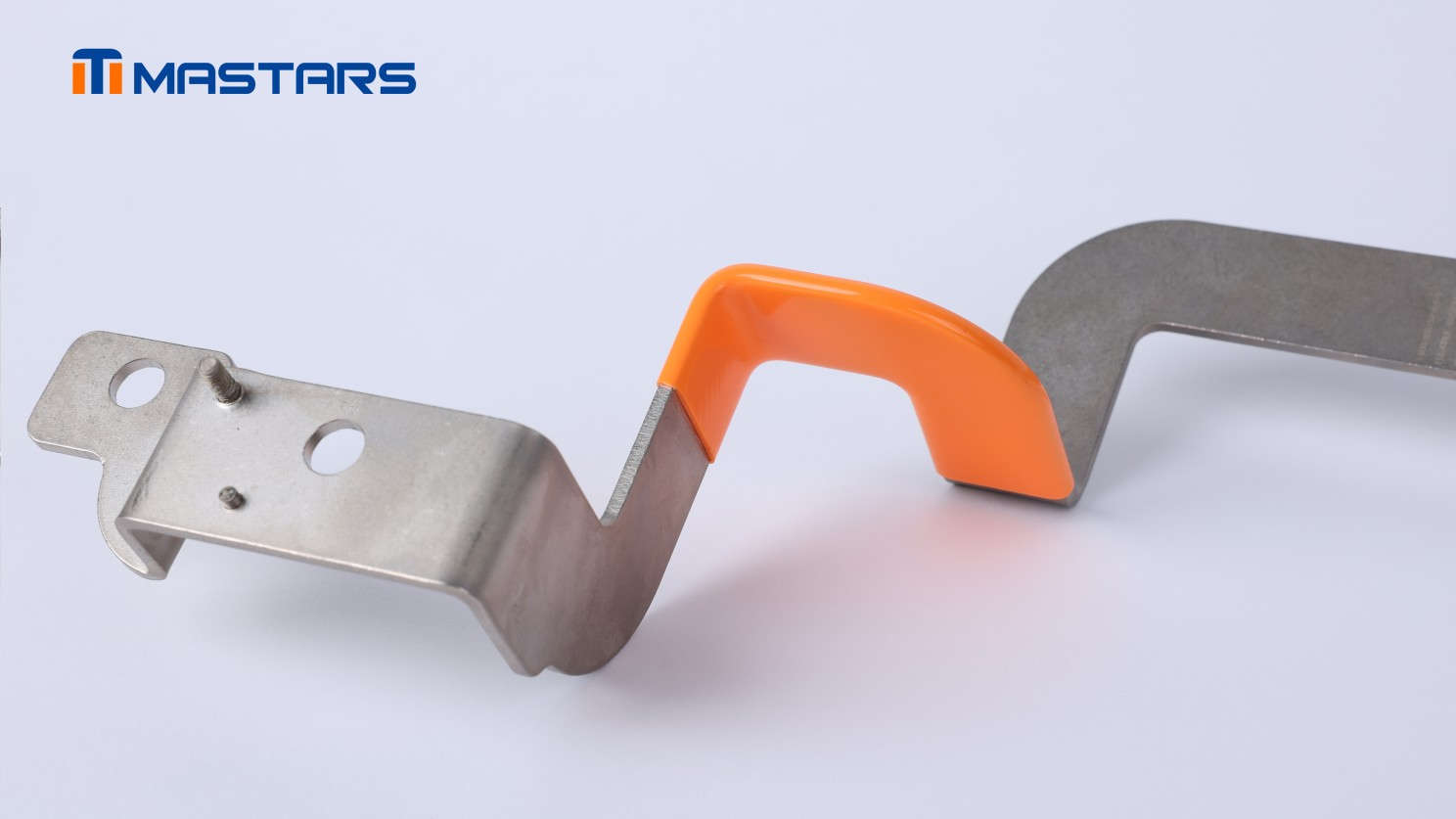

Final formed insulated busbar assembly.

Process Control Behind Insulated Busbars

An insulated busbar may look like a simple, formed metal part, but its real manufacturing risk is hidden in process control. The metal profile, bend radius, hole-position datum, conductive contact area, masking line, insulation coverage, and final inspection points all need to be controlled as one system. If springback, coating thickness, or masking accuracy shifts even slightly, the part may still look acceptable on the table, but later create assembly mismatch, electrical connection issues, insulation risk, or unstable batch quality.

That is why Mastars did not treat this U.S. customer’s insulated busbar as a simple bent metal part. From prototype validation to stable production, Mastars coordinated metal forming, local insulation treatment, surface preparation, fixture planning, and inspection verification, helping every batch become easier to inspect, easier to assemble, and more repeatable to deliver.

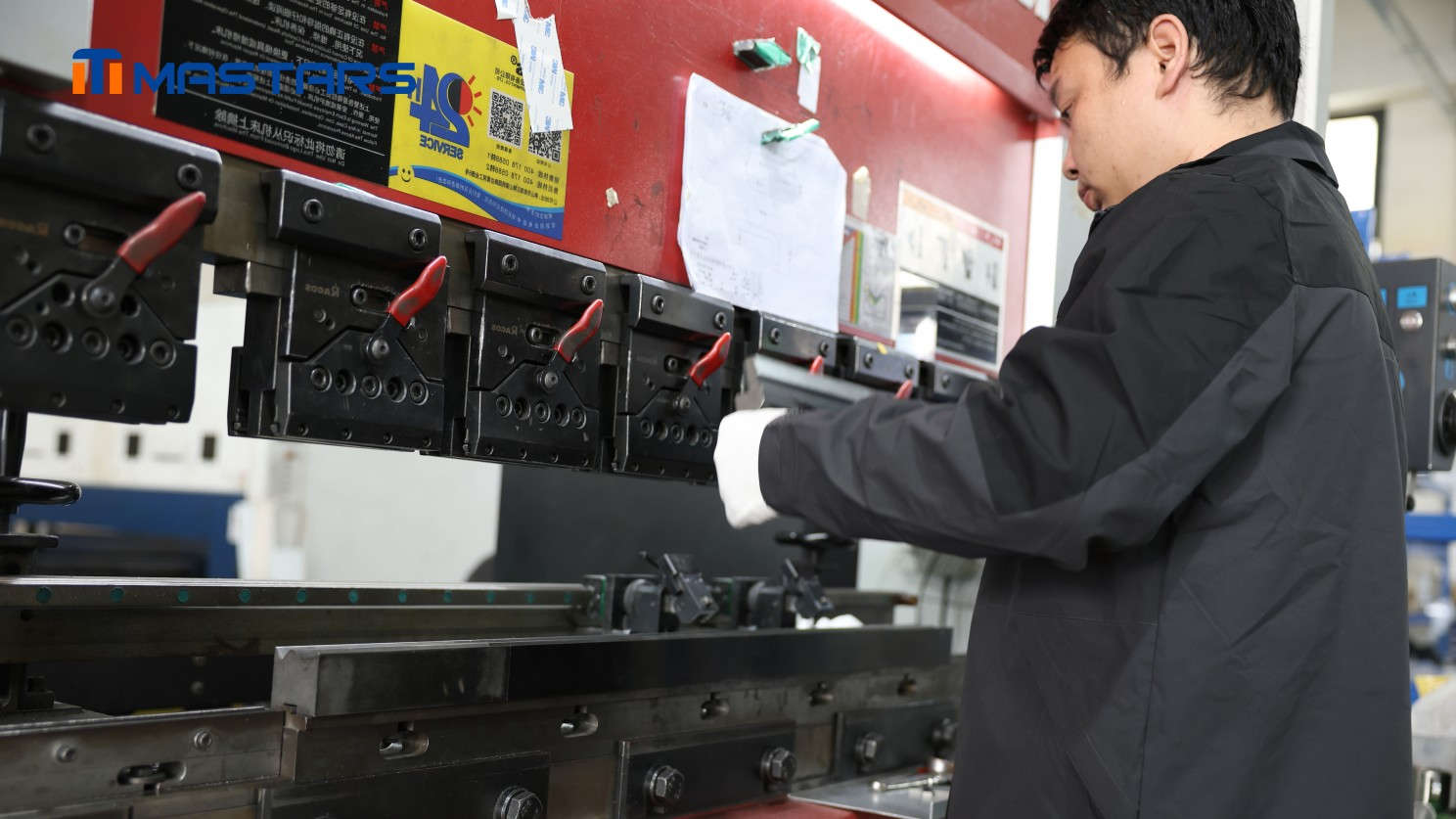

Precision control during bending.

Practical Gains For Customers

Mastars helps customers turn custom insulated busbars from prototype validation into stable, inspectable, and repeatable production parts.

In practice, the value shows up in several key areas:

✅ Early bending validation and hole-position review can help reduce assembly mismatch risk by around 30%

✅ Pre-batch review of coating, masking, and forming risks can reduce about 1–2 rounds of rework

✅ The transition from prototype validation to batch production can be shortened by around 20%–30%

✅ Clear control of insulated and conductive zones improves assembly and electrical reliability

✅ One-stop coordination across metal forming, insulation coating, assembly, and inspection

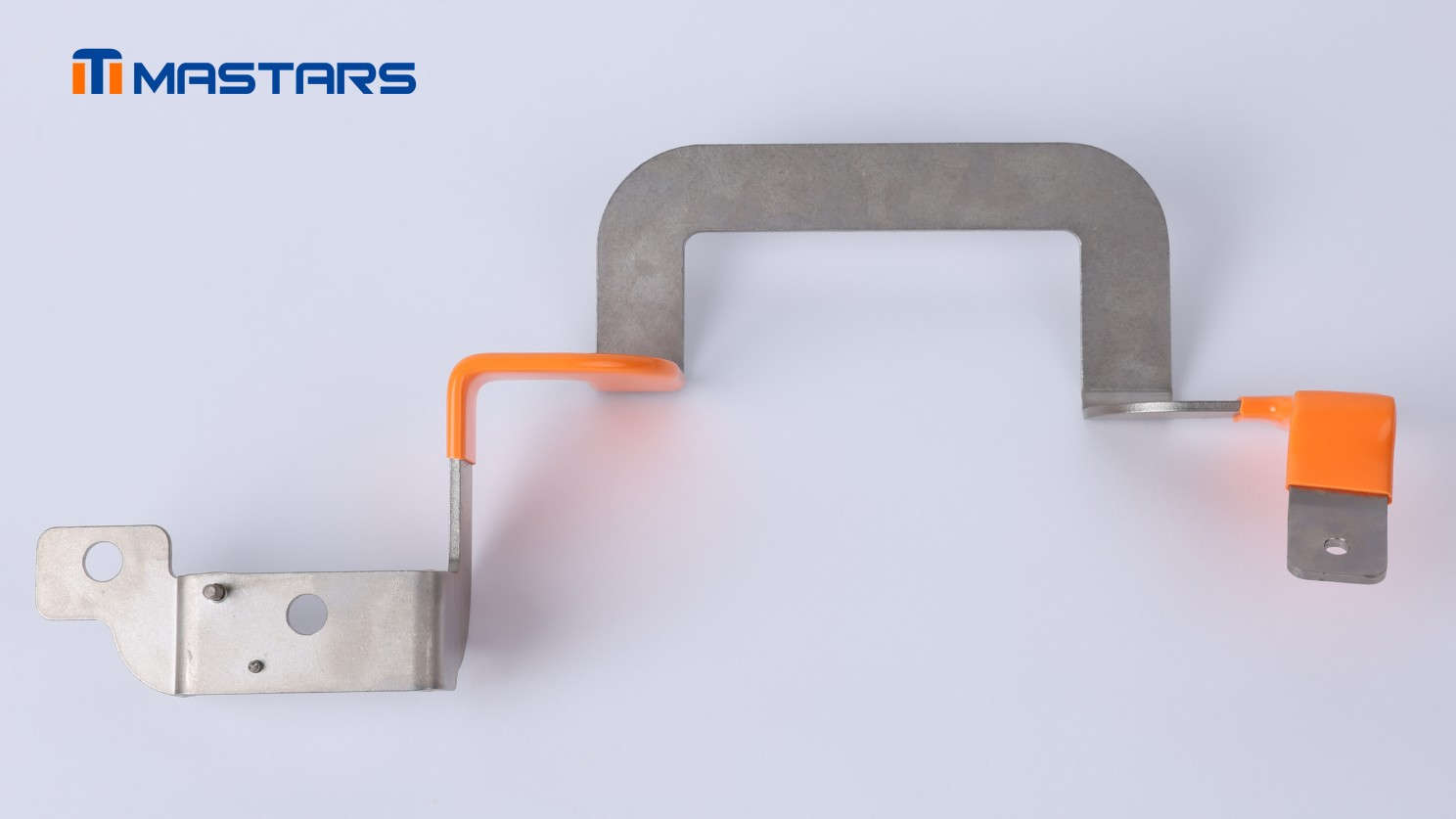

Insulation boundary and contact zone details.

Build With Fewer Risks

This type of pressure is common in products that combine metal conductivity, insulation protection, mechanical fixing, and batch assembly. Once the product moves beyond prototype samples, the customer needs more than a supplier who can “make the shape.” They need a manufacturing partner who can control the full process.

Similar needs appear in these applications:

• Electric vehicles — insulated busbars for battery packs
• Power electronics — conductive connection components
• Energy storage systems — insulated current-carrying parts
• Industrial equipment — electrical connection assemblies
• Automation systems — formed conductive metal components

Does your insulated busbar or conductive metal part look simple, but create repeated issues in bending, coating, assembly, or batch consistency? Contact Mastars to review the manufacturing route before production risk increases.
