Custom Die-Cast Magnesium Motor Housing with Ribbed Features for an Australian Client

What This Housing Had To Deliver

This die-cast magnesium motor housing was custom-manufactured by Mastars for an Australian client. How do you keep geometry, alignment, and exterior consistency under control when one housing carries ribs, openings, bosses, and mounting faces in a compact body?

From the externally visible structure, this part fits the direction of a compact motor or drive housing where fit, repeatability, and surface stability matter together. The large circular opening, ribbed front section, top port features, and integrated mounting areas all point to a part that must stay stable through casting, follow-up machining, and assembly.

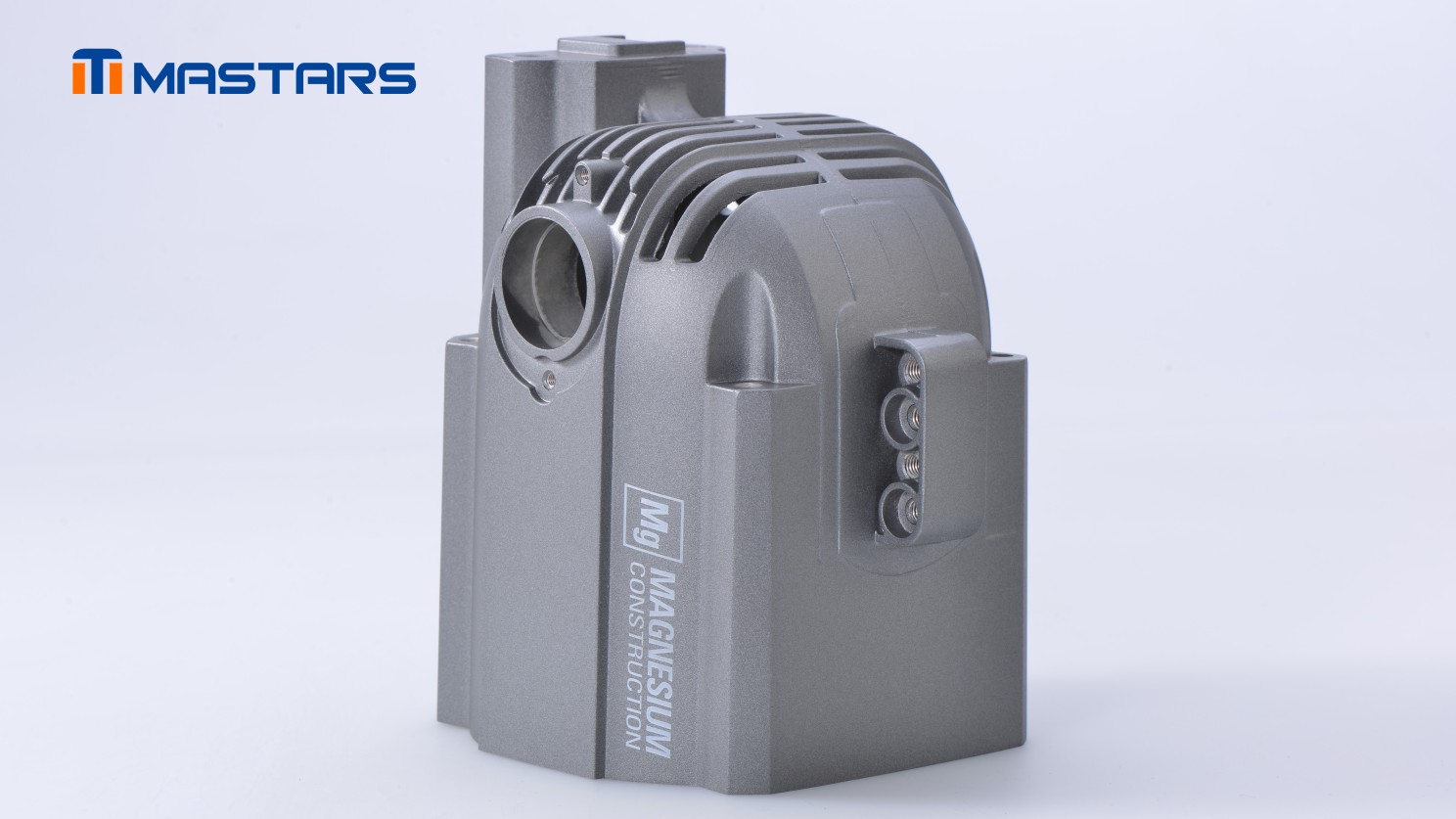

Side view highlights geometry control, interface layout, and structal integration.

From Casting To Finished Housing

Mastars handled the project as a one-stop manufacturing service covering DFM review, tooling coordination, die casting, secondary machining, surface finishing, and final inspection. The finished housing shows a uniform matte metallic gray appearance, consistent with fine blasting followed by a protective gray coating route that supports a cleaner exterior and more stable downstream handling.

The main technical difficulty was not only forming the housing, but also holding rib transitions, side openings, datum faces, and mounting features in a controllable relationship for later machining and assembly. Mastars therefore linked casting control points with fixture planning, critical-dimension checks, surface inspection, functional verification of openings and mounting areas, and traceable records to keep sample approval and repeat production on the same path.

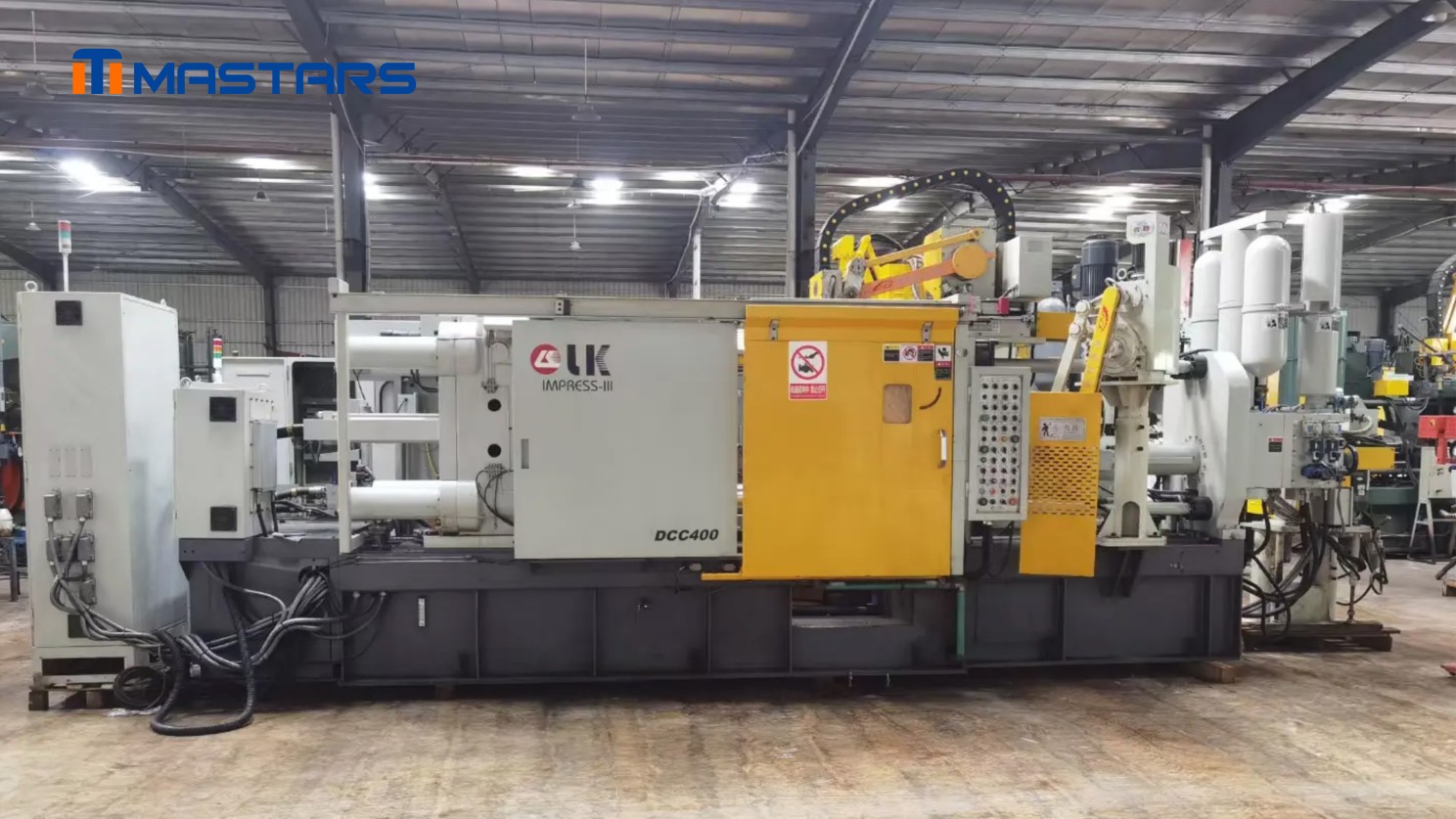

Stable die-casting starts with controlled molding, handling, and raw part consistency.

What Results The Client Achieved

Value to the client: The client gained a low-volume custom magnesium motor housing program with stable assembly, consistent surface finishing, and more predictable delivery control.

✅ Stable rib and opening geometry improves assembly efficiency by 20%–30%

✅ Higher consistency in surface finishing reduces cosmetic rework rates by 15%–25%

✅ Synchronized die casting, machining, surface treatment and inspection shortens project lead time by 2–3 weeks

✅ Secondary machining optimizes mounting surfaces and end-cap fit for smoother downstream assembly

✅ Full traceable inspection records ensure clear quality approval and significantly improved communication efficiency

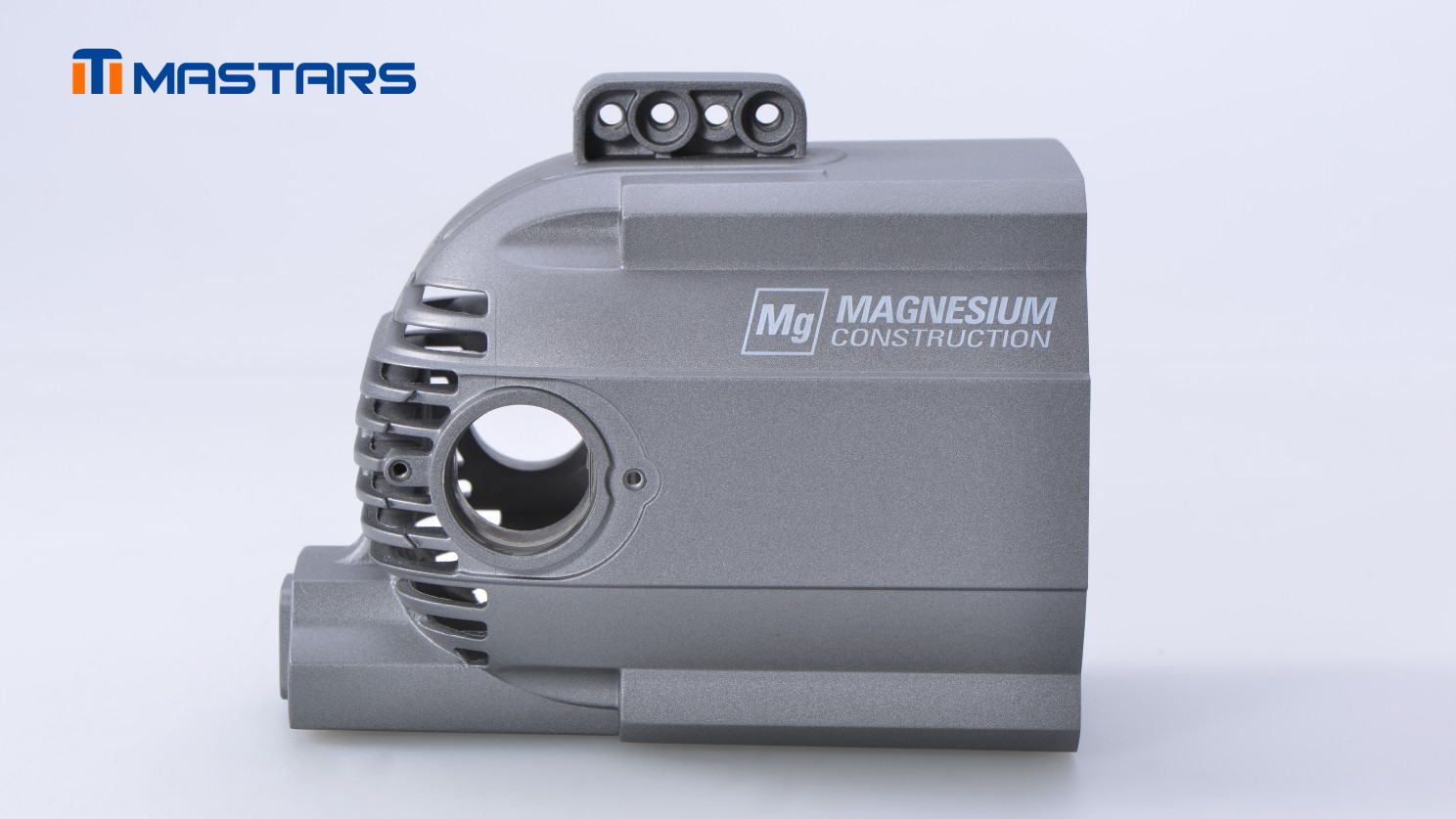

Custom die-cast magnesium motor housing with integrated ribs and multi-face structural features.

Similar Parts Need The Same Discipline

Even when the product is not a motor housing, the same manufacturing discipline appears wherever ribs, openings, cosmetic surfaces, and machined interfaces must work together in one casting. This pattern is common whenever geometry control and appearance control must stay linked.

• Power tools - compact motor housing
• Industrial pumps - drive end cover
• Automation equipment - servo enclosure body
• Outdoor machines - small engine cover

Which interface, rib zone, or finished surface matters most in your current housing program? Contact Mastars to review your drawings, process route, and inspection priorities with one coordinated team.
