Precision Biopsy Needle Manufacturing: Metal-to-Plastic Integration for Minimally Invasive Diagnostics

How do you machine a needle sharp enough to pierce tissue smoothly, yet strong enough to avoid deflection when encountering resistance? This is the core engineering question behind every biopsy needle project. This time we have built great quality medical needles for Austrilian customer. The parts shown are precision biopsy needle assemblies for minimally invasive tissue sampling. The metal cannula provides the cutting and collection path, while the molded plastic hub and grip components give the physician control during insertion and rotation. Such needles are common in CT-guided and ultrasound-guided biopsy procedures, where precise positioning and clean sample collection directly affect diagnostic accuracy.

These assemblies demand precise fit between metal and plastic components, reliable depth control, consistent sharpness at the tip, and a clean surface finish that supports sterile packaging requirements.

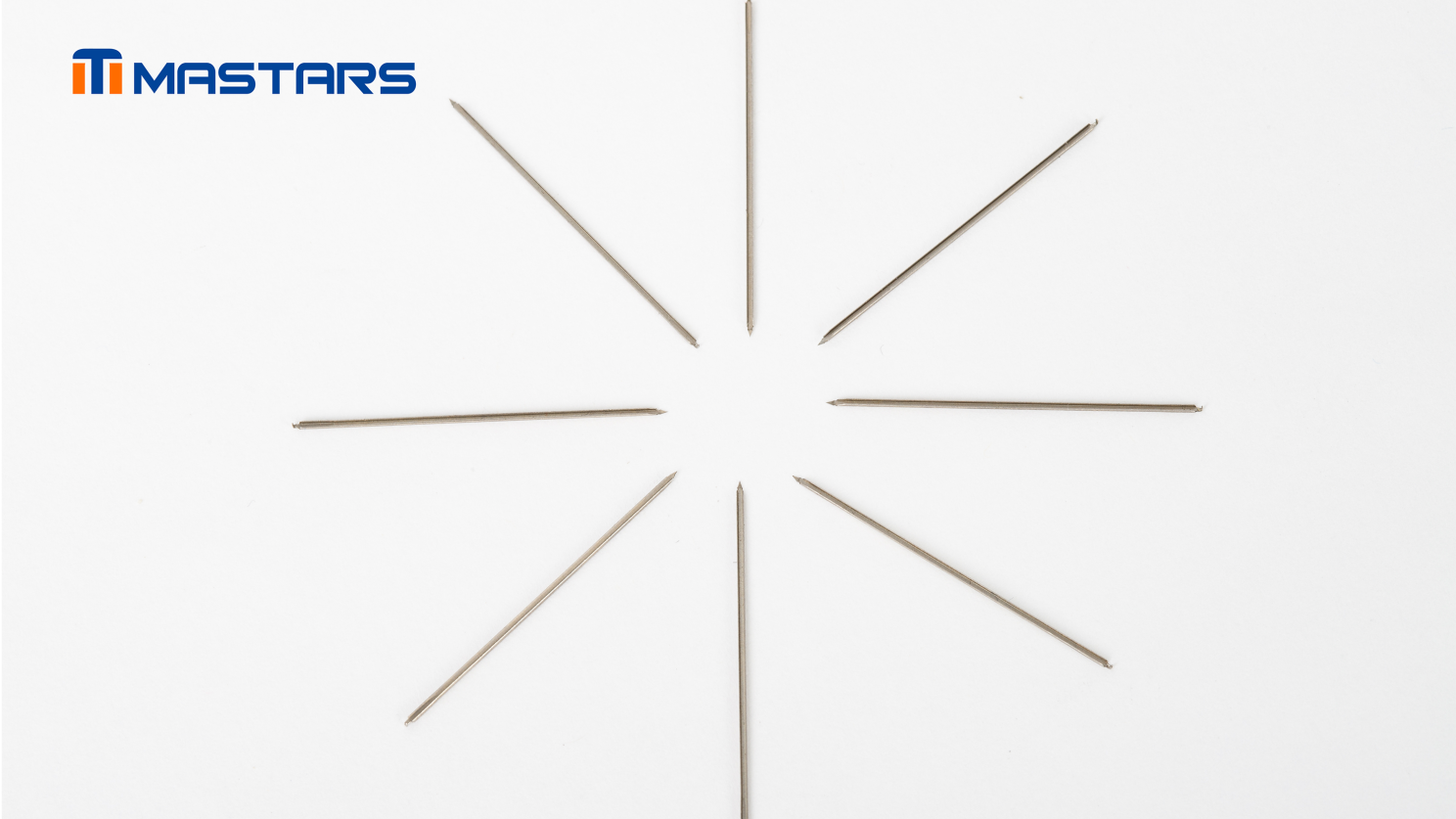

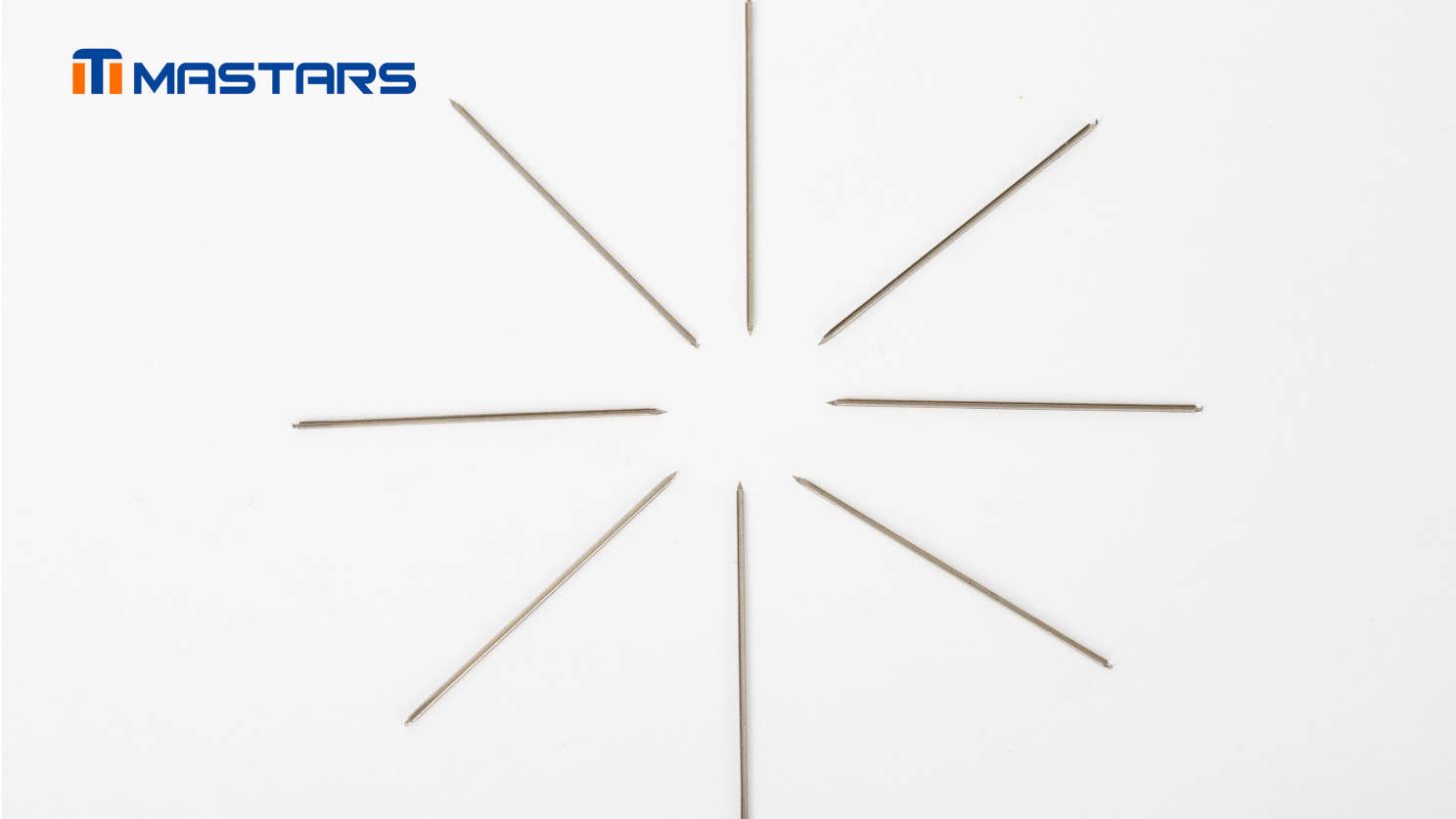

Eight precision stanless steel biopsy needles arranged radially. showcasing sharp beveled tips and concistent cannula geometry.

Integrating CNC Machining and Injection Molding Expertise

The key technical difficulty is maintaining concentricity and sharpness when machining thin-walled stainless steel cannulas with complex tip geometries. Any burr or irregularity at the cutting edge can tear tissue rather than cut cleanly, compromising sample quality and patient comfort.

Mastars approaches these projects with coordinated metal and plastic manufacturing capabilities. For the metal cannula, we use precision CNC grinding and electrochemical polishing to achieve consistent wall thickness and a smooth inner bore. The tip geometry is formed using controlled grinding angles to create the cutting bevel. For the plastic hub and handle components, we provide DFM feedback on wall thickness and rib placement to ensure structural integrity during physician handling. Mold design includes precise core pins to create the metal-to-plastic interface, ensuring repeatable assembly fit. Surface passivation and cleaning processes remove machining residues before final assembly. Critical dimensions such as cannula straightness, tip angle consistency, and hub concentricity are checked with optical measurement systems.

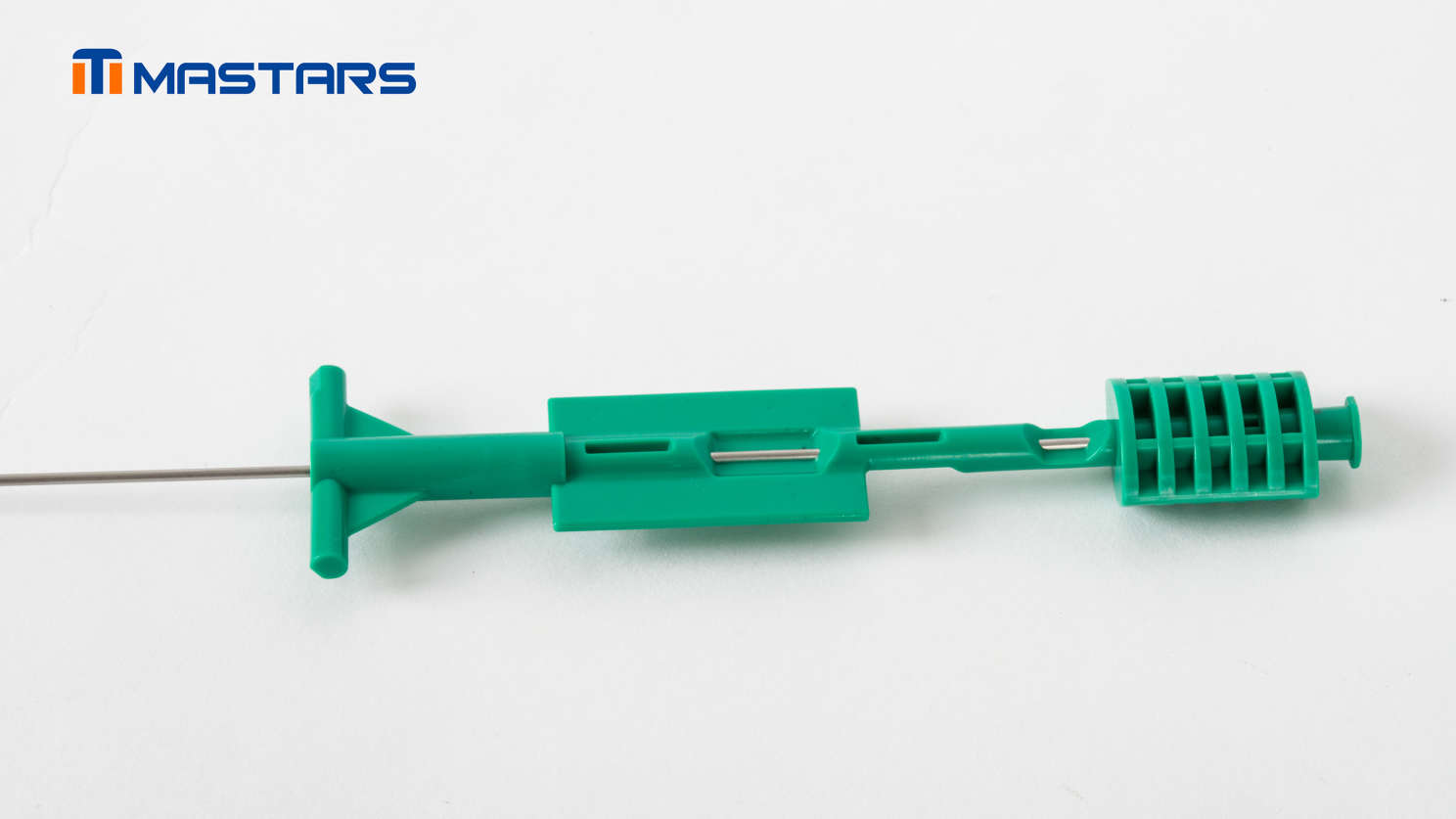

Green polymer biopsy needle handle with integrated hub, featuring a metal cnnula extension and an ergonomic grip structure for physician control.

Delivering Diagnostic Reliability to Medical Device Makers

Client core value: Mastars provides precision-manufactured biopsy needle assemblies that enable consistent tissue sampling and physician confidence.

✅ Sharp, consistent cutting edges for clean tissue penetration

✅ Precise metal-to-plastic fit for reliable assembly performance

✅ Smooth surface finish supporting sterile processing requirements

✅ Repeatable manufacturing for consistent batch quality

✅ Traceable production records for medical device compliance

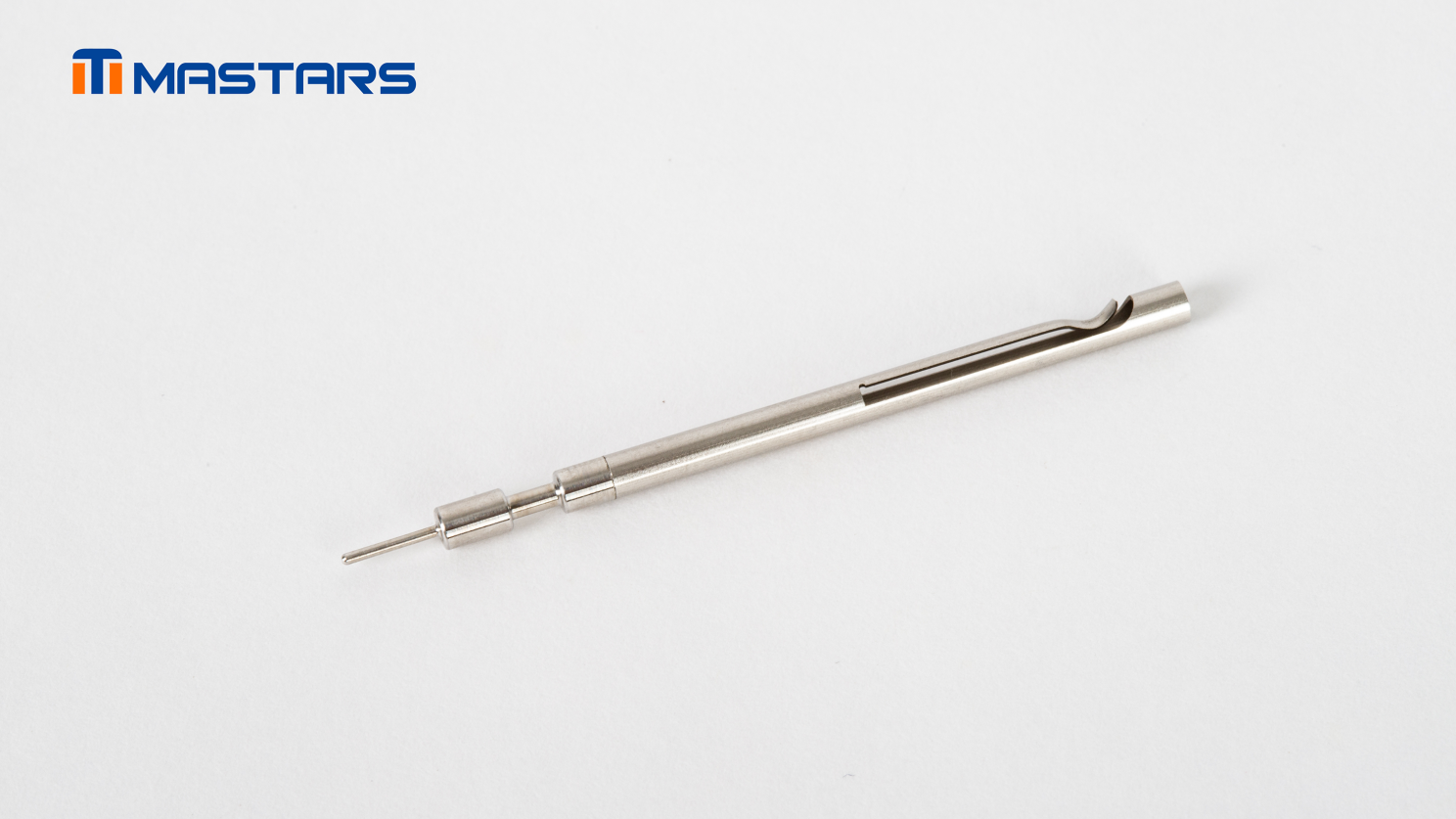

Precision-machined stainless steel biopsy needle cannula with stepped cylindrical structure, longitudinal slot, and polished metallic finish.

Cross-Industry Applications of Precision Medical Manufacturing

This type of precision metal and plastic integration appears beyond biopsy applications. Engineers in multiple medical fields face similar challenges when combining sharp metallic components with ergonomic polymer handles.

- Interventional radiology — biopsy needles and ablation probes

- Orthopedic surgery — bone marrow aspiration needles

- Pain management — spinal injection needles

- Cardiovascular — vascular access needles

- Emergency medicine — tension pneumothorax needles

What precision medical device project are you developing? Share your requirements with Mastars to explore our integrated manufacturing capabilities.
