Multi-Process Integrated Manufacturing for High-Pressure Rigid Tube Assemblies

When Tube Assemblies Face Pressure

How can a high-pressure rigid tube assembly move smoothly from drawing approval to on-site installation while avoiding dimensional drift and leakage risk? The answer often lies not in one single process, but in coordinated control across the entire manufacturing chain. This 316L stainless steel component may look simple on the outside, but we treat it as a multi-process manufacturing project: machining, CNC tube bending, forming, welding, and inspection must be planned as a single, integrated process.

The real pressure often appears after sample approval or during the early order stage. A slight deviation in bending angle can create installation stress; insufficient welded joint strength can lead to sealing risk; and splitting the process across different suppliers can make dimensional responsibility difficult to trace. For high-pressure applications, the goal is not only to make the part “fit,” but to make the assembly repeatable, inspectable, and capable of achieving zero-leakage performance under high-pressure conditions.

Coordinating Process Windows Before Production

For this type of rigid tube assembly, the key risk is the tolerance stack-up between bent tube geometry, machined connector features, welded joints, and sealing interfaces. If bending angle, weld heat input, or datum control is not managed early, pressure testing may reveal failures only after time and cost have already been spent.

Mastars coordinates the critical control points across machining, CNC bending, forming, welding, and inspection. By aligning fixtures, process windows, weld verification, 100% hydrostatic pressure testing, and NDE requirements within one manufacturing route, Mastars helps reduce dimensional variation while supporting high-pressure sealing reliability. That controlled route is what creates measurable client value.

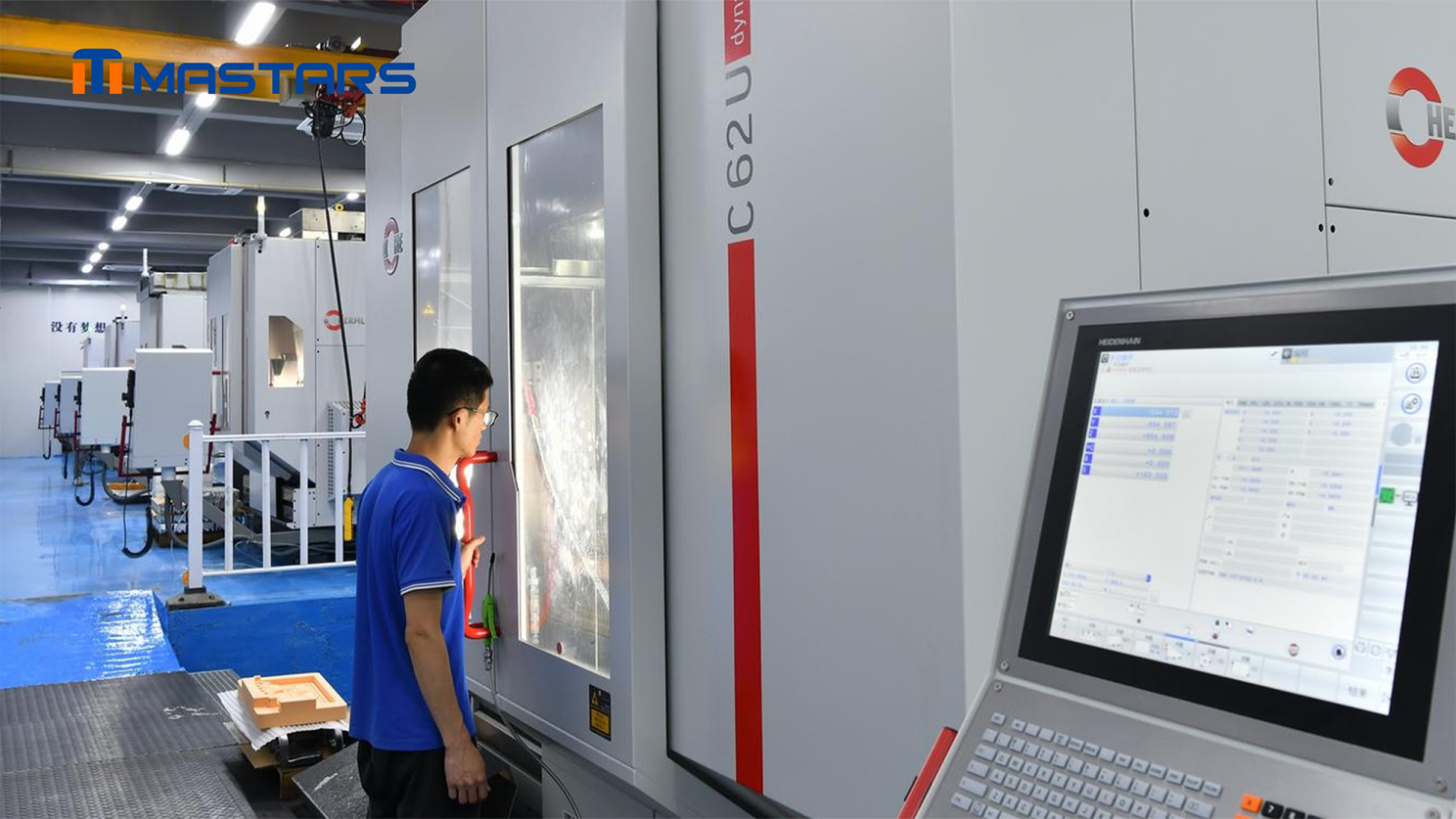

Mastars CNC machining workshop for precision metal parts.

What the Client Gained

Mastars helps customers turn complex high-pressure rigid tube assemblies into manufacturable, verifiable, and repeatable low-volume production parts.

These values are reflected in several specific delivery aspects:

✅ Integrated machining, forming, bending, and welding to reduce dimensional variation

✅ CNC tube-bending angle tolerance controlled within ±0.5° for smoother on-site assembly

✅ 100% hydrostatic pressure testing and NDE to verify welded joint strength and sealing reliability

✅ 316L industrial stainless steel for stronger corrosion resistance in harsh working environments

✅ One-stop machining, forming, and welding route can shorten complex-component procurement lead time by up to 30%

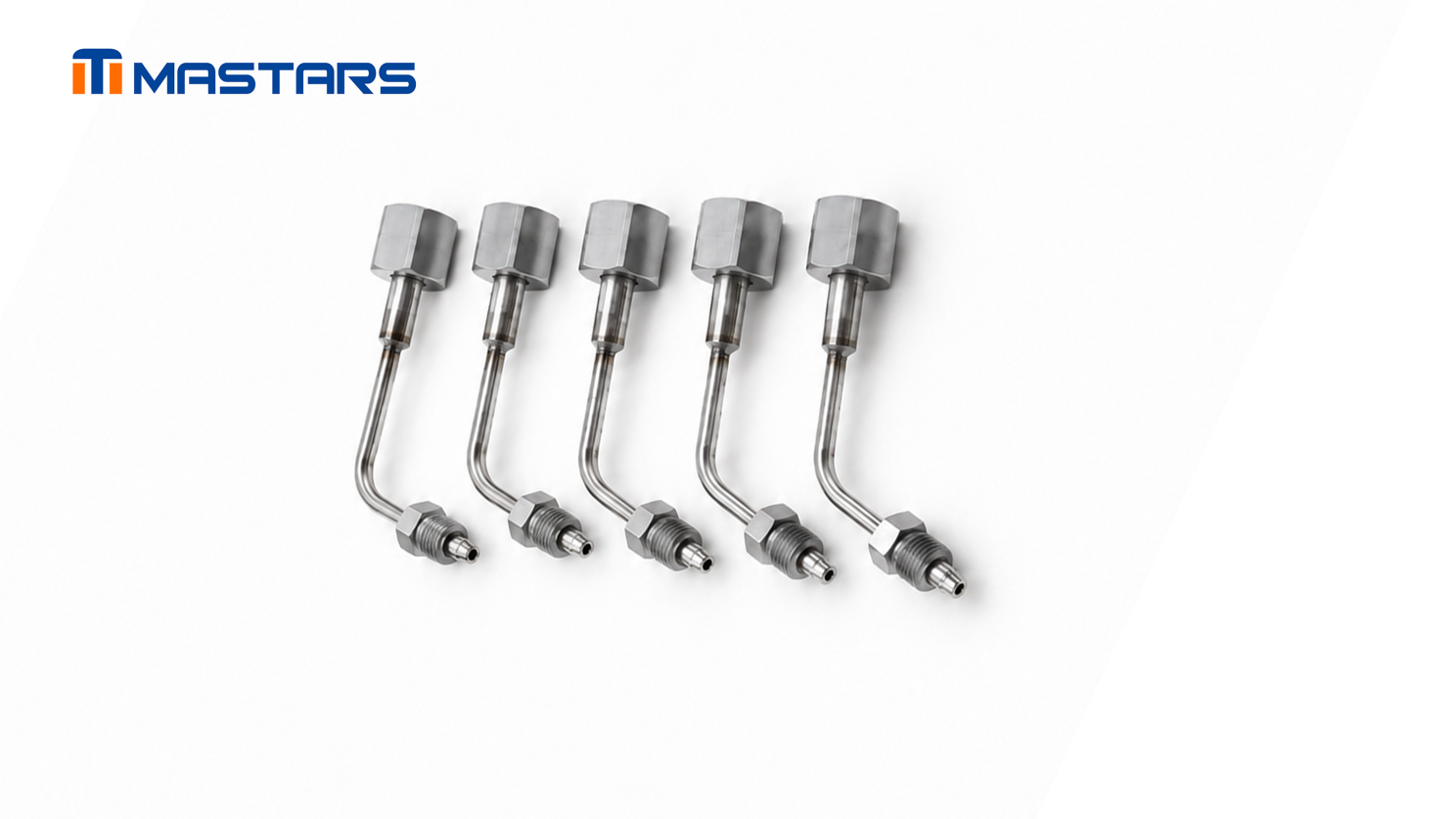

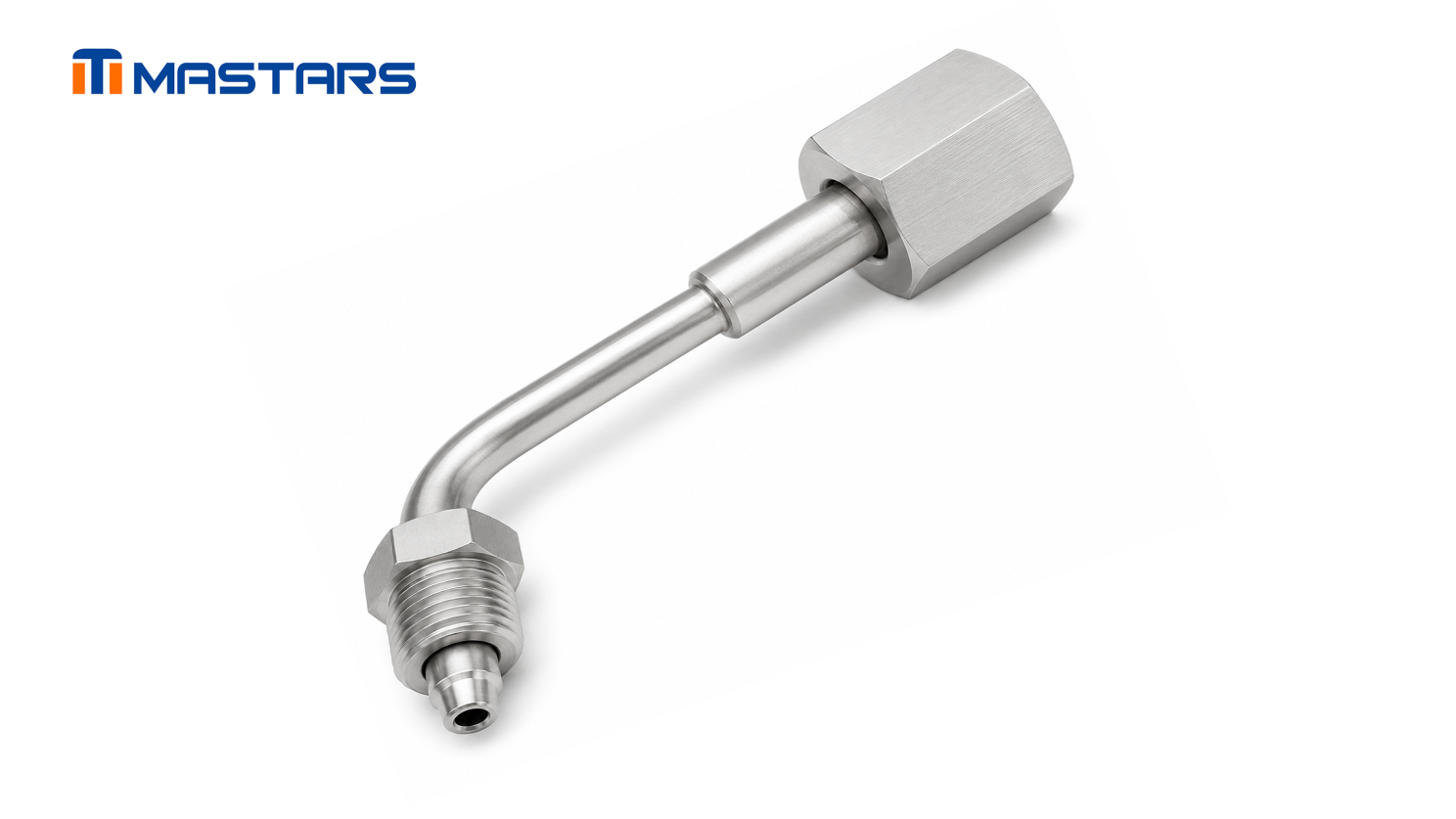

Multi-process tube component ready for production validation

From One Assembly To Wider Uses

The same manufacturing pressure appears in many industries where metal tube assemblies must connect, seal, and perform under demanding operating conditions. When the part requires both precise geometry and verified sealing, separating every process step across different suppliers can increase risk rather than reduce cost.

Therefore, its manufacturing logic applies not only to individual parts, but also to more industry scenarios as follows:

• Industrial Equipment — high-pressure fluid tube assemblies
• Energy Systems — stainless pipeline transition connectors
• Automation Equipment — pneumatic and hydraulic hard-line modules
• Transportation — corrosion-resistant metal tube subassemblies
• Laboratory Equipment — precision stainless gas and fluid lines

Do you have a high-pressure stainless assembly that needs bending angle, welded sealing, and inspection records to be controlled together? Contact Mastars to review your drawing, risk points, and low-volume production path.

Mastars, the most trusted one-stop manufacturing services provider for low-volume production worldwide!
