Stereolithography (SLA) Resin 3D Printing Service
We offer SLA 3D printing services for rapid prototyping, with a variety of thermoset resin materials available.
Get an online quote now.

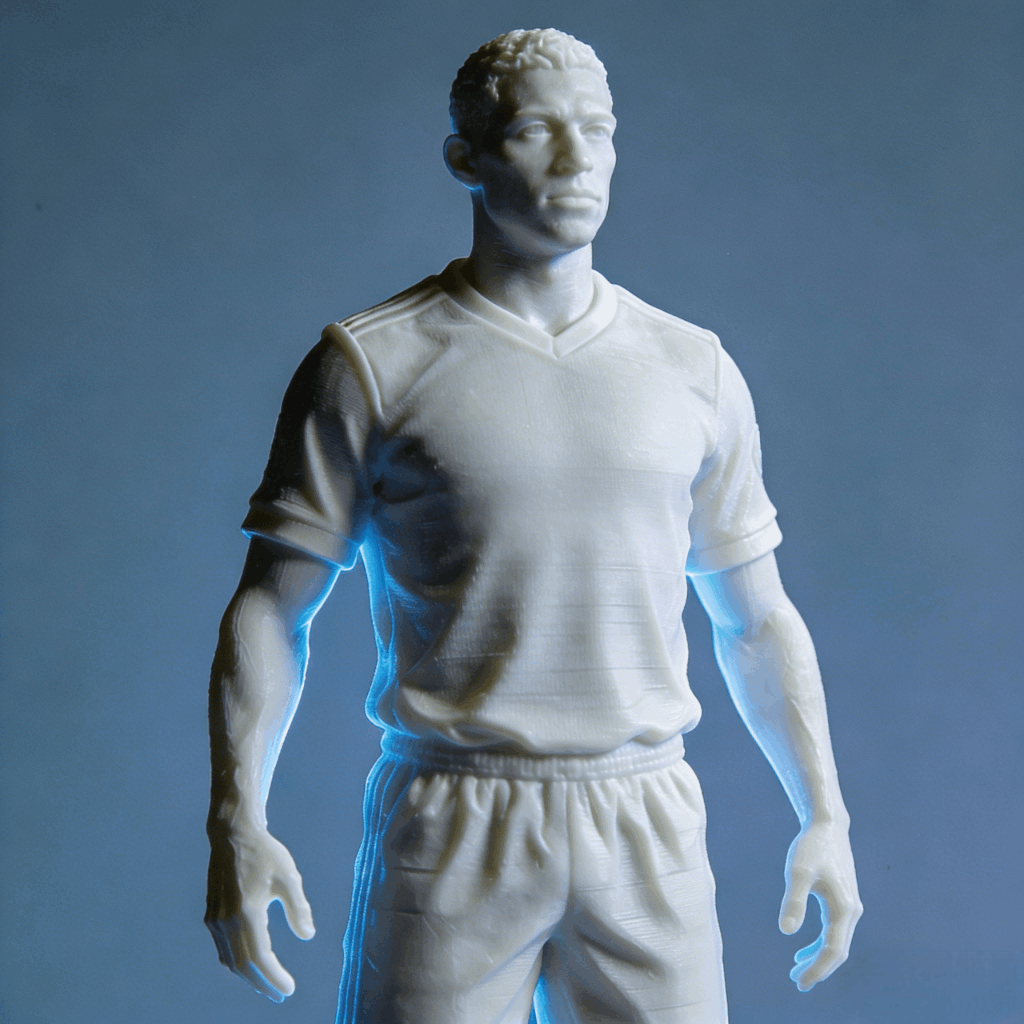

Stereolithography (SLA) is a versatile 3D printing process ideal for creating concept models, cosmetic prototypes, and complex parts with delicate geometries. It uses an additive manufacturing approach, curing thermoset resin with a UV laser to build parts layer by layer. SLA stands out for its wide material selection, ultra-high feature resolution, and the ability to deliver high-quality surface finishes for various application needs.
Design Guidelines and Capabilities
Our basic guidelines for stereolithography include important design considerations to help improve part manufacturability, enhance cosmetic appearance, and reduce overall production time.
| Type | Options | US | Metric |
| Max Part Size | Normal Resolution | 29 in. x 25 in. x 21 in. * | 736mm x 635mm x 533mm |
| High Resolution | 10 in. x 10 in. x 10 in. | 254mm x 254mm x 254mm | |
| Micro Resolution | 5 in. x 5 in. x 2.5 in. | 127mm x 127mm x 63.5mm | |
| Layer Thickness | Normal Resolution | 0.004 in. | 0.1016mm |
| High Resolution | 0.002 in. | 0.0508mm | |
| Micro Resolution | 0.001 in. | 0.0254mm | |
| Minimum Feature Size | Normal Resolution | X-Y: 0.010 in. Z: 0.016 in. | X-Y: 0.254mm Z: 0.406mm |
| High Resolution | X-Y: 0.005 in. Z: 0.016 in. | X-Y: 0.1016mm Z: 0.406mm | |
| Micro Resolution | X-Y: 0.0025 in. Z: 0.008 in. | X-Y: 0.0635mm Z: 0.203mm | |
| Minimum Wall Thickness | Normal Resolution | 0.010 in. | 0.254mm |
| High Resolution | 0.004 in. | 0.1016mm | |
| Micro Resolution | 0.0025 in. | 0.0635mm | |
| Minimum Hole Size | Normal Resolution | 0.025 in. | 0.635mm |
| High Resolution | 0.020 in. | 0.508mm | |
| Micro Resolution | 0.015 in | 0.381mm | |
| Tolerances | For well-designed parts, tolerances in the X/Y dimension of ±0.002 in. (0.05mm) for first inch plus 0.1% of nominal length. (0.001mm/mm), and Z dimension tolerances of ±0.005 in. for first inch plus 0.1% of nominal length, can typically be achieved. Note that tolerances may change depending on part geometry. | ||
Our Ideas Have Helped Clients Bring Hundreds Of Products To Market

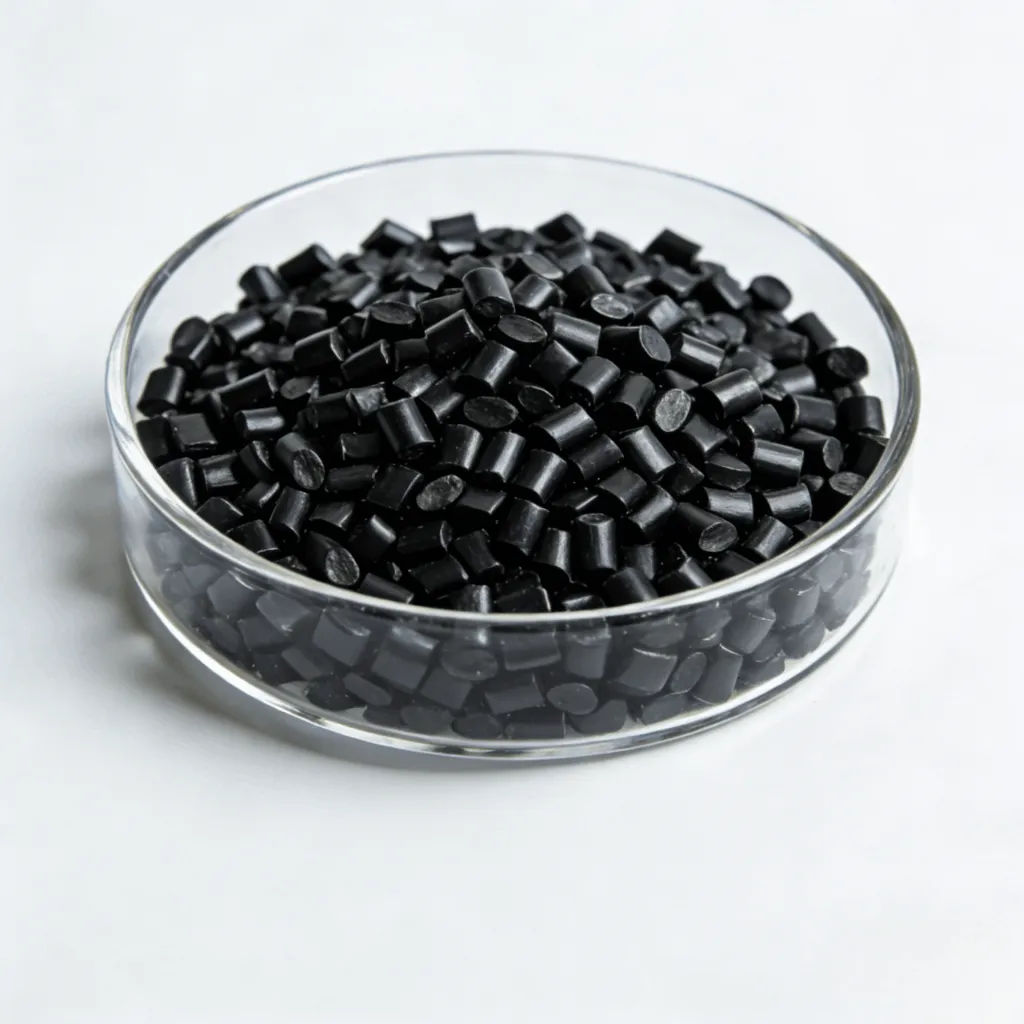

SLA Material Options

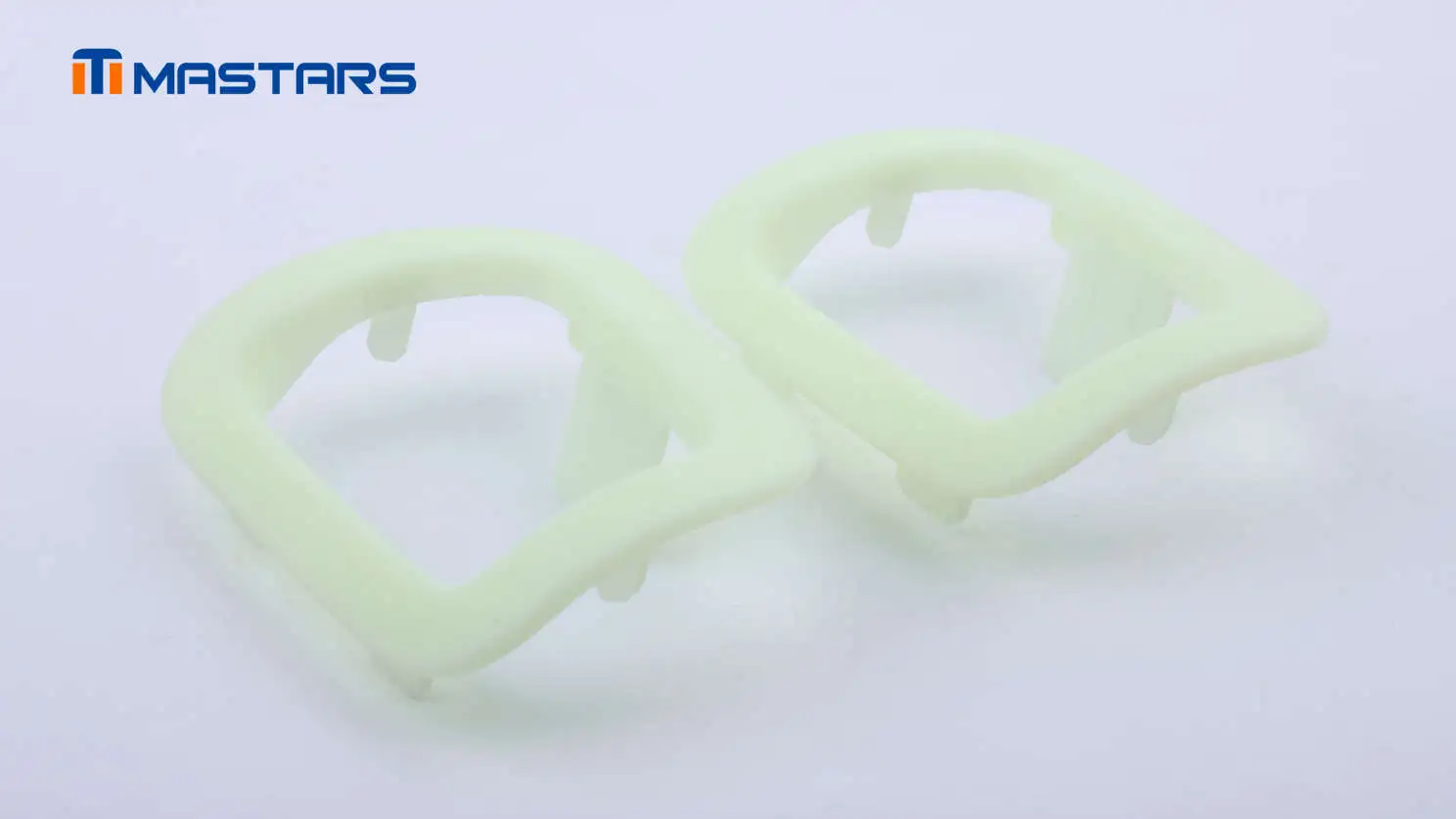

✔️ ABS-Like White (Accura Xtreme White 200)
✔️ ABS-Like Gray (Accura Xtreme Gray)
✔️ ABS-Like Black (Accura 7820)
✔️ ABS-Like Translucent/Clear (WaterShed XC 11122)
✔️ PP-Like Translucent White (Somos 9120)
✔️ PC-Like Advanced High Temp (Accura 5530)
✔️ PC-Like Translucent/Clear (Accura 60)
✔️ Ceramic-Like Advanced HighTemp (PerFORM)
✔️ True silicone
Additional Finishing Options
Custom finishing is a mix of science, technology, and fine art that can transform a part to your exact specifications. Finishes include:
✔️ Soft-touch paint
✔️ Clear part finishing
✔️ Paint finishes
✔️ Masking
✔️ Color matching
✔️ Decals/graphic
✔️ Texture
Why Use SLA?
As an advanced additive manufacturing process, Stereolithography (SLA) excels at producing 3D printed parts with miniature features, tight dimensional tolerances, and uniformly smooth surface quality.

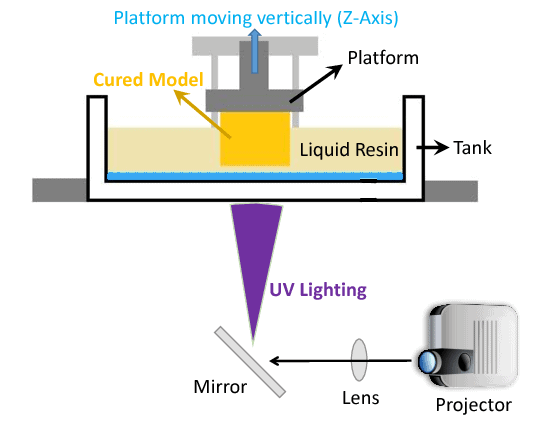

How Does SLA 3D Printing Work?
The SLA machine first traces support structures, then the part itself, using a UV laser on liquid thermoset resin. After each layer cures, the platform lowers, a recoating bar applies new resin, and the cycle repeats until printing finishes.
Newly printed parts are cleaned with solvents in a lab, then supports are manually removed. Parts undergo UV curing to solidify surfaces, followed by custom finishing. To avoid degradation, SLA parts should be used with minimal UV exposure and humidity.
