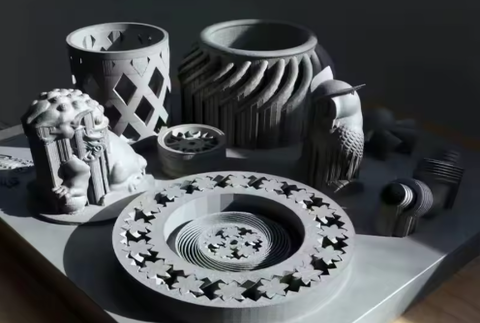

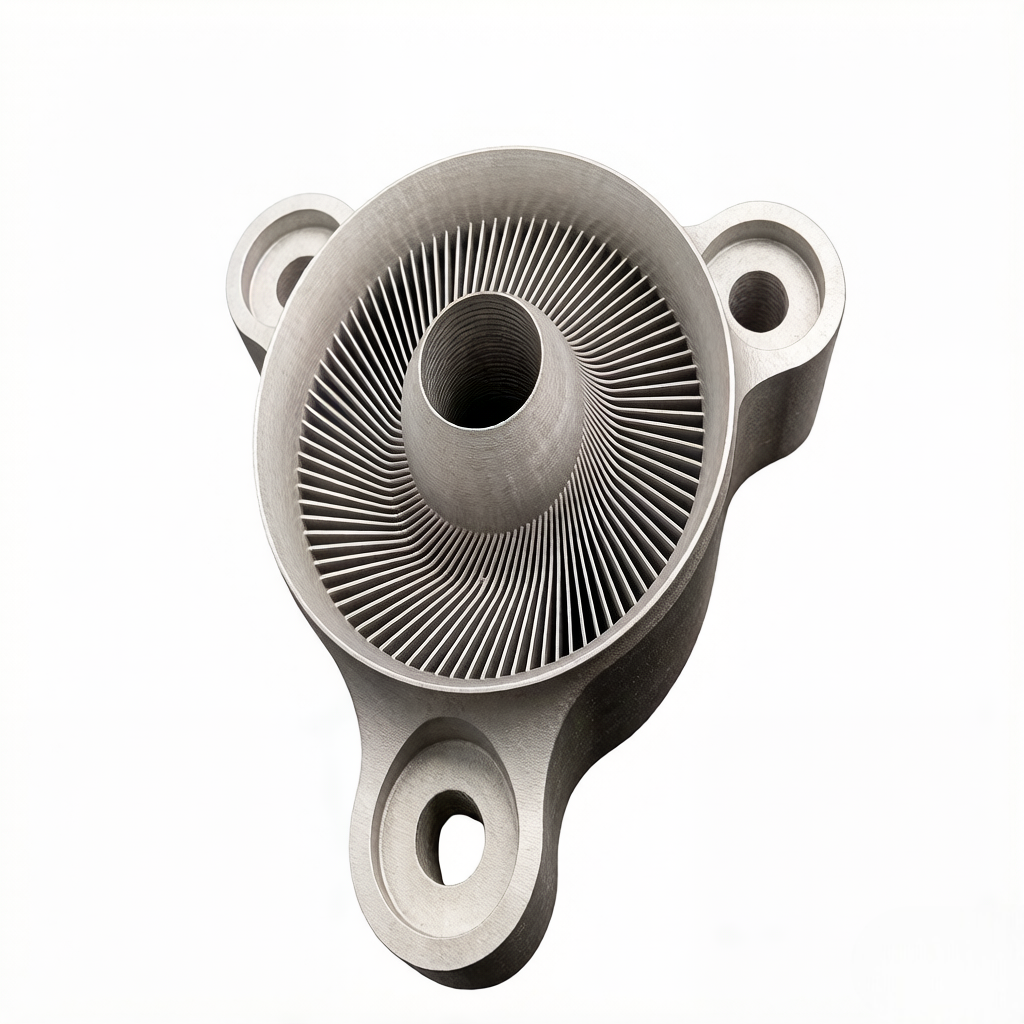

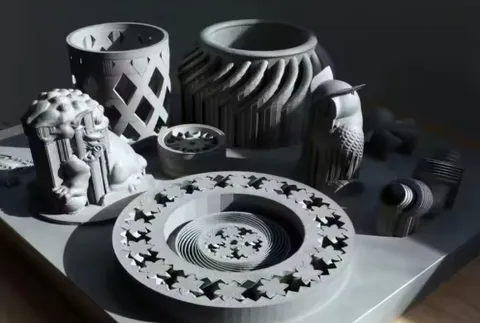

Metal 3D Printing Service
with Mastars
Premium metal 3D printing for prototypes & production parts.
Get an online quote now.
Direct metal laser sintering (DMLS) is an advanced industrial metal 3D printing process, capable of producing fully functional metal prototypes and production parts in 7 days or less. It streamlines manufacturing, offering rapid turnaround for urgent prototyping and production needs.
Compatible with a variety of metals, DMLS creates final parts with reliable performance. These components meet the requirements for direct end-use applications across multiple industries.
Capabilities
The fundamental guidelines we have formulated for metal 3D printing encompass important design-related factors, all aimed at boosting part manufacturability, refining cosmetic appearance, and reducing the total production cycle time effectively.
| Type | Options | US | Metric |
| Max Dimensions | Normal Resolution | 9.6 in. x 9.6 in. x 13.0 in. | 245mm x 245mm x 330mm |
| Normal Resolution (X Line*) | 31.5 in. x 15.7 in. x 19.7 in. | 400mm x 800mm x 500mm | |
| High Resolution | 3.5 in. x 3.5 in. x 2.7 in. Al: 3.8 in. x 3.8 in. x 3.7 in. | 88mm x 88mm x 70mm Al: 98mm x 98mm x 94mm | |
| Layer Thickness | Normal Resolution | 0.0012 in. | 30 microns |
| Normal Resolution (X Line*) | Inconel: 0.00236 in. Aluminum: 0.00157 in. | Inconel: 60 microns Aluminum: 40 microns | |
| High Resolution | 0.00079 in. | 20 microns | |
| Minimum Feature Size | Normal Resolution | 0.015 in (0.030 in. for Aluminum) | 0.381mm (0.762mm for Aluminum) |
| Normal Resolution (X Line*) | 0.015 in. (0.030 in. for Aluminum) | 0.381mm (0.762mm for Aluminum) | |
| High Resolution | 0.006 in. Aluminum: 0.015 in. | .153mm Aluminum: 0.381mm | |
| Tolerances | For well-designed parts, tolerances in the X/Y dimension of ±0.003 in. (0.075mm) for first inch plus 0.1% of nominal length. (0.001mm/mm), and Z dimension tolerances of ±0.006 in. for first inch plus 0.1% of nominal length, can typically be achieved. Note that tolerances may change depending on part geometry. | ||
Our Ideas Have Helped Clients Bring Hundreds Of Products To Market

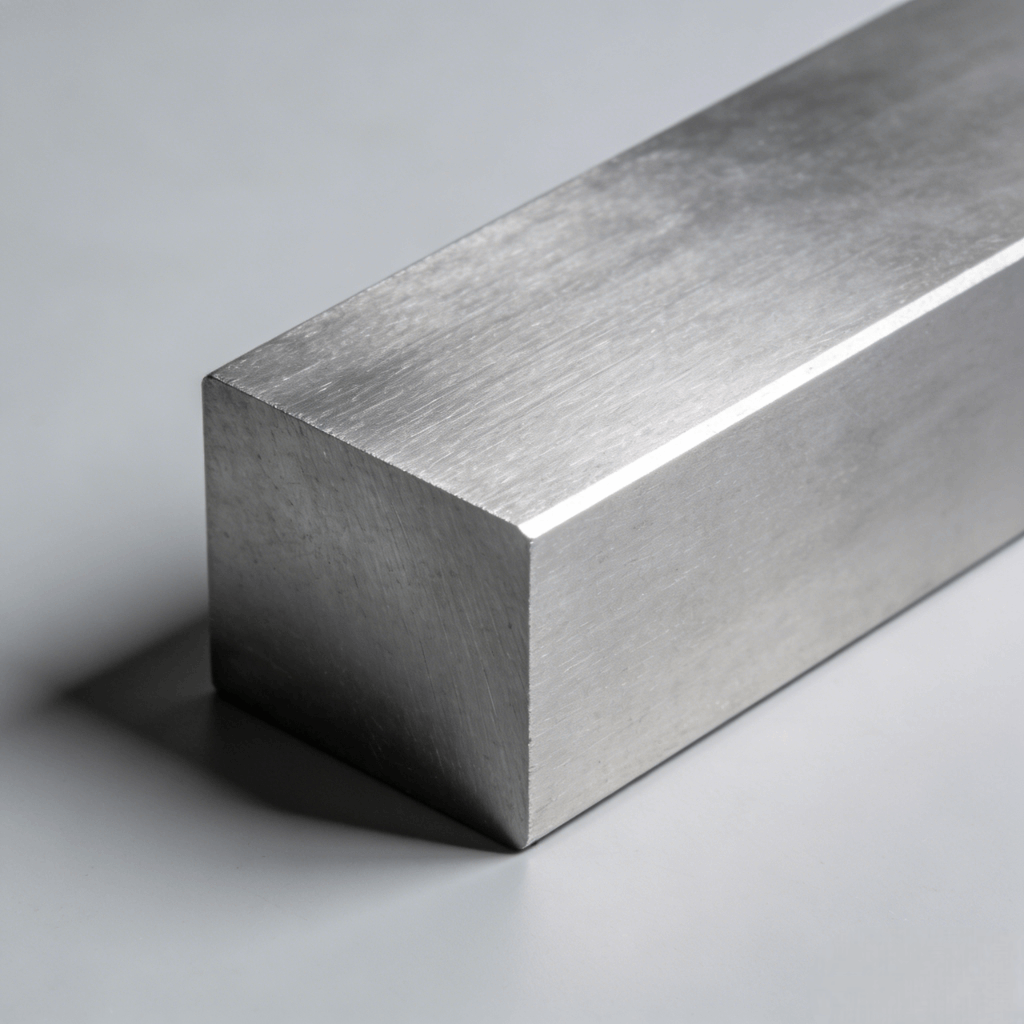

Metal 3D Printing Material Options
✔️ Stainless Steel (17-4 PH)
✔️ Stainless Steel (316L)
✔️ Aluminum (AlSi10Mg)
✔️ Inconel 718
✔️ Cobalt Chrome (Co28Cr6Mo)
✔️ Titanium (Ti6Al4V)

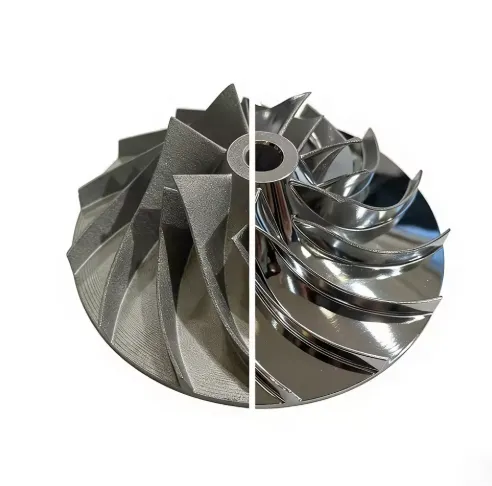

Post-Processing Capabilities for Metal 3D-Printed Parts
✔️ Surface Finishing
· 3- and 5-axis milling ·Turning ·Custom Finishing (·Brushed ·Satin ·Polished) ·Passivation ·Wire EDM ·Tapping and reaming
✔️ Heat Treatments
·Stress relief ·NADCAP heat treatment ·Hot isostatic pressing (HIP) ·Solution annealing ·Aging
✔️ Mechanical Testing
·Tensile ·Rockwell Hardness
✔️ Powder Analysis & Material
·Traceability ·Chemistry ·Particle size and distribution analysis
How Does Metal 3D Printing Work?
The DMLS machine sinters layers sequentially with a laser targeting metallic powder—first support structures to the base plate, then the part. After each powder cross-section is micro-welded, the platform lowers, a recoater blade deposits new powder into the inert chamber, and the cycle repeats until fabrication ends.
Post-build, parts are manually brushed to remove loose powder, then heat-treated while fixtured to relieve stresses. They are removed from the platform, supports are detached, and finished with bead blasting and deburring as needed. Final DMLS parts achieve nearly 100% density.
